Technical Specifications
| Parameter | Specification |
|---|---|

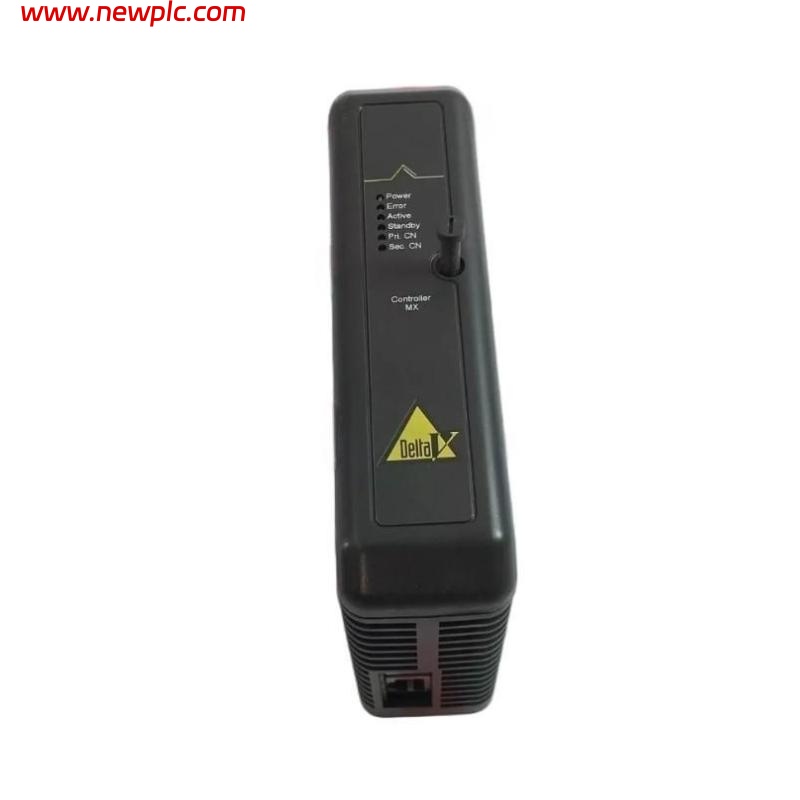

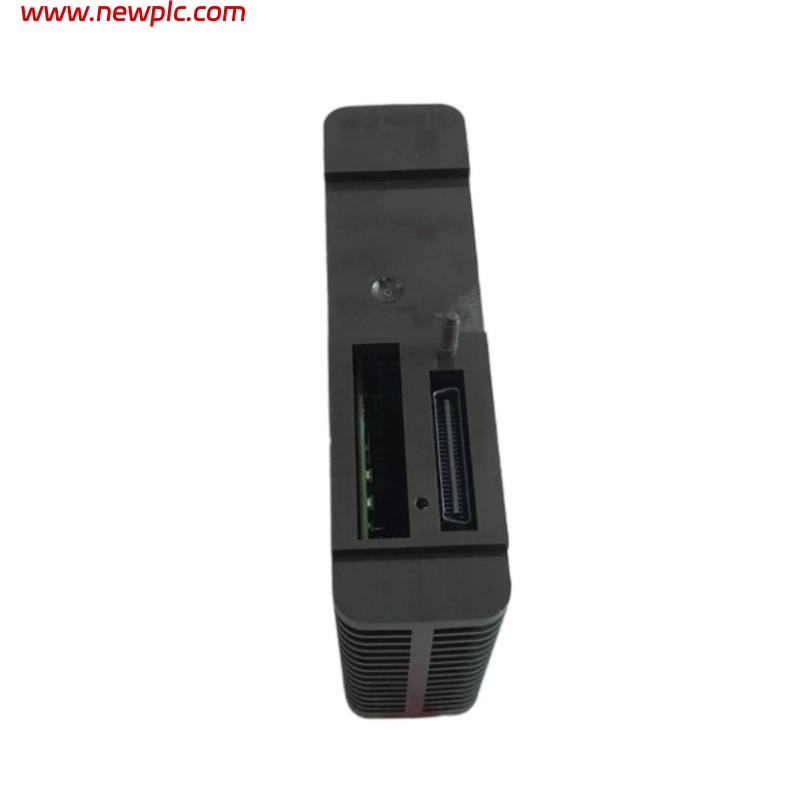

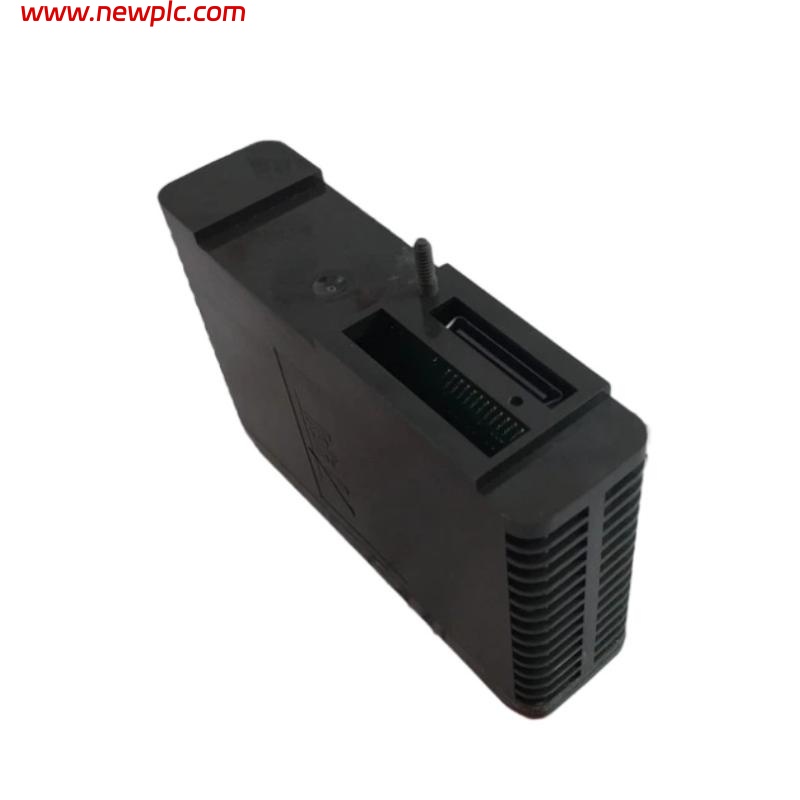

| Model | Emerson VE3007 KJ2005X1-BA1 |
| Product Type | MX Controller |
| Brand | Emerson |
| Power Supply Voltage | 5 VDC |
| Power Consumption | 5 W typical / 7 W maximum |
| Current Requirement | 1.4 A typical |
| Memory Capacity | 96 MB user memory |
| Processor Type | High-performance embedded processor for real-time control |
| Communication Interface | 8-pin RJ-45 Ethernet connector |
| Network Protocols | DeltaV proprietary LocalBus and Ethernet |
| Input/Output Handling | Coordinates I/O data via connected carriers and I/O cards |
| System Redundancy | Supports redundant controller configurations |
| Firmware Upgradability | Field-upgradable via DeltaV system management software |
| Diagnostics | Built-in self-diagnostics and watchdog monitoring |
| LED Indicators | Status, Power, Network, and Diagnostic LEDs |
| Operating Temperature Range | -40°C to +60°C |
| Storage Temperature Range | -40°C to +85°C |
| Humidity Range | 5% to 95% non-condensing |
| EMC/EMI Compliance | Meets IEC 61000-6-2, IEC 61000-6-4 standards |
| Shock and Vibration Resistance | IEC 60068-2-6, IEC 60068-2-27 compliant |
| Mounting Type | Carrier or DIN rail mounting |
| Housing Material | Industrial-grade thermoplastic |
| Dimensions | 160 × 90 × 80 mm |
| Weight | 0.65 kg |
FAQ
FAQ
Q1: What is the main function of the VE3007 KJ2005X1-BA1 MX Controller?
A1: It serves as the central processing unit for Emerson DeltaV systems, managing control strategies, I/O communications, and process data execution in real-time.
Q2: How much user memory is available in this controller?
A2: The MX Controller provides 96 MB of user memory, suitable for handling complex control configurations and data logging.
Q3: What type of communication interface does the controller use?
A3: It features an 8-pin RJ-45 Ethernet connector for high-speed data exchange across the DeltaV control network.
Q4: Can this controller operate in harsh industrial environments?
A4: Yes, it is designed for rugged conditions, with an operating temperature range from -40°C to +60°C and full EMC compliance.
Q5: Does the VE3007 support system redundancy?
A5: Yes, the controller supports redundant operation for fault-tolerant control system configurations to ensure continuous availability.
Q6: How does the controller indicate its operational status?
A6: LED indicators on the front panel display power, communication, diagnostic, and system status information for quick visual reference.
Q7: What are the power requirements for the MX Controller?
A7: It operates on 5 VDC with a typical current draw of 1.4 A and a power consumption of 5 W typical, 7 W maximum.
Q8: Can the firmware be upgraded in the field?
A8: Yes, firmware updates can be performed via the DeltaV system interface, allowing for feature enhancements and performance improvements without removal from service.
