Technical Specifications
| Item | Specification |
|---|---|

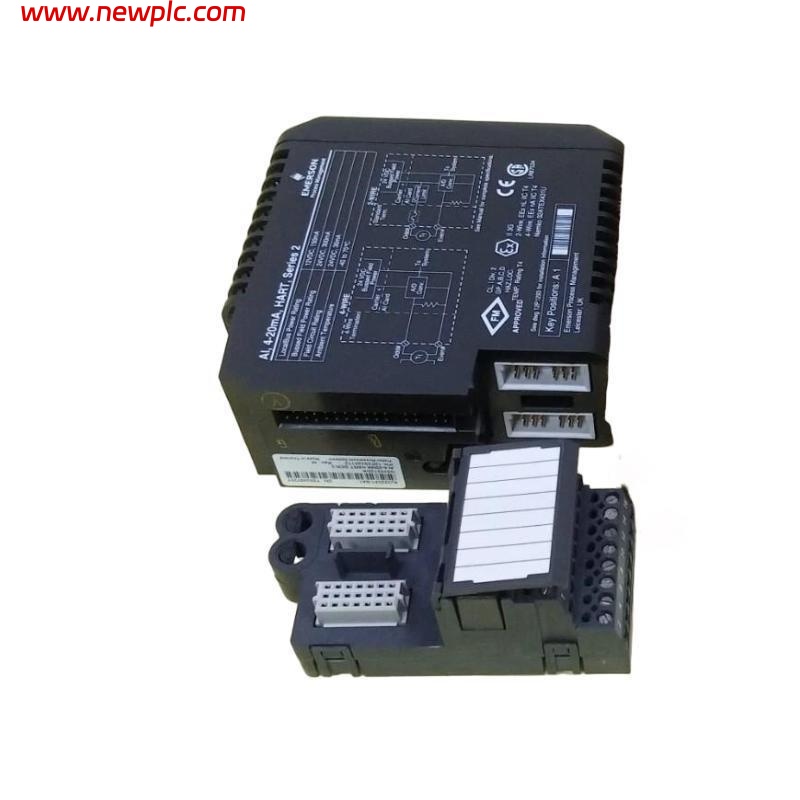

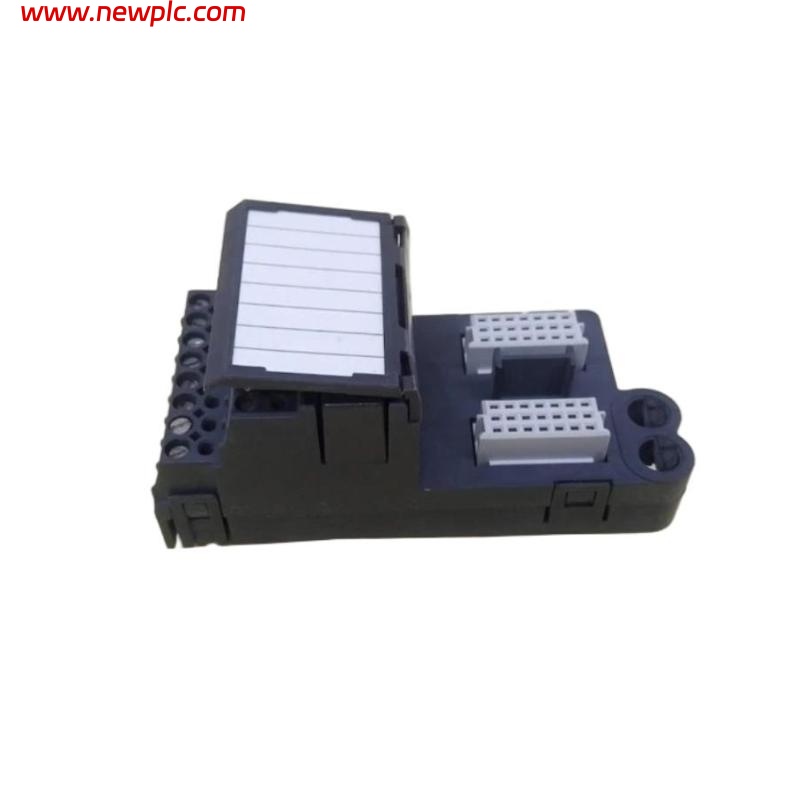

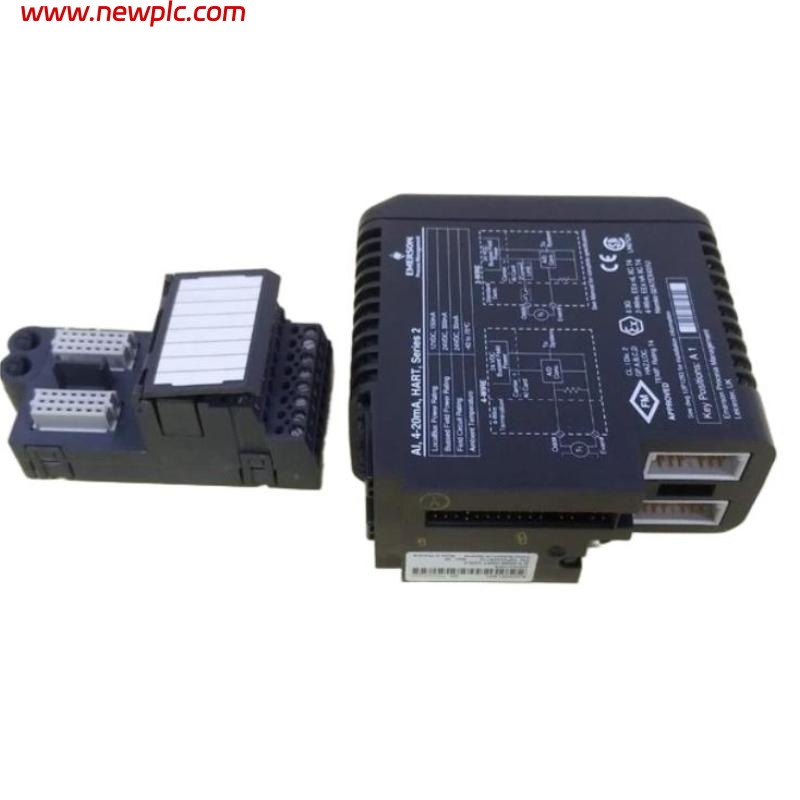

| Model | Emerson VE4003S2B1 (KJ3222X1‑BA1) |
| Product Name | Analog Input Card |
| Series | VE4000 Series |
| Channels | 8 channels |
| Signal Type | 4‑20 mA analog, HART compatible |
| Accuracy | ±0.1% |
| Resolution | 12-bit |
| Power Supply | Local bus 12 V DC 150 mA |
| Operating Temperature | –40°C to +70°C |
| Storage Temperature | –40°C to +85°C |
| Humidity Range | 5% to 95% RH (non-condensing) |
| Mounting | Insert into DeltaV I/O rack or carrier |
| Dimensions | 107 x 41 x 105 mm |
| Weight | 0.18 kg |
FAQ
FAQ
Q1: What is the main function of this module?
A1: It is used to acquire 4‑20 mA analog signals with HART support for DeltaV control systems.
Q2: How many input channels does it have?
A2: It supports 8 analog input channels.
Q3: What types of signals can it acquire?
A3: 4‑20 mA analog signals and HART-compatible devices.
Q4: What are the dimensions and weight of the module?
A4: Dimensions are 107 x 41 x 105 mm, weight is approximately 0.18 kg.
Q5: What is the operating temperature range?
A5: –40°C to +70°C.
Q6: Does it support hot-swapping?
A6: No, installation or replacement requires power off.
Q7: How is the module installed?
A7: Inserted into DeltaV I/O carrier or rack, connected via terminal blocks and backplane.
Q8: What should be considered when selecting this module?
A8: Check channel type (2-wire/4-wire), HART compatibility, system version, and terminal block configuration.
