Technical Specifications
| Parameter | Specification |
|---|---|

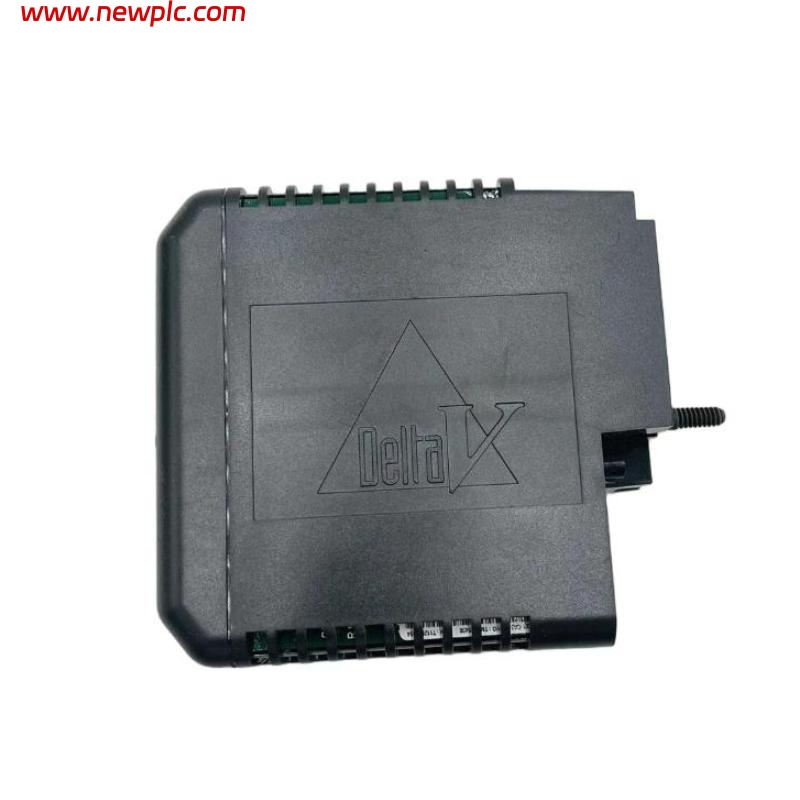

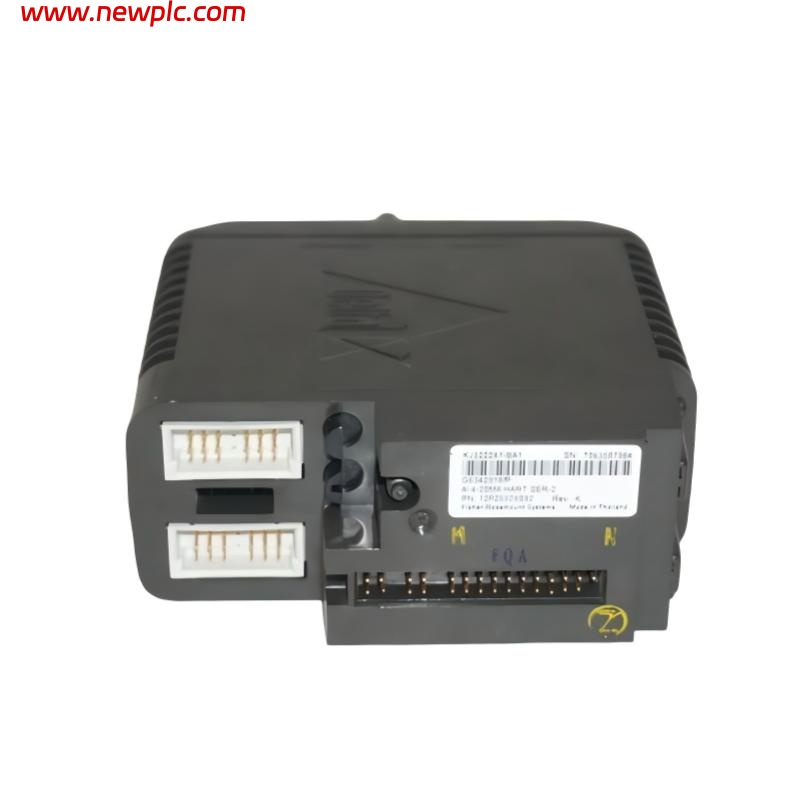

| Model | Emerson VE4003S2B3 KJ3222X1-BA1 + KJ4001X1-CC1 |
| Product Type | Analog Input Module with Terminal Blocks |
| Function | Acquires analog signals from field instruments and transmits to the control system |
| Input Channels | 8 isolated analog input channels |
| Signal Types Supported | 4–20 mA, 1–5 VDC, and other standard analog signal formats |
| Power Supply Voltage | 24 VDC nominal |
| Input Isolation | Channel-to-channel and channel-to-ground galvanic isolation |
| Accuracy | ±0.1% of full-scale typical |
| Communication Interface | DeltaV system fieldbus compatible |
| Operating Temperature | -40°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Dimensions | 107 × 41 × 105 mm |
| Weight | 0.36 kg |
| Mounting Type | Mounted on DeltaV carrier rail |
| Application Environment | Process control, oil & gas, chemical, and power generation systems |
FAQ
FAQ
Q1: What is the primary function of the Emerson VE4003S2B3 module?
A1: The module is designed to receive analog input signals from field devices, convert them to digital form, and communicate them to the DeltaV control system for process monitoring and control.
Q2: How many input channels does this module provide?
A2: It features 8 isolated analog input channels, allowing simultaneous monitoring of multiple process variables such as temperature, pressure, or flow.
Q3: What type of signals can the module accept?
A3: The VE4003S2B3 supports standard analog signal ranges such as 4–20 mA and 1–5 VDC, ensuring compatibility with most industrial transmitters.
Q4: Is the module compatible with the Emerson DeltaV system?
A4: Yes, it is specifically designed for full integration with Emerson’s DeltaV Distributed Control System, ensuring seamless configuration and diagnostics.
Q5: What kind of isolation does the module provide?
A5: Each channel is galvanically isolated from others and from system ground, enhancing reliability and minimizing signal interference.
Q6: How is the module connected to the DeltaV system?
A6: The module connects through the KJ4001X1-CC1 terminal block, which provides secure wiring points and simplifies installation and maintenance.
Q7: What measures are taken to ensure signal accuracy and stability?
A7: The module uses high-precision analog-to-digital converters and noise suppression circuitry to maintain signal integrity under various operating conditions.
Q8: In what applications is this module most commonly used?
A8: It is widely used in process automation environments such as refineries, chemical plants, and power stations, where accurate and reliable analog input acquisition is essential.
