Technical Specifications
| Item | Specification |
|---|---|
| Model | VE4003S2B3 (KJ3222X1‑BA1) |

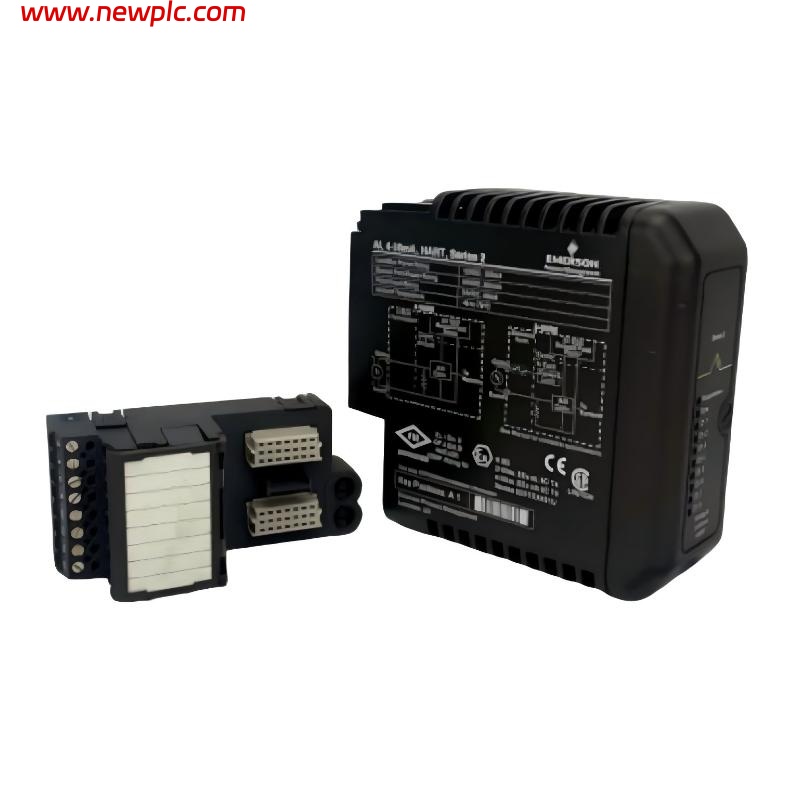

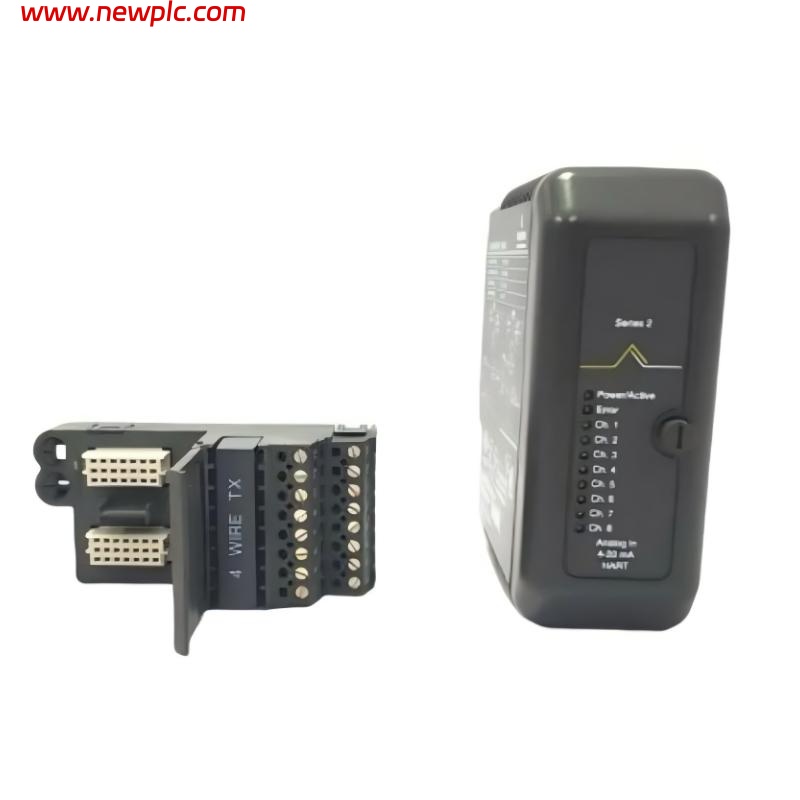

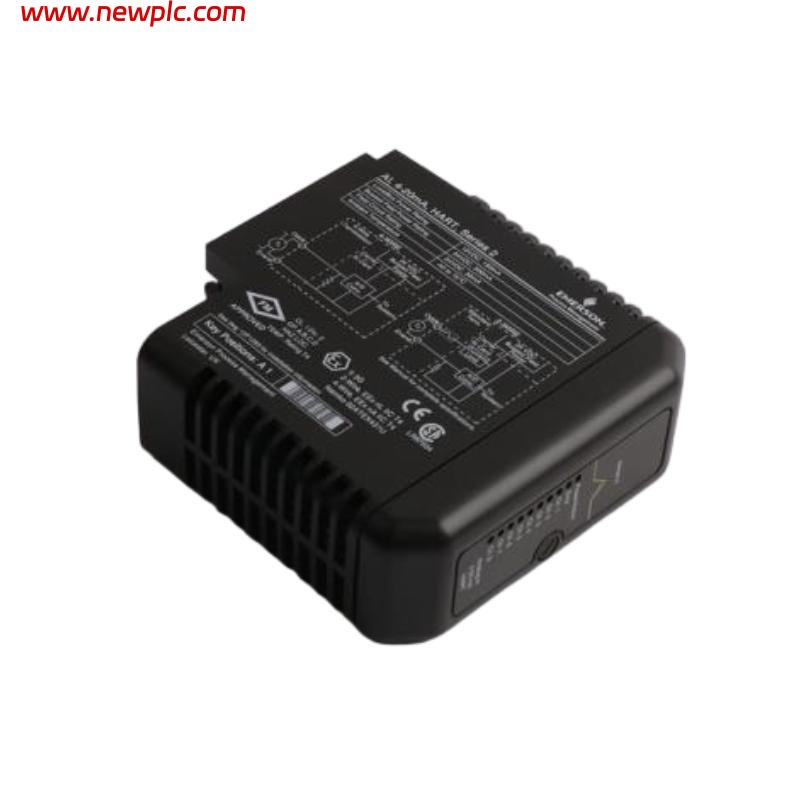

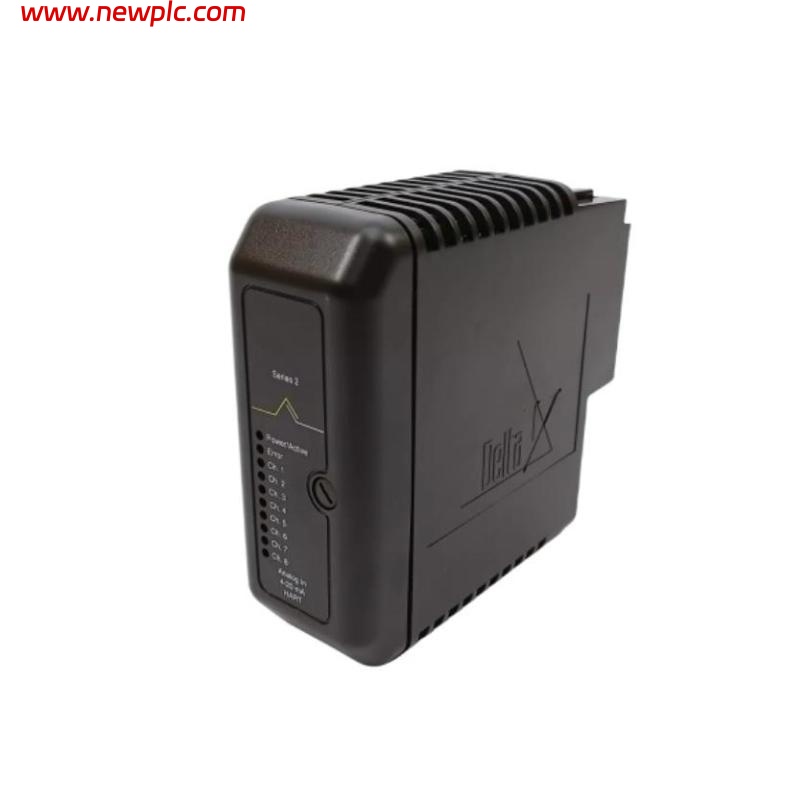

| Product Name | Analog Input Card |
| Manufacturer | Emerson |
| Series | DeltaV I/O Modules Series 2 |
| Channels | 8 channels (4‑20 mA, HART enabled) |
| Signal Type | 4‑20 mA analog input, supports HART protocol |
| Accuracy | ±0.1% (typical) |
| Power Supply | Local backplane power |
| Operating Temperature Range | –40 °C to +70 °C |
| Storage Temperature Range | –40 °C to +85 °C |
| Humidity Range | 5% to 95% RH (non‑condensing) |
| Mounting | Rack‑insert type installation |
| Dimensions | 107 x 41 x 105 mm |
| Weight | 0.36 kg |
FAQ
FAQ
Q1: What is the main function of this module?
A1: It collects 4‑20 mA analog signals and supports HART communication, enabling input of process variables such as temperature, pressure, and flow.
Q2: How many input channels does the module support?
A2: It supports 8 analog input channels.
Q3: What signal types and protocols are supported?
A3: It supports 4‑20 mA analog signals and works with HART‑protocol enabled smart sensors.
Q4: What are the dimensions and weight of the module?
A4: The dimensions are 107 x 41 x 105 mm, and the weight is approximately 0.36 kg.
Q5: What is the operating temperature range?
A5: –40 °C to +70 °C.
Q6: How is the module mounted?
A6: Installed via rack‑insert into a DeltaV I/O carrier or rack.
Q7: Does it support hot‑swapping?
A7: Hot‑swapping is not recommended while powered; installation or replacement should be done with power off.
Q8: What should be considered when selecting this module?
A8: Ensure compatibility with the system (series/version), matching channel types (4‑20 mA, 2‑wire/4‑wire), HART support requirements, and the appropriate termination block type.
