Technical Specifications
| Item | Specification |
|---|---|
| Model | VE4003S7B1 |

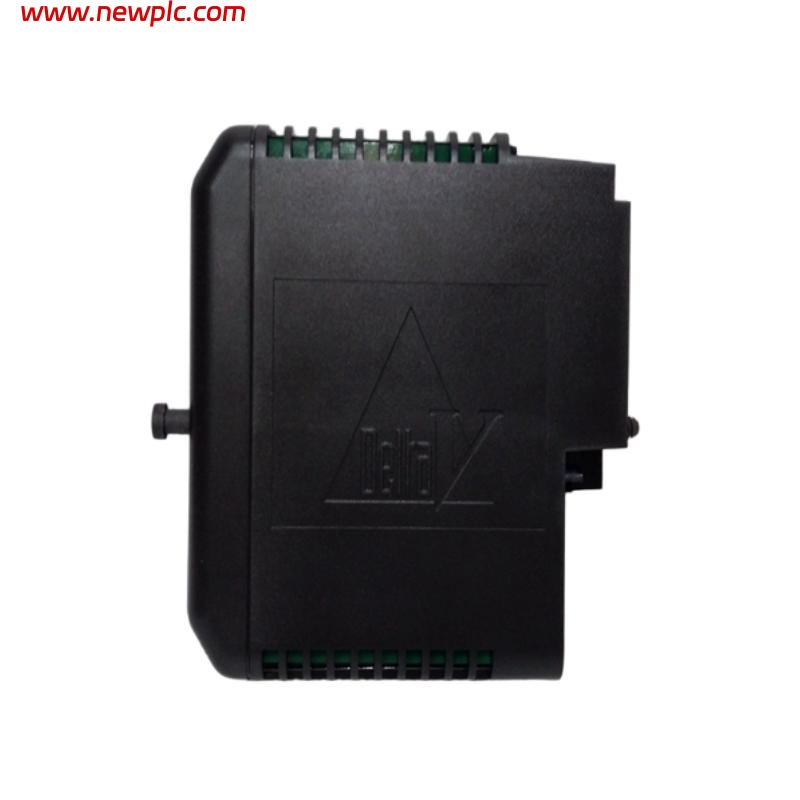

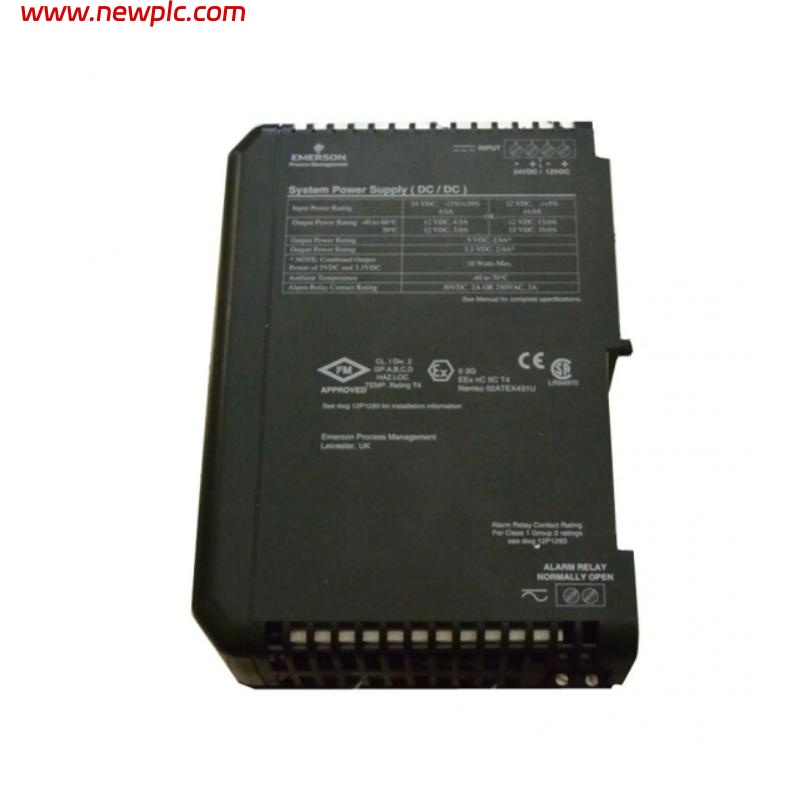

| Product Name | Power Module |
| Manufacturer | Emerson |
| Series | DeltaV M‑Series |
| Output Type | DC power output for DeltaV I/O modules |
| Output Voltage | +5 V / +24 V DC (depending on rack configuration) |
| Output Current | Max 4 A (5 V channel), Max 2 A (24 V channel) |
| Input Voltage | 48 V DC (typical rack supply) |
| Efficiency | ≥90% (typical) |
| Operating Temperature Range | –40 °C to +70 °C |
| Storage Temperature Range | –40 °C to +85 °C |
| Humidity Range | 5% to 95% RH (non‑condensing) |
| Mounting | Insert-type rack installation |
| Dimensions | 107 x 41 x 105 mm |
| Weight | 0.36 kg |
FAQ
FAQ
Q1: What is the main function of this module?
A1: Provides stable DC power output for DeltaV M‑Series I/O modules.
Q2: What output voltages are provided?
A2: +5 V and +24 V DC, depending on the rack configuration.
Q3: What is the maximum output current?
A3: Max 4 A for the 5 V channel, max 2 A for the 24 V channel.
Q4: What are the module’s dimensions and weight?
A4: Dimensions 107 x 41 x 105 mm, weight approx. 0.36 kg.
Q5: What is the operating temperature range?
A5: –40 °C to +70 °C.
Q6: Does the module support hot-swapping?
A6: Hot-swapping is not recommended; replace only with power off.
Q7: How is the module installed?
A7: Inserted into a DeltaV I/O rack.
Q8: What should be considered when selecting this module?
A8: Confirm rack supply voltage, required output voltage/current, and system compatibility.
