Technical Specifications
| Parameter Category | Specification |
|---|---|

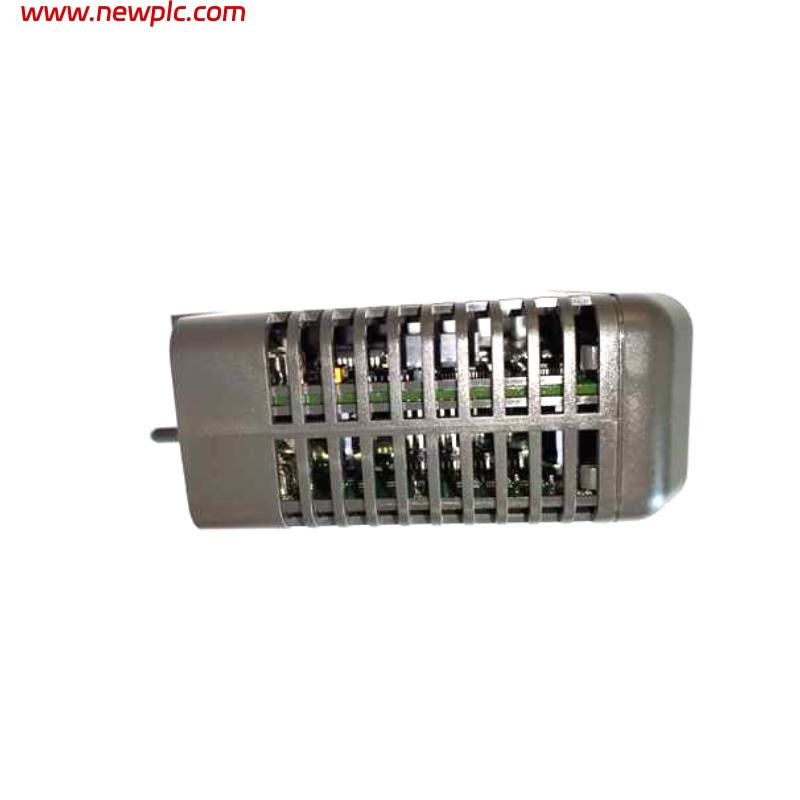

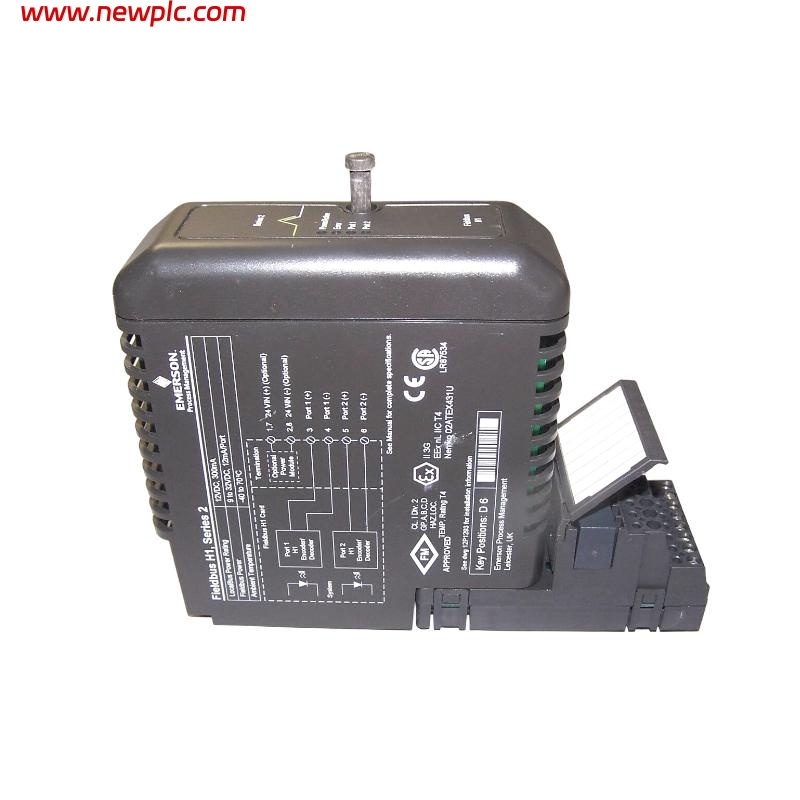

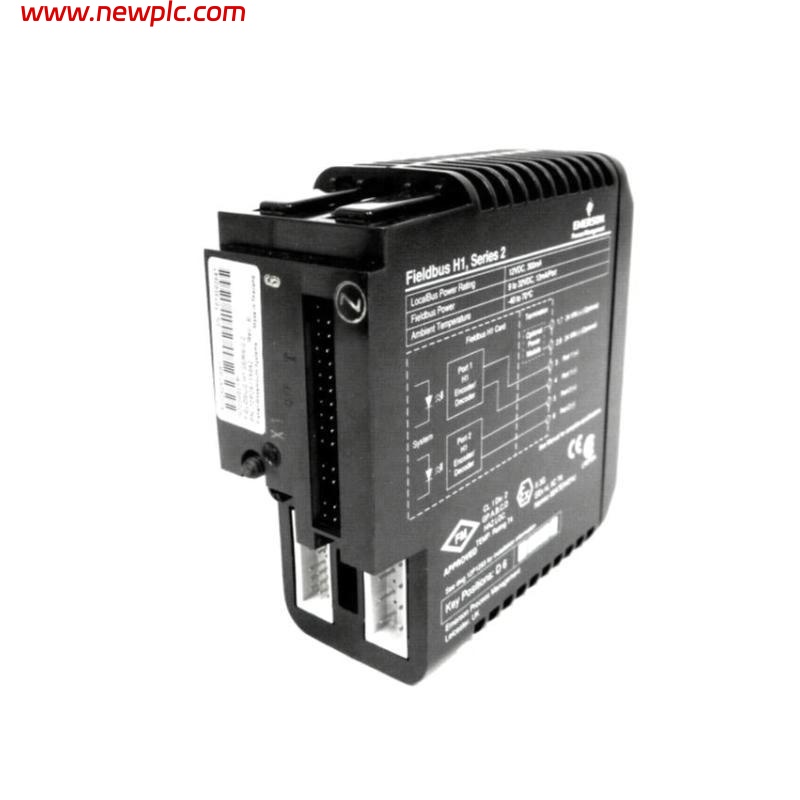

| Product Model | Emerson VE4017P0 KJ3242X1-BA2 Series 2 Fieldbus H1 Card |
| Power – Local Bus Supply | 12 VDC at 300 mA |
| Power – Fieldbus per Port | 9–32 VDC at 12 mA/port |
| Operating Temperature | -40°C to +70°C |
| Relative Humidity | 5% to 95%, non-condensing |
| Vibration Resistance | 1mm (2–13.2Hz), 0.7g (13.2–150Hz) |
| Shock Resistance | 10g, ½ sine wave for 11 ms |
| Airborne Contaminants | ISA-S71.04–1985 Class G3 |
| Hazardous Location Approval | ATEX, IECEx, FM (see product label for details) |
| Installation Zone | Zone 2, Class I Div. 2 |
| Terminal Key Position | D6 |
| Dimensions | 107 x 41 x 105 mm |
| Weight | 0.3 kg |
FAQ
FAQ
Q1: How many Fieldbus H1 ports does the card support?
A1: The module typically supports two Fieldbus H1 ports for connecting field devices.
Q2: Can this module be inserted or removed while powered?
A2: No. Power must be turned off before insertion or removal to prevent damage or injury.
Q3: Does the module require calibration by the user?
A3: No calibration is required. The module is factory-configured and maintenance-free.
Q4: Are there installation environment limitations?
A4: Yes, it must be installed in hazardous locations certified for Zone 2 or Class I Div. 2.
Q5: What is the operating temperature range?
A5: The module operates reliably from -40°C to +70°C.
Q6: What levels of physical stress can it withstand?
A6: It can handle shock up to 10g (11 ms) and vibration up to 0.7g.
Q7: Is hot-swapping supported?
A7: No, the module does not support hot-swapping. Power must be off before any action.
Q8: Are there any user-serviceable parts?
A8: No, the unit has no serviceable parts and should not be disassembled.
