Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | VE4017P0 |

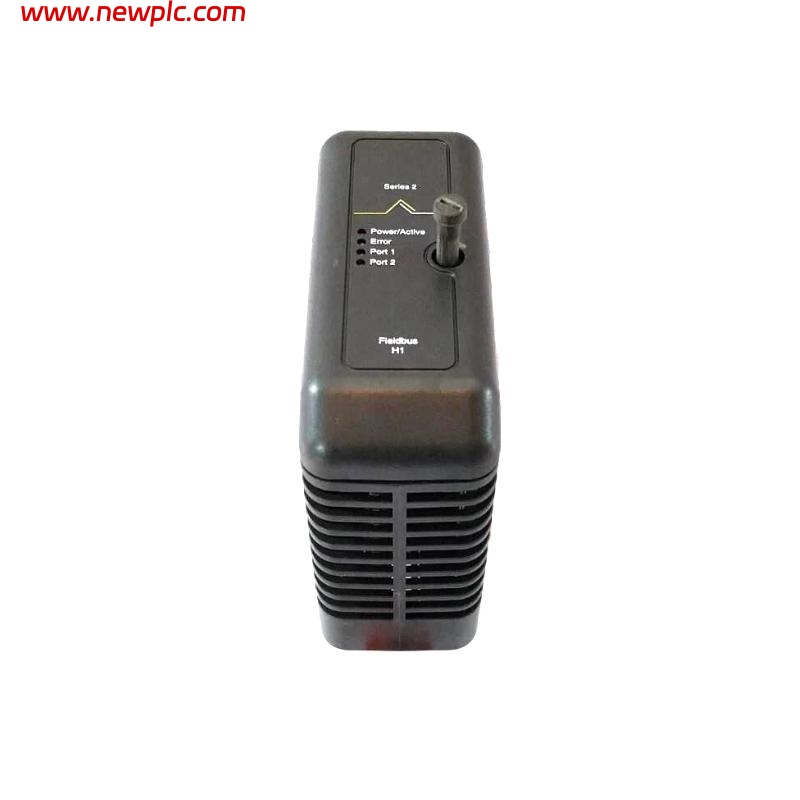

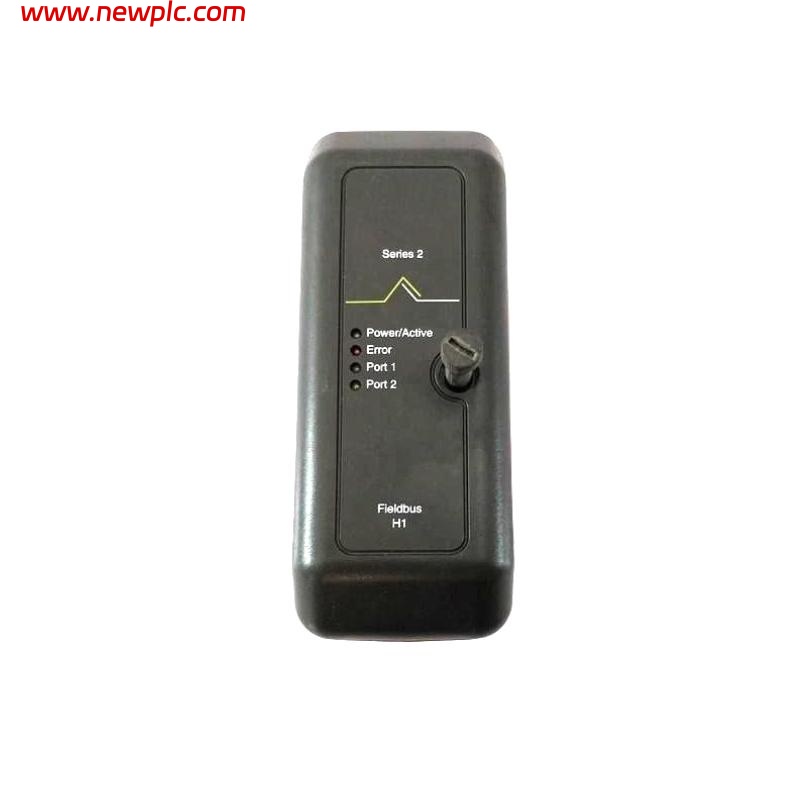

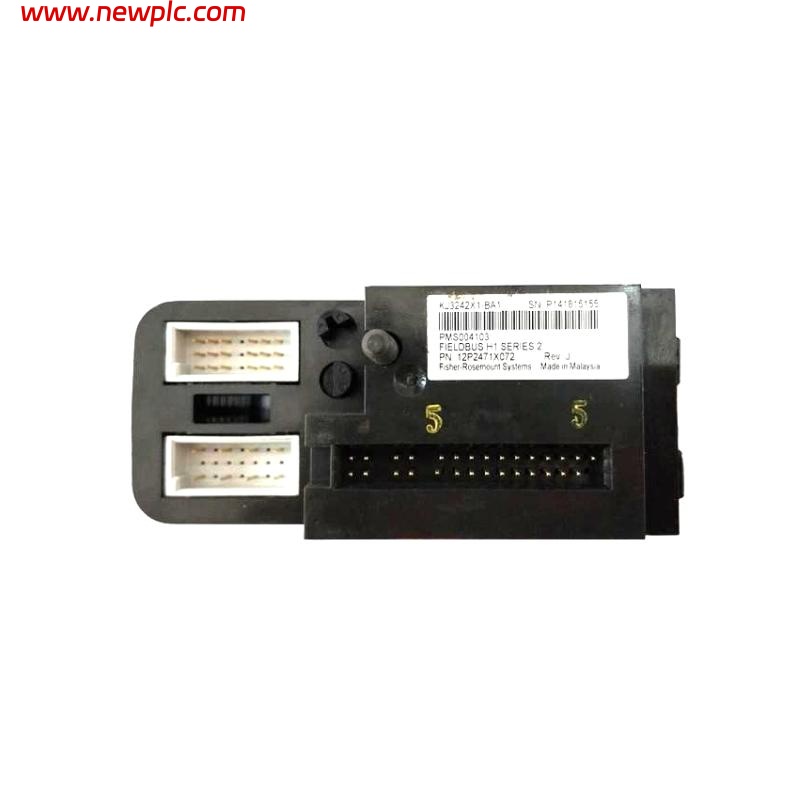

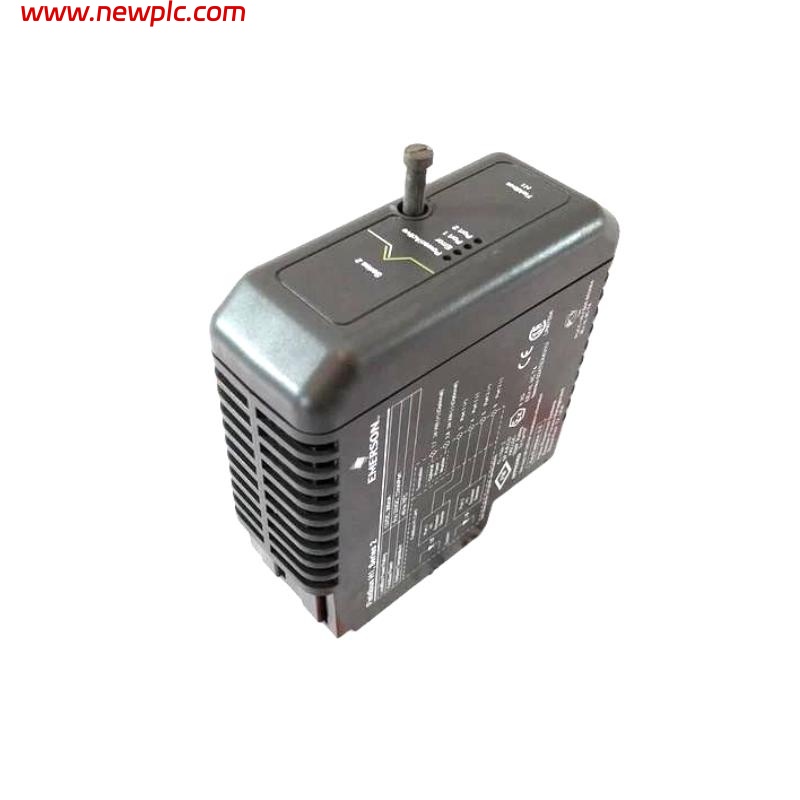

| Product Type | M-series H1 I/O Interface Card and Terminal Block |
| Number of Channels (Ports) | 2 |
| Supported Field Devices | Up to 16 per port (depending on device power consumption and IS requirements) |
| Number of Function Blocks | 96 per card (64 Fieldbus + 32 DeltaV standard) |
| Isolation | 1500 VDC (channel-to-system and channel-to-channel) |
| Signal Range | FOUNDATION Fieldbus IEC 61158-2 compliant |
| Field Circuit Power | 9–32 VDC, 12 mA per channel |
| Localbus Current | 200 mA max at 12 VDC nominal |
| Protection Rating | IP20 |
| Vibration Resistance | 1 mm peak (5–13.2 Hz); 0.7 g (13.2–150 Hz) |
| Shock Resistance | 10 g, 11 ms half-sine wave |
| Operating Temperature | -40 to +70°C |
| Storage Temperature | -40 to +85°C |
| Relative Humidity | 5% to 95% non-condensing |
| Airborne Contaminants | ISA-S71.04-1985 G3 with conformal coating |
| Compliance Standards | IEC 61158, EN61326-1, FM 3600/3611, CSA, ATEX, IECEx |
| Certifications | CE, FM, CSA, ATEX, IECEx, Marine (ABS, DNV) |
| Dimensions | 107 x 41 x 105 mm |
| Weight | 0.3 kg |
FAQ
FAQ
Q1: What is the maximum number of devices supported per VE4017P0 card?
A1: Each card supports up to 16 field devices per channel, totaling 32 devices, depending on device power consumption.
Q2: Does VE4017P0 support redundancy?
A2: The VE4017P0 is a simplex module. For redundancy, use model VE4037P0, which includes two interface cards and a redundant terminal block.
Q3: Is the VE4017P0 hot-swappable?
A3: Yes, the card can be replaced under power in safe areas without shutting down the system.
Q4: What system version is required to use VE4017P0?
A4: VE4017P0 is compatible with DeltaV version 10.3.1 or later.
Q5: What types of signals are supported by this module?
A5: It supports FOUNDATION Fieldbus signals compliant with IEC 61158-2.
Q6: What is the function block capacity of the VE4017P0?
A6: Each VE4017P0 card supports up to 96 function blocks: 64 Fieldbus and 32 standard DeltaV function blocks.
Q7: Is the VE4017P0 suitable for hazardous environments?
A7: Yes, it complies with FM, CSA, ATEX, and IECEx standards for Class I, Division 2 and Zone 2 hazardous areas.
Q8: How does the VE4017P0 handle communication failure?
A8: In redundant configurations (using VE4037P0), it automatically switches to the standby card in the event of communication or hardware failure.
