Technical Specifications
| Item | Specification |
|---|---|

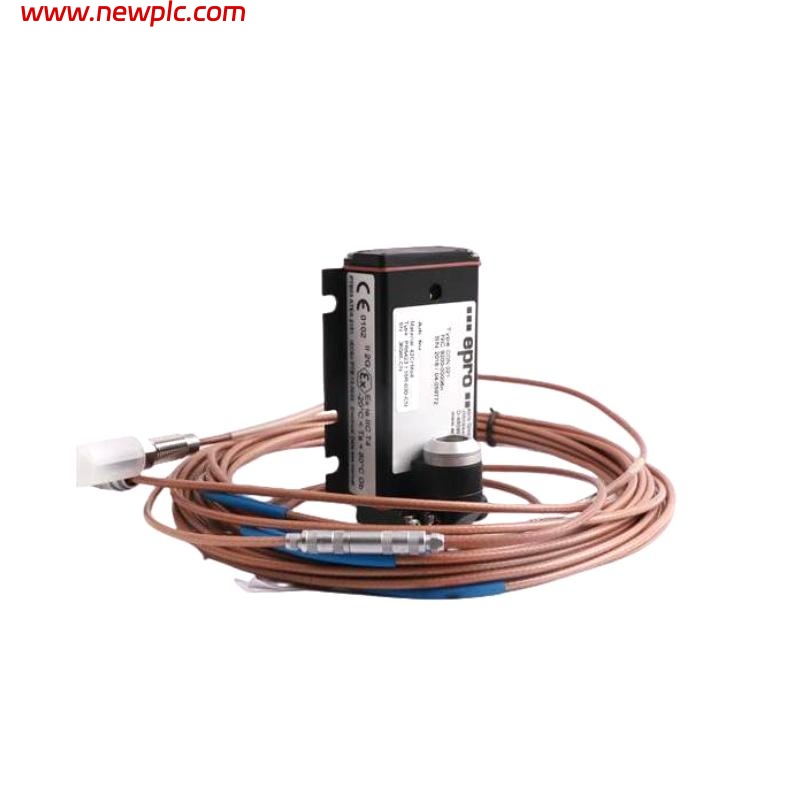

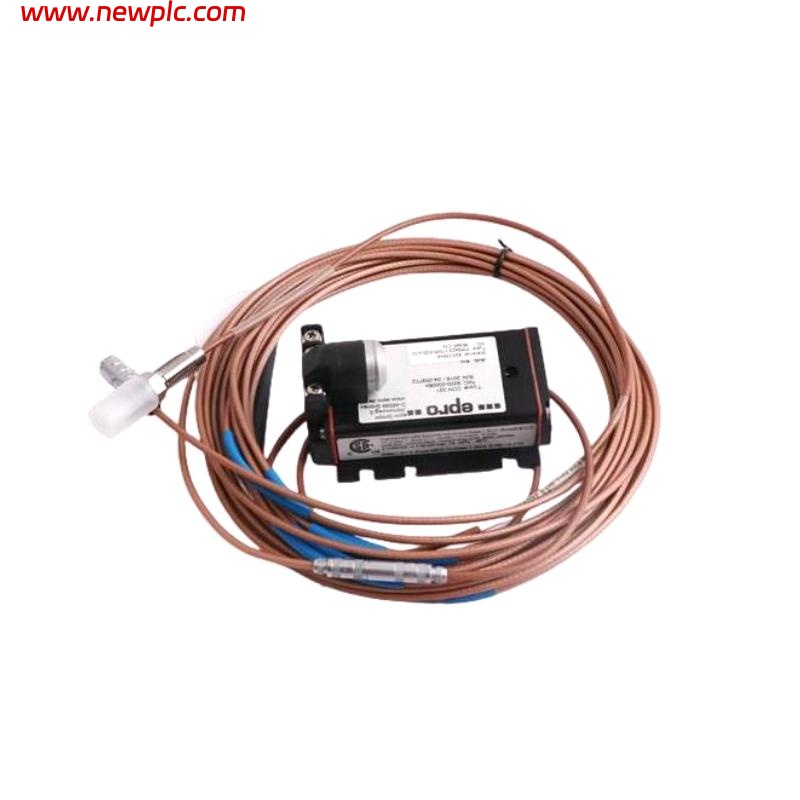

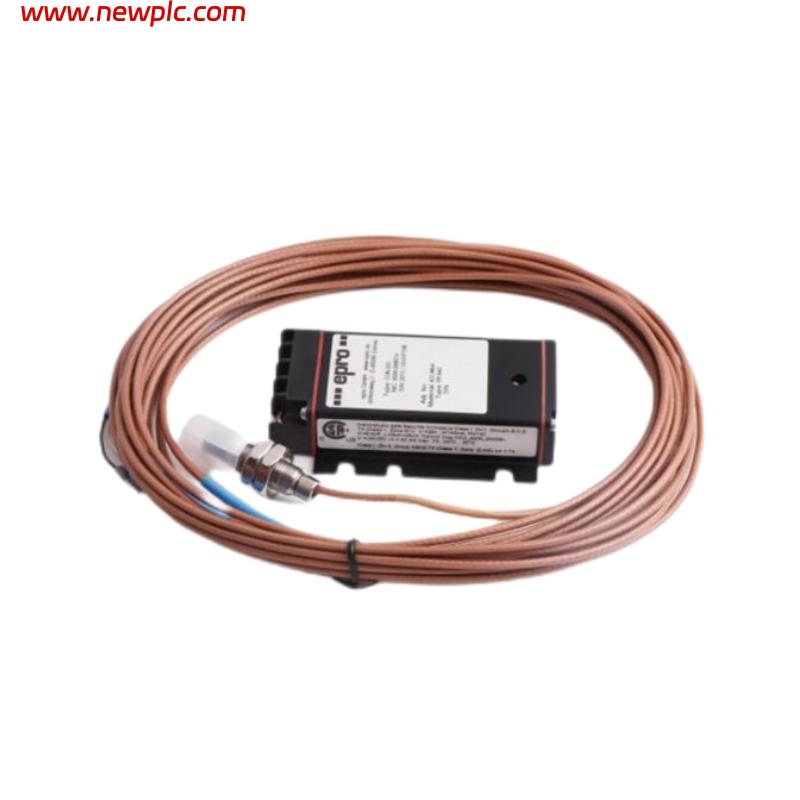

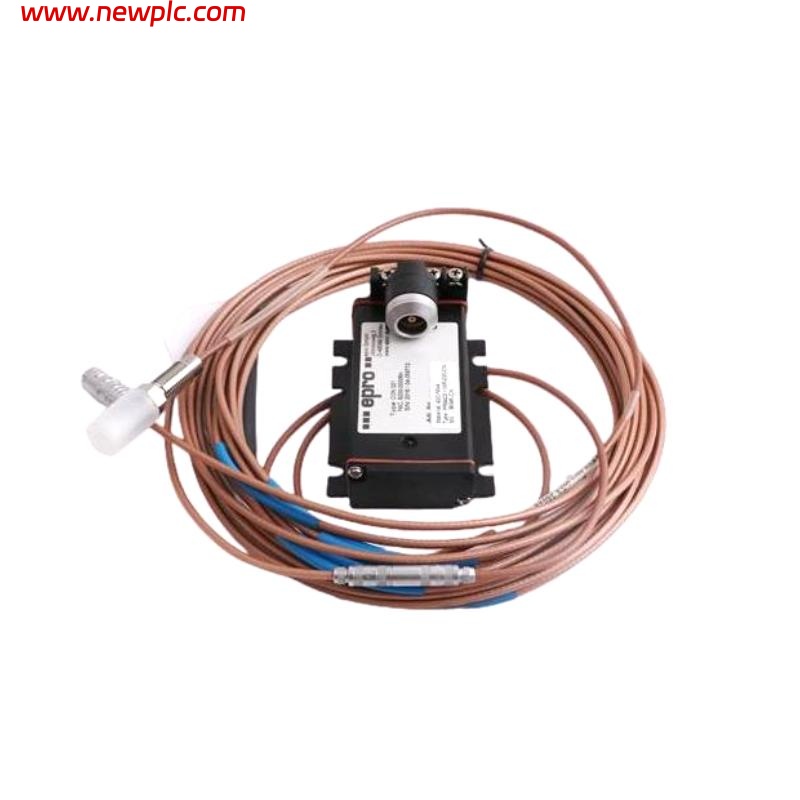

| Model | Epro PR6423/002-110 9200-02044n |
| Type | 8 mm Eddy Current Displacement Sensor |
| Probe Diameter | 8 mm |
| Measuring Range | 0–2 mm (typical) |
| Sensitivity | 10 mV/µm (typical) |
| Frequency Response | 10 Hz–10 kHz (typical) |
| Power / Output | Works with CON series signal conditioner |
| Operating Temperature | –35 °C to +180 °C |
| Protection Rating | IP66 |
| Material | Stainless steel housing, PEEK probe tip, PTFE cable |
| Dimensions | Sensor head diameter 8 mm |
| Weight | 0.1 kg |
FAQ
FAQ
Q1: What is the main application of this sensor?
A1: It is used for shaft displacement and vibration monitoring in turbines, compressors, motors, and pumps.
Q2: What does “9200-02044n” indicate?
A2: It typically refers to a specific cable or connector configuration variant for tailored application requirements.
Q3: How accurate is the measurement?
A3: Under proper installation and calibration, linearity is typically better than ±1%.
Q4: Can the probe withstand high temperatures?
A4: Yes, it can operate reliably from –35 °C to +180 °C.
Q5: How is the output signal connected?
A5: It must be used with an Epro CON series signal conditioner, such as CON041, to provide a standard voltage output.
Q6: Does it offer dust and water protection?
A6: Yes, with IP66 protection, suitable for harsh and humid industrial environments.
Q7: Is cable length customization available?
A7: Yes, different cable lengths can be ordered depending on installation needs.
Q8: What are the dimensions and weight of the sensor?
A8: Sensor head diameter 8 mm, and weight is 0.1 kg.
