Technical Specifications
| Item | Specification |
|---|---|

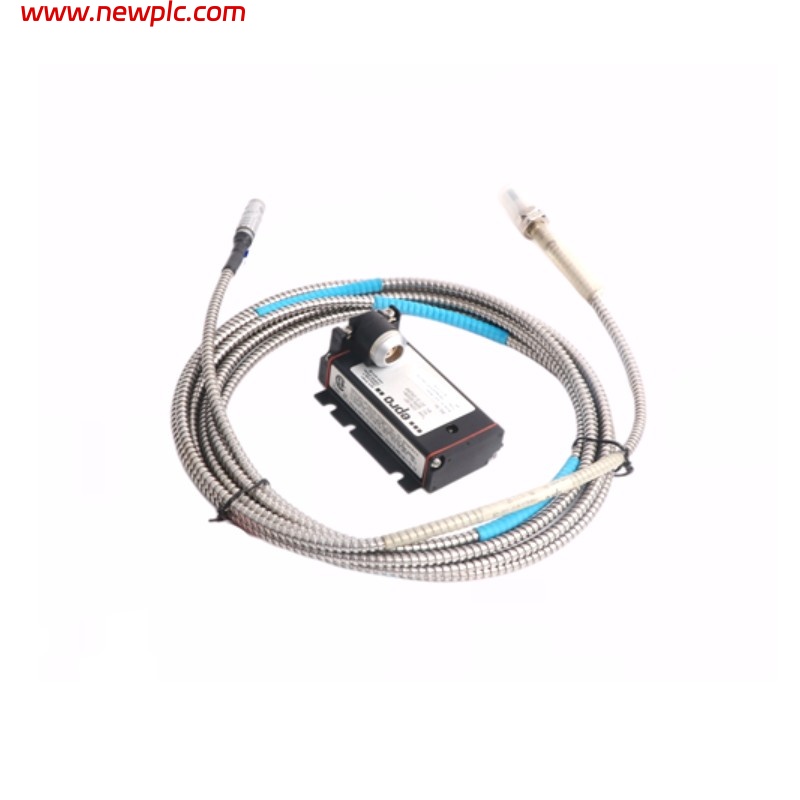

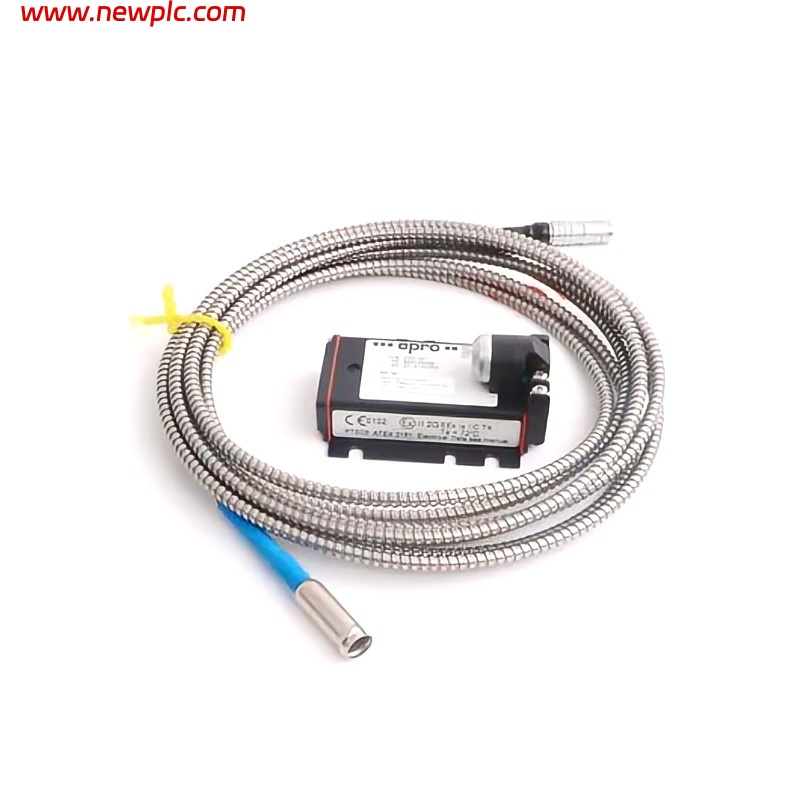

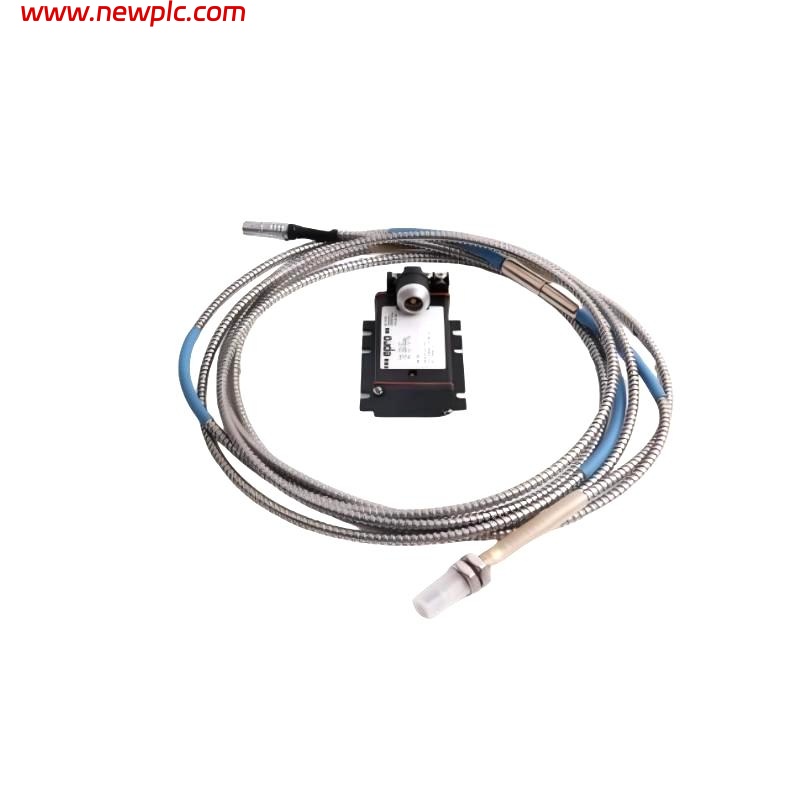

| Model | Epro PR6423/010-000-CN |
| Type | 8 mm Eddy Current Displacement Sensor |
| Probe Diameter | 8 mm |
| Measuring Range | 0–2 mm |
| Recommended Gap | 0.5 mm |
| Target Material | Steel (AISI 4140 or equivalent) |
| Output Signal | Standard analog voltage output (requires signal conditioner) |
| Operating Temperature | –35 °C to +200 °C |
| Protection Rating | IP66 |
| Material | Stainless steel housing, PEEK probe tip, PTFE cable |
| Dimensions | Sensor head diameter 8 mm |
| Weight | 0.1 kg |
FAQ
FAQ
Q1: What equipment is this sensor mainly used for?
A1: It is used for shaft displacement, eccentricity, and vibration monitoring in turbines, compressors, motors, and pumps.
Q2: What is the measuring range?
A2: The standard measuring range is 0–2 mm.
Q3: What is the recommended probe-to-target gap?
A3: A gap of 0.5 mm is recommended to ensure linearity and measurement accuracy.
Q4: Can the probe operate at high temperatures?
A4: Yes, it can operate from –35 °C to +200 °C.
Q5: What type of output signal does it provide?
A5: Standard analog voltage output, which requires a compatible signal conditioner.
Q6: What is the protection rating?
A6: IP66, dust-tight and protected against strong water jets, suitable for industrial environments.
Q7: How can measurement accuracy be ensured?
A7: Ensure the probe is aligned to the target, maintain the recommended gap, and properly ground the shielded cable.
Q8: What are the dimensions and weight of the sensor?
A8: Sensor head diameter 8 mm, and weight is 0.1 kg.
