Technical Specifications
| Item | Specification |
|---|---|
| Model | Epro PR6423/010-130 + CON021 |

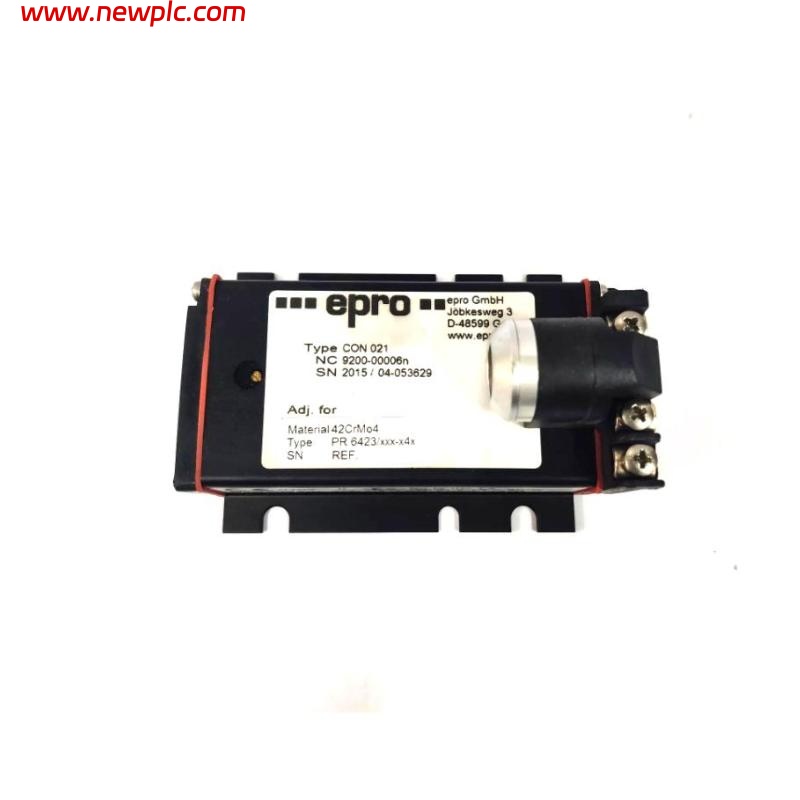

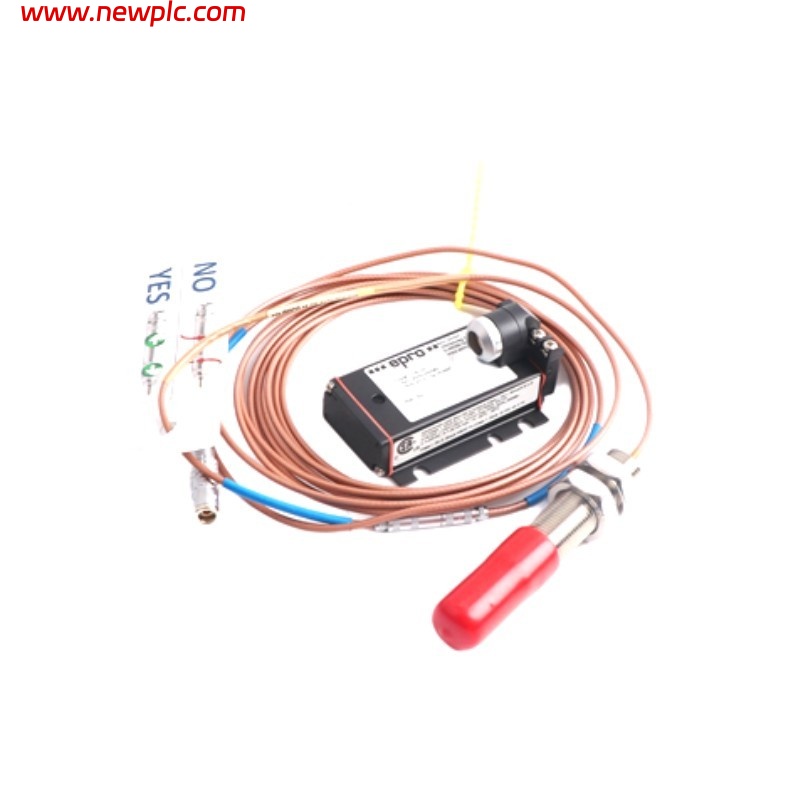

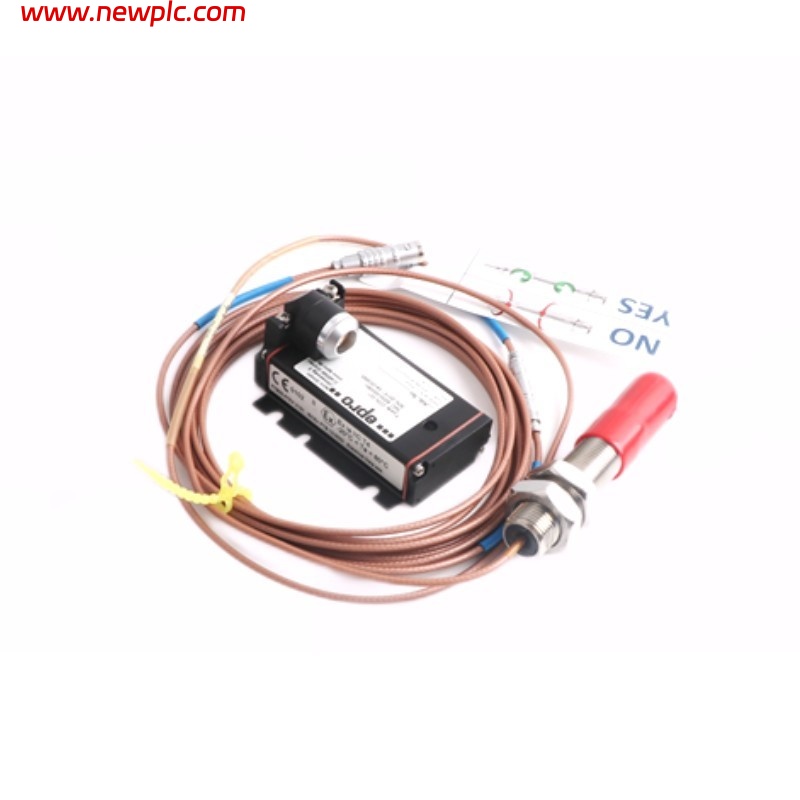

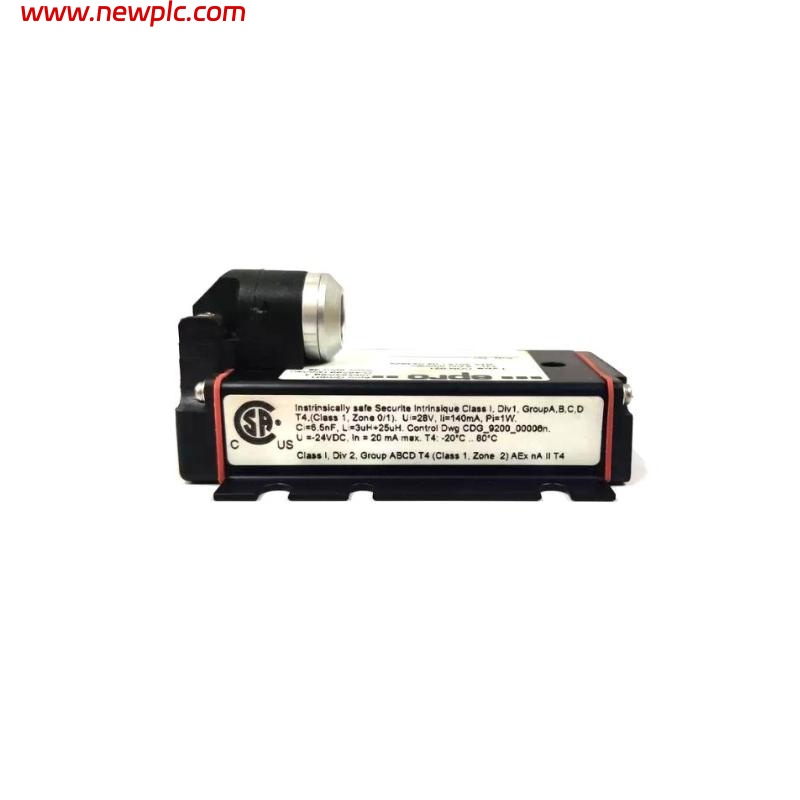

| Product Type | 8 mm Eddy-Current Displacement and Vibration Sensor with Converter |
| Measurement Principle | Non-contact eddy-current measurement |
| Probe Diameter | 8 mm |
| Thread Type | M10 x 1 |
| Measurement Range | 2.0 mm to 4.0 mm (typical) |
| Sensitivity | 7.87 mV/μm (typical, with CON021 converter) |
| Frequency Range | DC to 10 kHz |
| Linearity | ≤ ±1% of full scale |
| System Components | PR6423 probe + CON021 converter |
| Output Signal | Standardized voltage (±10 V) or current (4–20 mA) via CON021 |
| Supply Voltage | ±15 V DC or 24 V DC (via CON021 converter) |
| Cable Type | Low-noise coaxial cable |
| Cable Length | Standard 10 m (customizable) |
| Minimum Bend Radius | 25 mm |
| Operating Temperature | -35°C to +80°C |
| Storage Temperature | -40°C to +85°C |
| Housing Material | Stainless steel |
| Environmental Protection | IP67 |
| Compatible Systems | Epro MMS 6000, Bently Nevada 3300/3700 series |
| Dimensions | Sensor head diameter 8 mm |
| Weight | 0.21 kg |
FAQ
FAQ
Q1: What components are included in the PR6423/010-130 + CON021 system?
A1: It includes one PR6423 8 mm eddy-current probe and one CON021 signal converter.
Q2: What is the main application of this sensor system?
A2: It is designed for non-contact measurement of shaft displacement and vibration in rotating machinery such as turbines, compressors, and generators.
Q3: What is the measurement range of the PR6423/010-130 probe?
A3: The typical linear range is 2 to 4 mm, depending on the target material and setup.
Q4: What type of output signal does the CON021 converter provide?
A4: The CON021 provides standardized voltage (±10 V) or current (4–20 mA) output.
Q5: What is the typical sensitivity of the probe?
A5: The sensitivity is approximately 7.87 mV/μm when paired with the CON021 converter.
Q6: Can the cable length be customized?
A6: Yes, the standard cable length is 10 meters, but other lengths can be requested.
Q7: What is the environmental protection rating of the probe?
A7: The probe has an IP67 rating for protection against dust and water ingress.
Q8: What are the dimensions and weight of the system?
A8: Sensor head diameter 8 mm, and the weight is 0.21 kg.
