Technical Specifications
| Item | Specification |
|---|---|

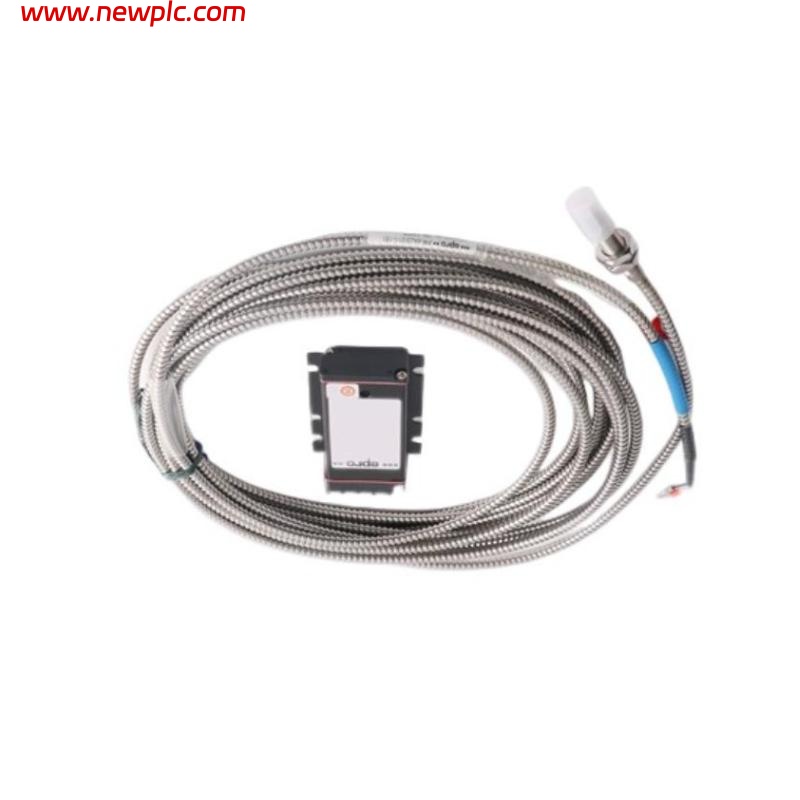

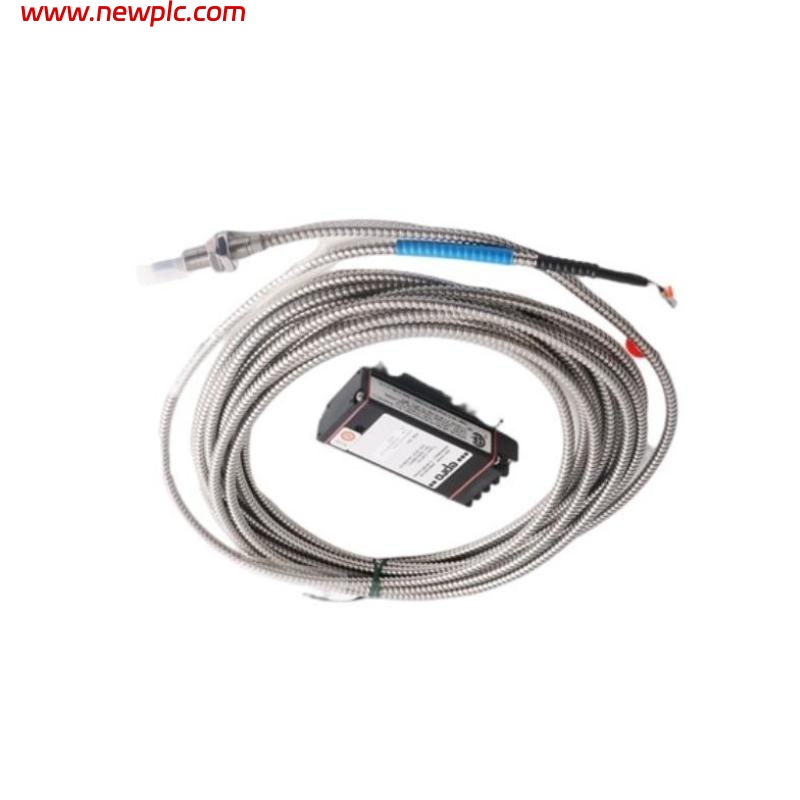

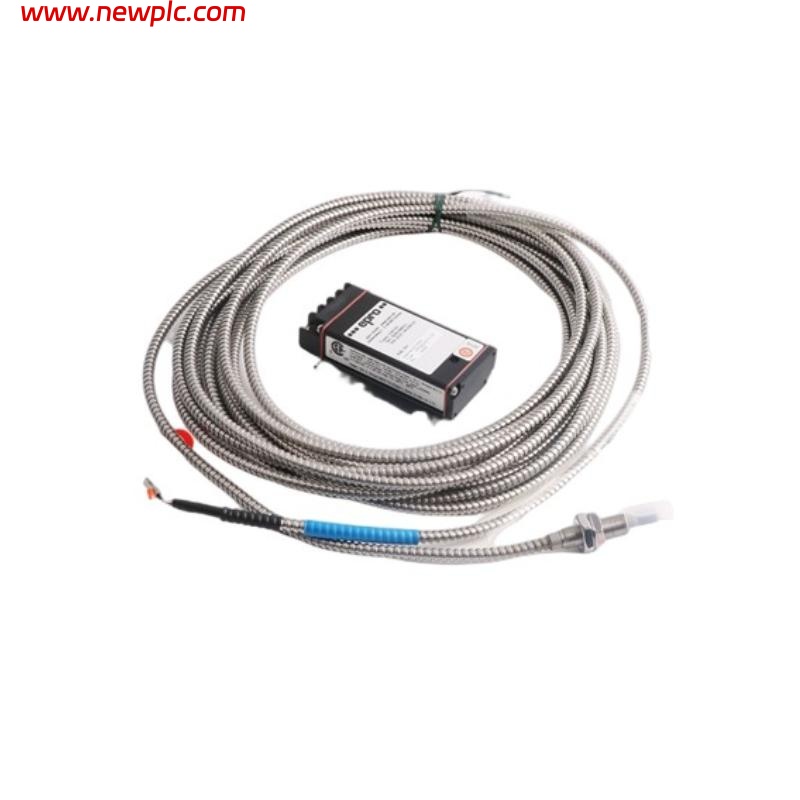

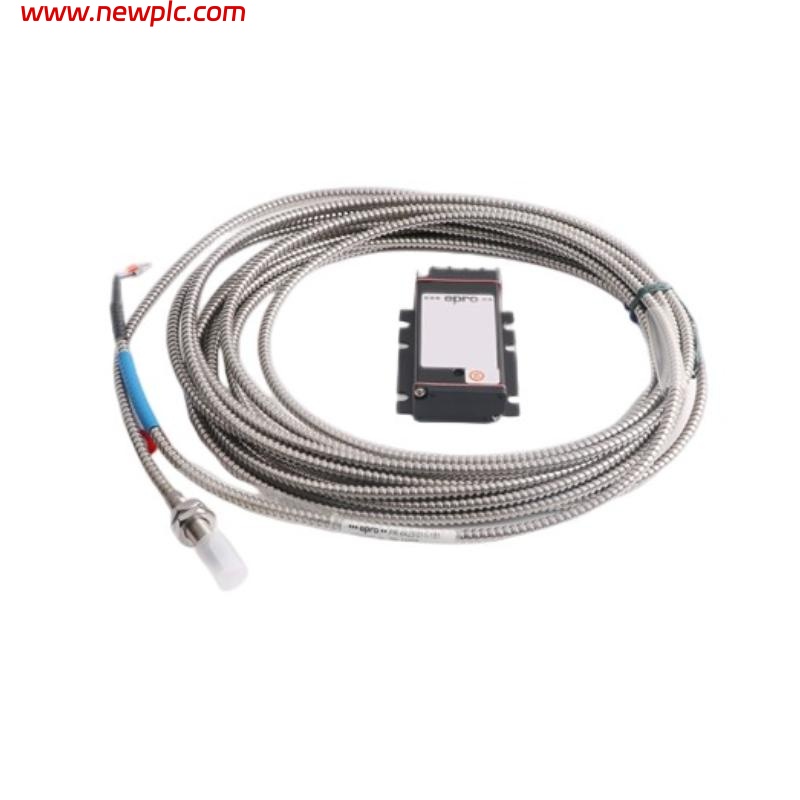

| Product Model | Epro PR6423/012-010 |
| Product Type | Eddy-Current Sensor |
| Sensor Tip Diameter | 8 mm |
| Measuring Range | 2 mm (typical) |
| Sensitivity | 8 mV/µm |
| Frequency Range | 0 to 10 kHz |
| Operating Temperature | -35 °C to +180 °C |
| Storage Temperature | -40 °C to +200 °C |
| Power Supply | Provided by CON021 driver |
| Connection Type | Compatible with CON021 or CON041 driver |
| Probe Material | Stainless steel |
| Insulation Resistance | >10 MΩ |
| Shielding | Fully shielded cable and sensor body |
| Dimensions | Sensor head diameter 8 mm |
| Weight | 0.1 kg |
FAQ
FAQ
Q1: What is the main application of the Epro PR6423/012-010 sensor?
It is mainly used for vibration and displacement monitoring of rotating machinery such as turbines, compressors, and pumps.
Q2: How does it differ from the PR6423/011 series?
The PR6423/012-010 features enhanced sensitivity and linearity, suitable for high-precision position detection.
Q3: Is it mandatory to use with a CON021 driver?
Yes, the probe must be used with the Epro CON021 driver for correct signal conversion.
Q4: Can it operate in high-temperature environments?
Yes, it can operate continuously at up to +180°C.
Q5: Is shielding required during installation?
The sensor is internally shielded, but additional grounding is recommended in high-EMI environments.
Q6: What type of output signal does it provide?
It outputs a nonlinear voltage signal, which is linearized by the driver for monitoring systems.
Q7: Can it replace other brands’ 8mm eddy-current probes?
Yes, as long as the driver and signal conditioning parameters are compatible.
Q8: What is the recommended maintenance interval?
It is recommended to inspect and calibrate the sensor every 12 months to maintain accuracy.
