Technical Specifications
| Item | Specification |
|---|---|

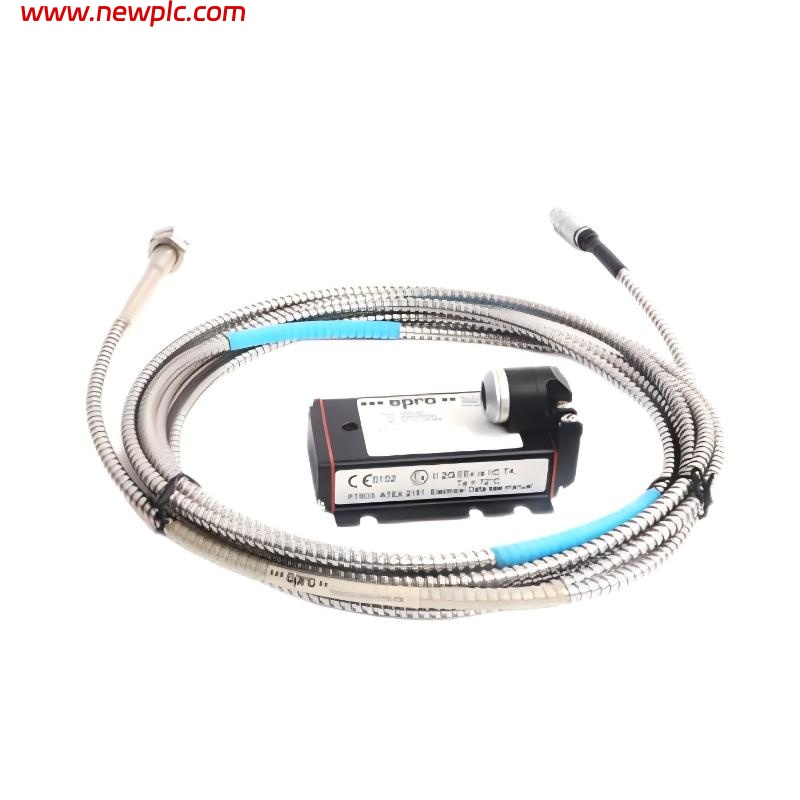

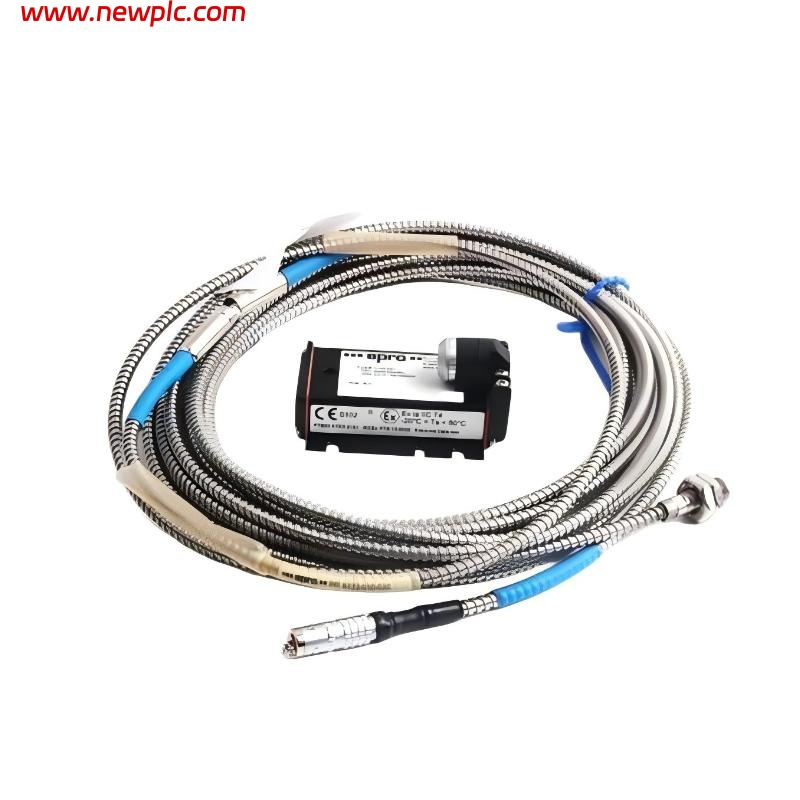

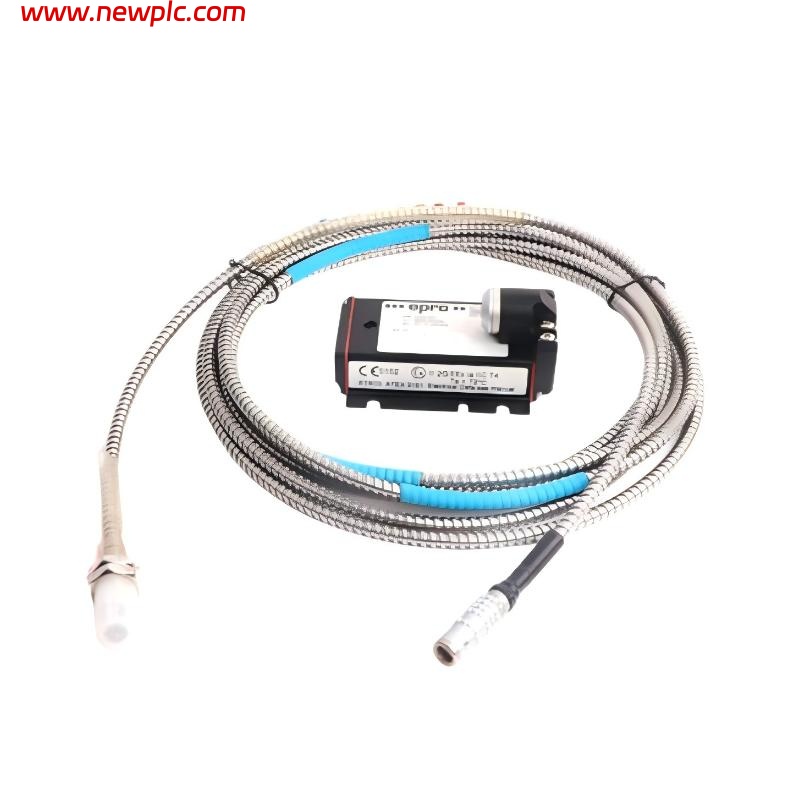

| Model | PR6424/007-030 |
| Product Type | Eddy Current Displacement Sensor |
| Measurement Principle | Non-contact eddy current |
| Sensor Head Diameter | 16 mm |
| Measuring Type | Radial shaft displacement and vibration |
| Output Signal | Analog voltage (requires compatible driver) |
| Sensitivity | 8 mV/µm typical (with matching driver) |
| Measuring Range | 3 mm |
| Linearity | ≤ ±1% of full scale |
| Resolution | < 1 µm |
| Frequency Response | 0–10 kHz |
| Target Material | Conductive metals (steel standard) |
| Temperature Drift | Minimal thermal drift |
| Environmental Protection | Industrial sealed housing |
| Electrical Connection | Connector interface to driver module |
| Shock Resistance | Suitable for high-shock environments |
| Vibration Resistance | Designed for high-speed machinery |
| Housing Material | Stainless steel |
| Installation Method | Threaded mounting |
| Operating Temperature | -35°C to +180°C |
| Storage Temperature | -40°C to +200°C |
| Relative Humidity | 95% max, non-condensing |
| Weight | 0.2 kg |
FAQ
FAQ
Q1: What is the primary application of this sensor?
A1: It measures non-contact shaft displacement and vibration in rotating machinery.
Q2: What types of materials can be measured?
A2: Conductive metals, primarily steel and other ferrous alloys.
Q3: Does the sensor produce a usable output by itself?
A3: No, it requires a compatible driver module to convert signals to standard analog voltage.
Q4: Can it operate under high-temperature conditions?
A4: Yes, it is rated for continuous operation up to 180°C.
Q5: How is the sensor installed?
A5: It uses a threaded mounting for secure and precise positioning.
Q6: Is the sensor resistant to industrial contamination?
A6: Yes, the housing is sealed against dust, oil, and other contaminants.
Q7: Can this sensor monitor both displacement and vibration?
A7: Yes, it is suitable for both displacement and high-frequency vibration measurements.
Q8: What environments is the sensor suitable for?
A8: Designed for high-speed rotating machinery, turbines, and other industrial applications with vibration and shock.
