Technical Specifications
| Item | Specification |
|---|---|

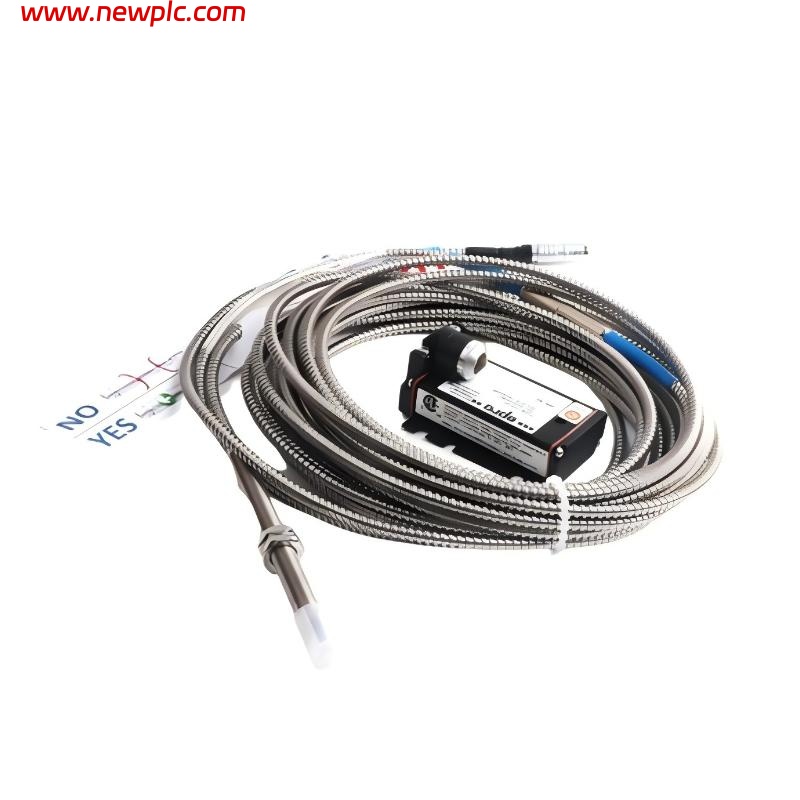

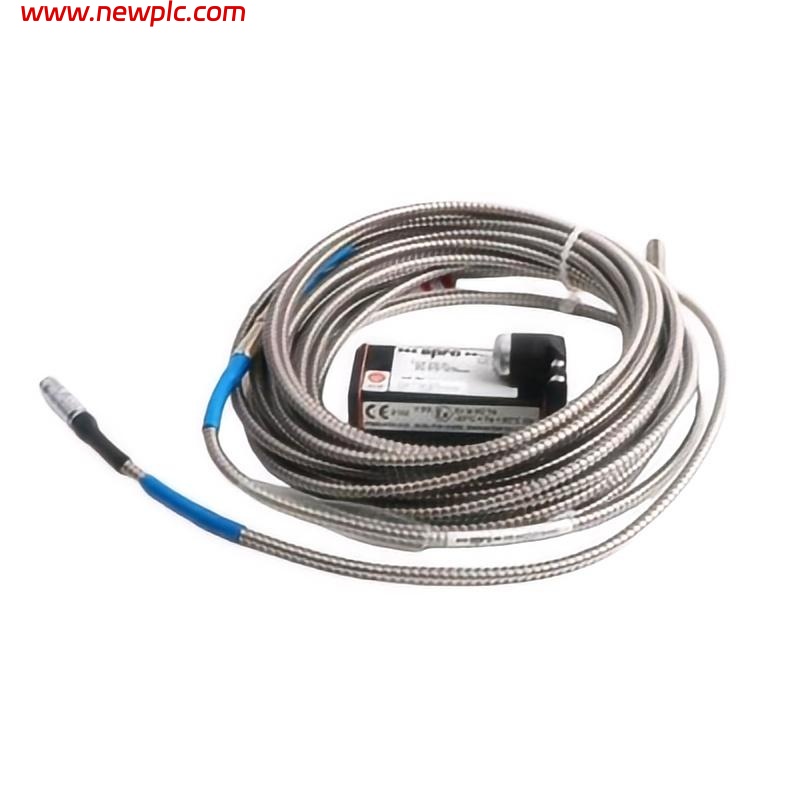

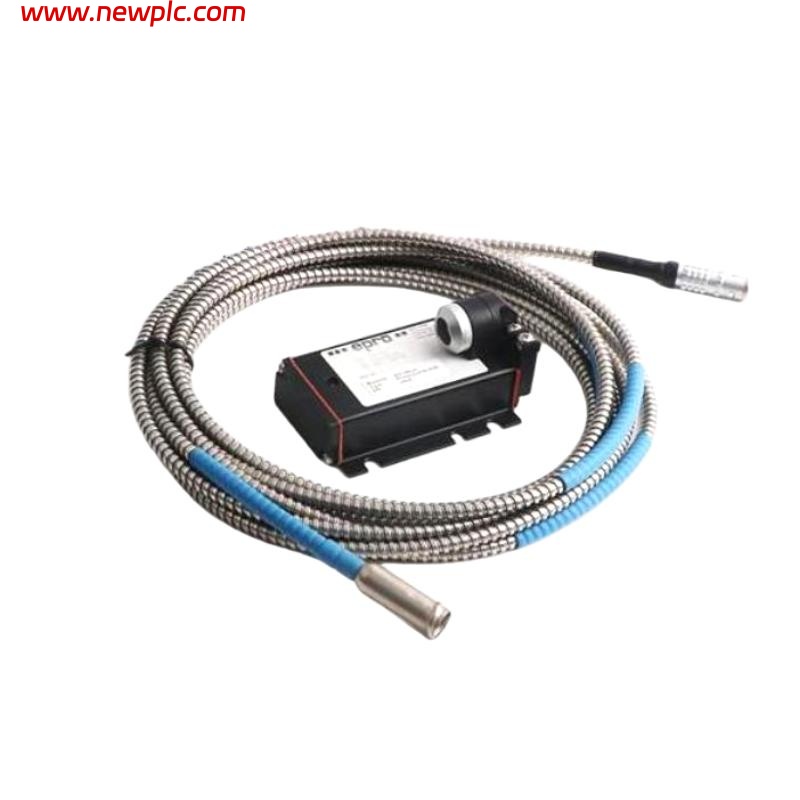

| Model | PR6424/007-100 |
| Product Type | Eddy Current Displacement Sensor |
| Measurement Principle | Non-contact eddy current |
| Sensor Head Diameter | 16 mm |
| Measuring Type | Radial shaft displacement and vibration |
| Output Signal | Analog voltage via compatible driver module |
| Sensitivity | 8 mV/µm typical (with matching driver) |
| Measuring Range | 10 mm |
| Linearity | ≤ ±1% of full scale |
| Resolution | < 1 µm |
| Frequency Response | 0–10 kHz |
| Target Material | Conductive metals (steel standard) |
| Temperature Drift | Minimal thermal drift |
| Environmental Protection | Industrial sealed housing |
| Electrical Connection | Connector interface for driver module |
| Shock Resistance | Suitable for high-shock environments |
| Vibration Resistance | High-speed machinery compatible |
| Housing Material | Stainless steel |
| Installation Method | Threaded mounting |
| Operating Temperature | -35°C to +180°C |
| Storage Temperature | -40°C to +200°C |
| Relative Humidity | 95% max, non-condensing |
| Weight | 0.2 kg |
FAQ
FAQ
Q1: What is the main purpose of this sensor?
A1: It measures shaft displacement and vibration without physical contact in rotating machinery.
Q2: What types of materials can the sensor measure?
A2: Conductive metals, including steel and other ferrous alloys.
Q3: Does the sensor output a signal directly?
A3: No, it requires a compatible driver module to produce a standard analog voltage output.
Q4: Can the sensor operate in high-temperature environments?
A4: Yes, it is rated for continuous operation up to 180°C.
Q5: How is the sensor mounted?
A5: It uses a threaded body for precise and secure installation.
Q6: Is the sensor protected against dust and oil?
A6: Yes, it has a sealed housing suitable for industrial environments.
Q7: Can this sensor measure both displacement and vibration?
A7: Yes, it is designed for high-resolution displacement and vibration monitoring.
Q8: What type of machinery is this sensor suitable for?
A8: High-speed rotating machinery, turbines, generators, and industrial motors where precise monitoring is required.
