Technical Specifications
| Item | Specification |
|---|---|

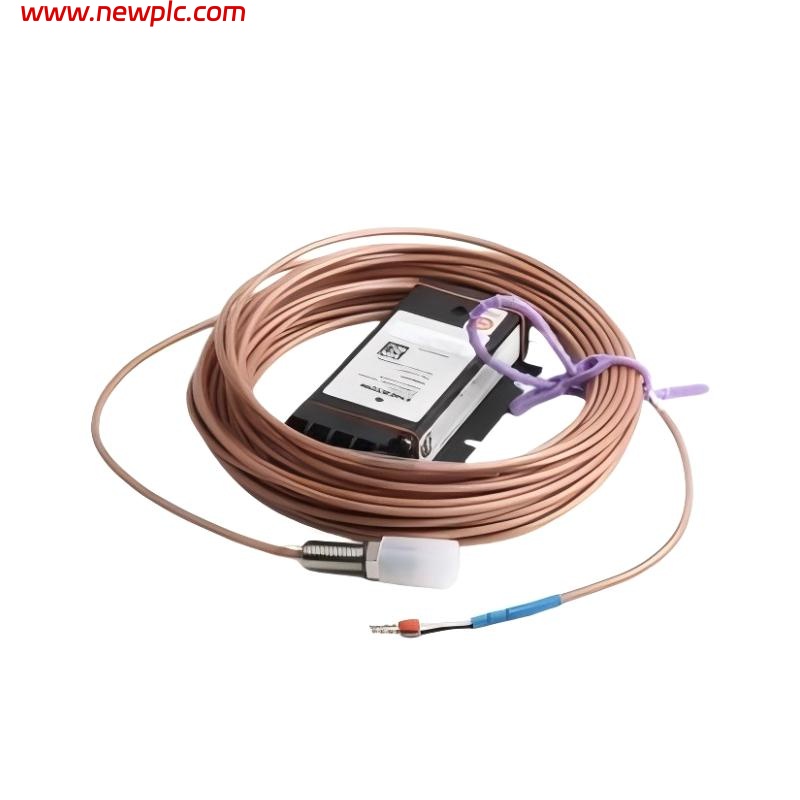

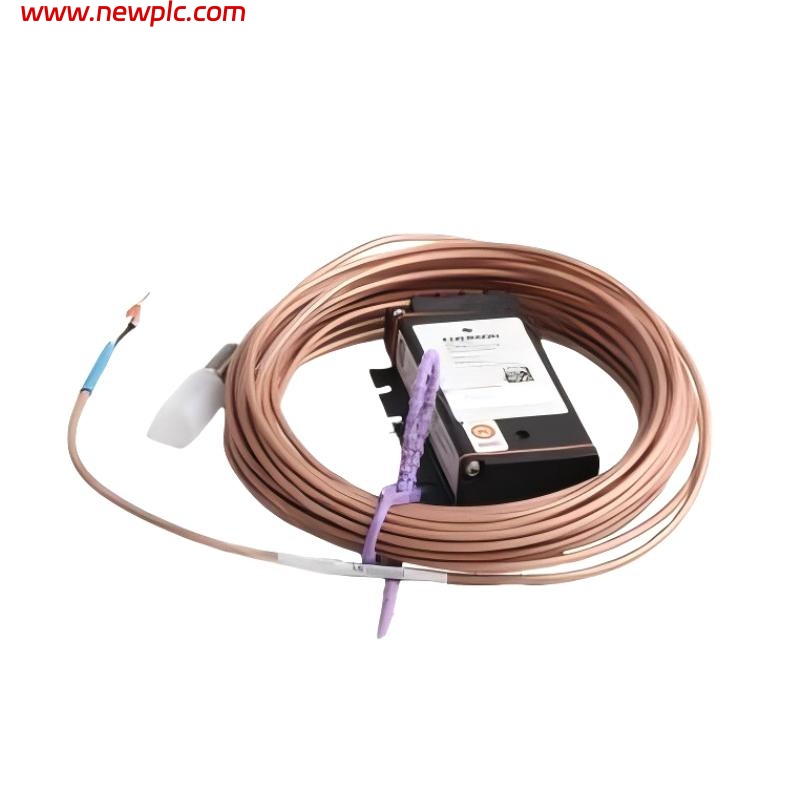

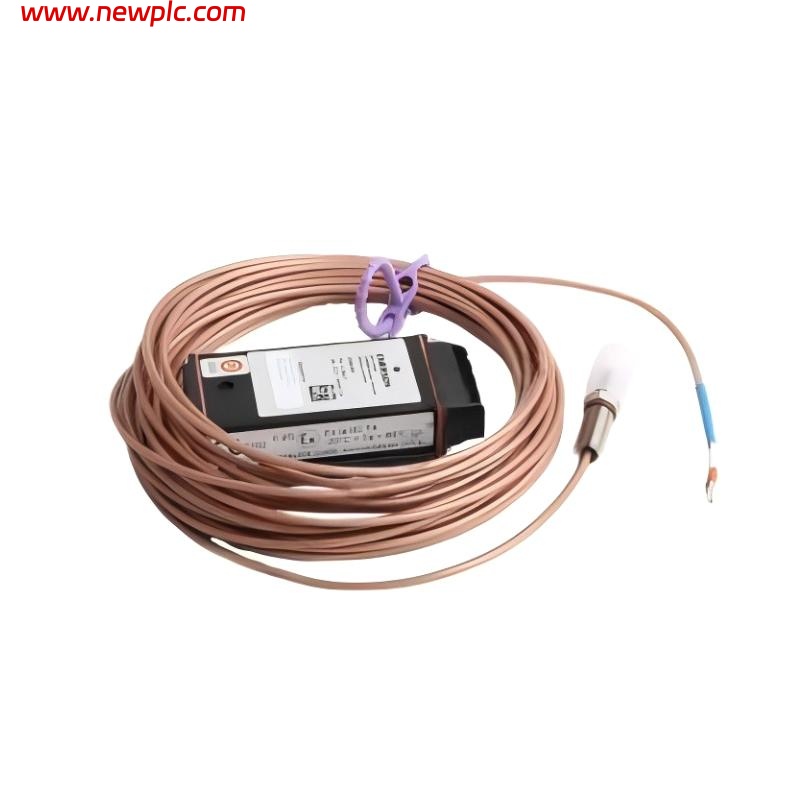

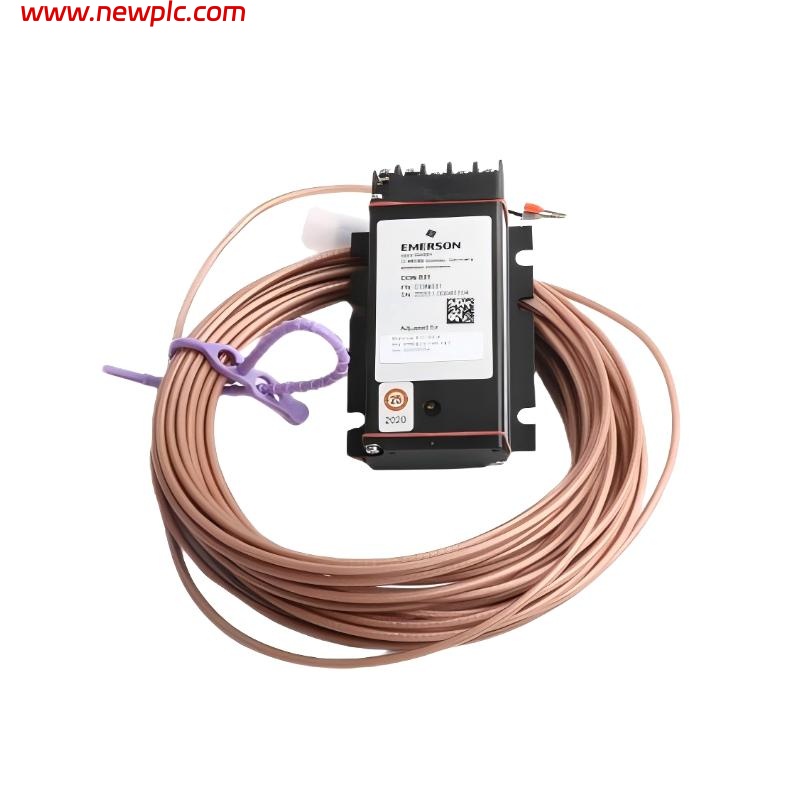

| Model | PR6424/008-100 |
| Product Type | Eddy Current Displacement Sensor |
| Measurement Principle | Non-contact eddy current |
| Sensor Head Diameter | 16 mm |
| Measuring Type | Radial shaft displacement and vibration |
| Output Signal | Analog voltage via compatible driver module |
| Sensitivity | 8 mV/µm typical (with matching driver) |
| Measuring Range | 10 mm |
| Linearity | ≤ ±1% of full scale |
| Resolution | < 1 µm |
| Frequency Response | 0–10 kHz |
| Target Material | Conductive metals (steel standard) |
| Temperature Drift | Low thermal drift design |
| Environmental Protection | Industrial sealed housing |
| Electrical Connection | Connector interface for driver module |
| Shock Resistance | High-shock resistant |
| Vibration Resistance | Suitable for high-speed rotating machinery |
| Housing Material | Stainless steel |
| Installation Method | Threaded mounting |
| Operating Temperature | -35°C to +180°C |
| Storage Temperature | -40°C to +200°C |
| Relative Humidity | 95% max, non-condensing |
| Weight | 0.2 kg |
FAQ
FAQ
Q1: What is the main purpose of the PR6424/008-100 sensor?
A1: It provides precise, non-contact measurement of shaft displacement and vibration in industrial machinery.
Q2: How does it maintain accuracy during temperature changes?
A2: The sensor features low thermal drift, ensuring stable measurements across varying operating temperatures.
Q3: Can it detect high-frequency vibrations?
A3: Yes, with a frequency response up to 10 kHz, it accurately captures high-speed shaft vibrations.
Q4: What types of environments is this sensor suitable for?
A4: It is designed for harsh industrial environments, resistant to dust, oil, and mechanical shocks.
Q5: Does the sensor output a usable signal directly?
A5: No, it requires a compatible driver module to convert its measurements into standard analog voltage.
Q6: Can it measure non-ferrous metals?
A6: Yes, it can detect any conductive metal, although it is calibrated primarily for steel.
Q7: How is the sensor installed?
A7: Threaded mounting allows secure placement and precise alignment with the target shaft.
Q8: Can it monitor both displacement and vibration simultaneously?
A8: Yes, it provides high-resolution measurements suitable for simultaneous displacement and vibration monitoring.
