Technical Specifications
| Parameter | Specification |
|---|---|

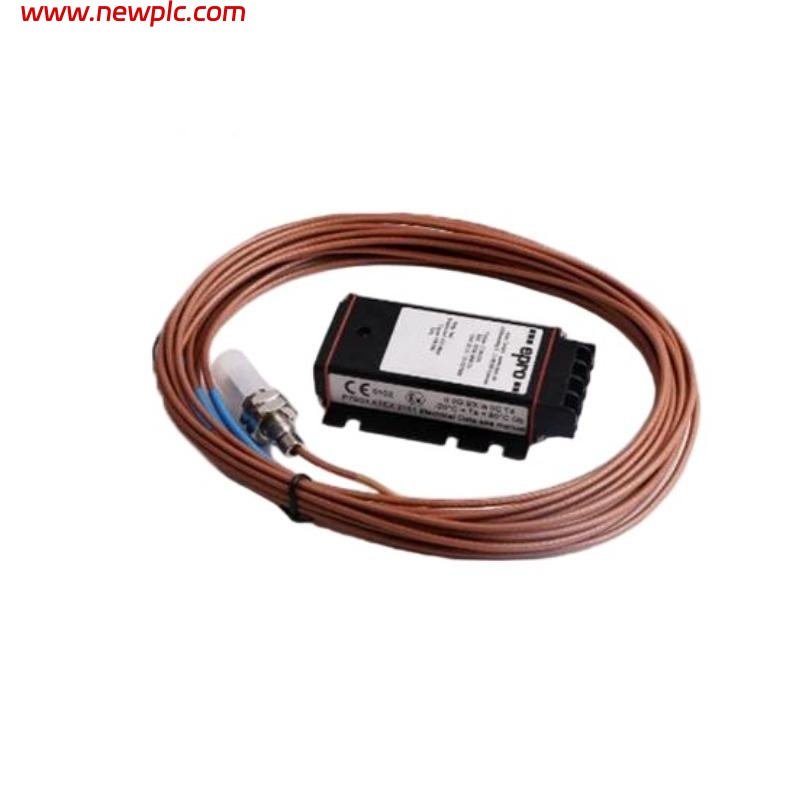

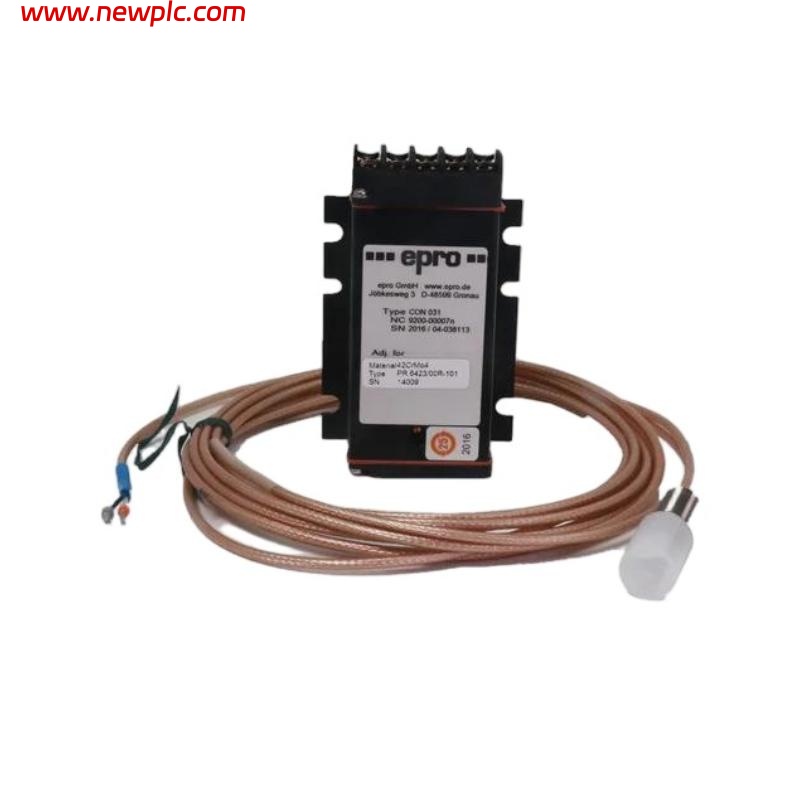

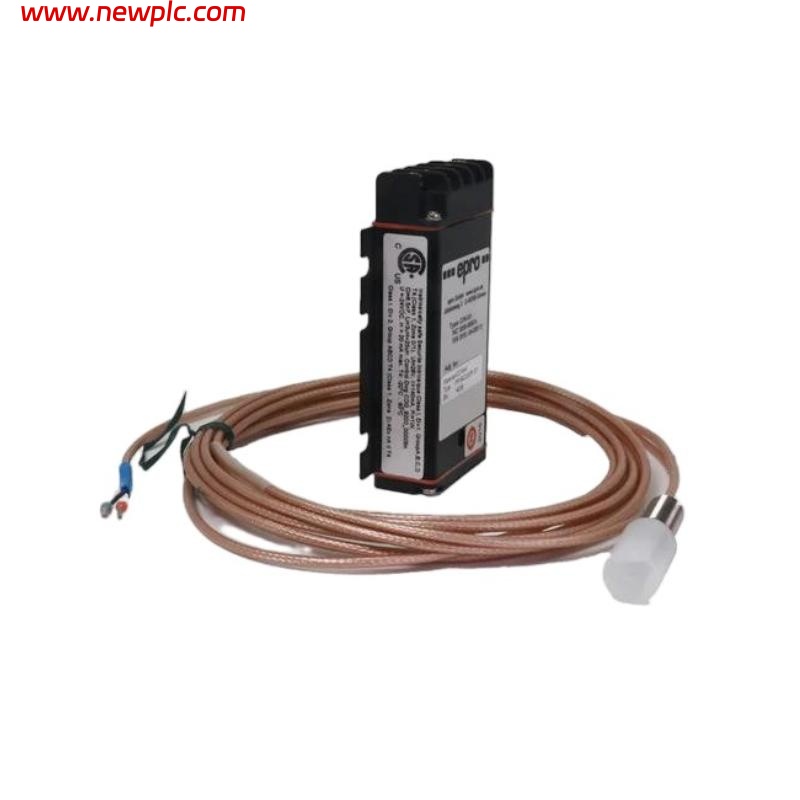

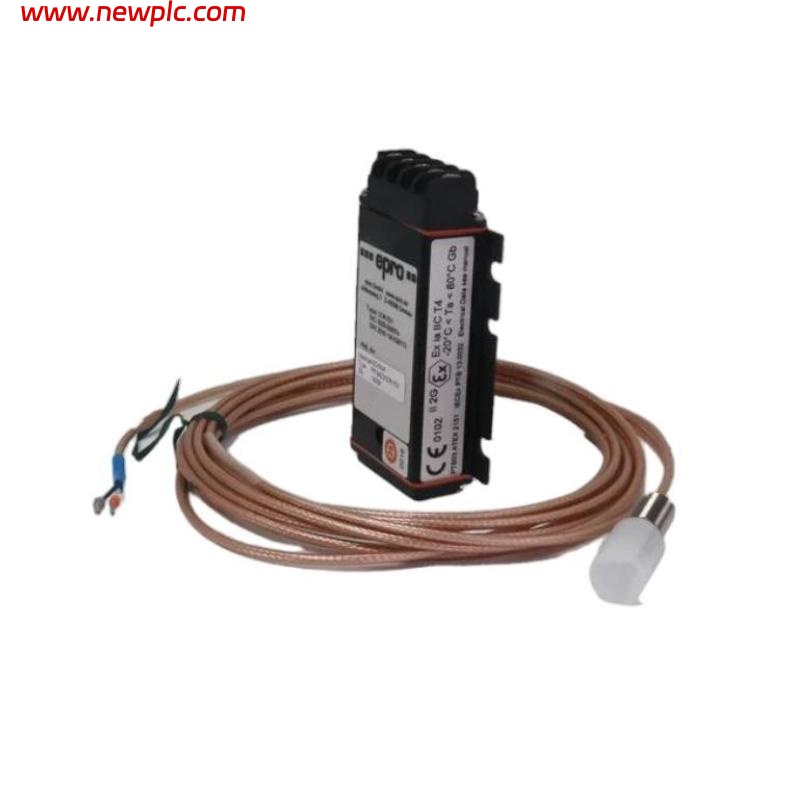

| Model | PR6425/010‑A20 Eddy Current Sensor |
| Sensor Type | Eddy current non‑contact displacement and vibration measurement sensor |
| Sensitivity | 4 V/mm (±2 %) (typical for PR6425 family) |
| Nominal Air Gap | Approx. 2.6 mm (typical for PR6425 family) |
| Static Measurement Range | ± 2.0 mm (typical PR6425 spec) |
| Dynamic Measurement Range | 0–1000 µm (PR6425 sensor family) |
| Target Material | Ferromagnetic steel (e.g., 42CrMo4 / AISI 4140) |
| Maximum Surface Speed | Up to ~2500 m/s (typical PR6425 family) |
| Minimum Shaft Diameter | ≥ 80 mm (PR6425 spec) |
| Operating Temperature | –35 °C to ~380 °C (typical PR6425 range) |
| Cable Temperature (First Meter) | –40 °C to ~380 °C (typical PR6425 spec) |
| Cable Temperature (Remaining Length) | –40 °C to ~200 °C (typical PR6425 spec) |
| Pressure Resistance | Up to ~2000 hPa (PR6425 spec) |
| Shock/Vibration Resistance | ~5 g @ 60 Hz (typical) |
| Housing Material | Stainless steel probe body (typical family spec) |
| Cable Material | PTFE insulated (typical family spec) |
| Weight (Sensor with 1 m Cable) | ~500 g (typical PR6425 family) |
| Dimensions (Probe Diameter × Body Length × Thread) | Ø 16 mm × ~69 mm body length with M18×1.5 mounting thread (typical PR6425) |
FAQ
FAQ
Q1: What measurement applications is the PR6425/010‑A20 sensor designed for?
It is intended for non‑contact monitoring of shaft vibration, displacement, and position on rotating machinery.
Q2: What sensing technology does this probe use?
The sensor uses eddy current technology, detecting changes in distance between the probe and a conductive target surface.
Q3: What are the physical dimensions and size of the sensor?
The probe has a 16 mm diameter, about 69 mm length with M18×1.5 mounting thread; cable length varies by order.
Q4: What materials can the PR6425/010‑A20 measure effectively?
It performs best with conductive ferromagnetic materials such as alloy steels like 42CrMo4 or similar.
Q5: What temperature range can the sensor withstand?
It generally supports environments from about –35 °C up to ~380 °C (depending on cable and configuration).
Q6: What shaft size is recommended for accurate measurements?
A minimum shaft diameter of around 80 mm is recommended for proper measurement stability.
Q7: What environmental resistances does the sensor provide?
It typically handles shock/vibration around 5 g and pressures up to ~2000 hPa, with stainless steel housing and PTFE cable.
Q8: Does the PR6425/010‑A20 require a signal converter?
Yes, to condition the raw probe signal into usable output, it is usually paired with a compatible converter (e.g., CON021 series).
