Technical Specifications
| Parameter | Specification |
|---|---|

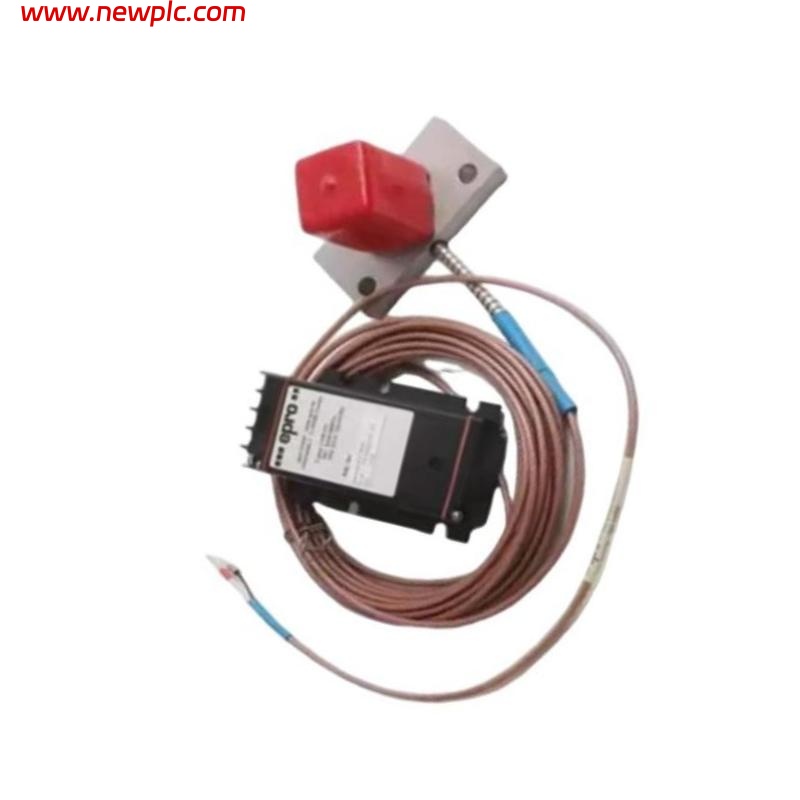

| Model | PR6426/00 Eddy Current Sensor |
| Sensor Type | Eddy current non-contact displacement and position sensor |
| Sensitivity | 2 V/mm (±1.5%) |
| Nominal Air Gap | Approx. 5.5 mm |
| Static Measurement Range | ±4.0 mm |
| Dynamic Measurement Range | ±4.0 mm |
| Target Material | Ferromagnetic steel (e.g., 42CrMo4) |
| Maximum Shaft Diameter | ≥ 200 mm |
| Operating Temperature | –35 °C to +180 °C (short excursions up to 200 °C) |
| Pressure Resistance | Up to ~6500 hPa |
| Shock / Vibration Resistance | 5 g @ 60 Hz |
| Frequency Range | 0–20,000 Hz (with compatible converter) |
| Weight (Sensor with 1 m Cable) | ~800 g |
| Dimensions | Ø32 mm × 120 mm total probe length including mounting head, mounting plate ~80 mm × 40 mm, connector LEMO or equivalent |
FAQ
FAQ
Q1: What is the PR6426/00 sensor used for?
It measures shaft displacement, position, and vibration non-contact in large rotating machinery like turbines, compressors, and pumps.
Q2: What measurement principle does the PR6426/00 use?
It uses eddy current technology, detecting changes in the conductive target’s position via electromagnetic fields.
Q3: What is the effective measurement range?
The linear range is ±4.0 mm from the nominal air gap.
Q4: What materials are compatible with the PR6426/00?
It works with ferromagnetic steel, typically 42CrMo4 or similar shaft steels.
Q5: What temperature range can the sensor handle?
Continuous operation from –35 °C to +180 °C, with short excursions up to 200 °C.
Q6: What shaft size is recommended for accurate measurement?
A minimum shaft diameter of ~200 mm is recommended.
Q7: Does the PR6426/00 require a signal converter?
Yes, it is usually paired with CON011, CON021, or similar eddy current signal converters.
Q8: What environmental resistances does the PR6426/00 have?
It withstands shocks/vibration around 5 g and pressure up to ~6500 hPa, suitable for harsh industrial environments.
