Technical Specifications
| Parameter | Description |
|---|---|

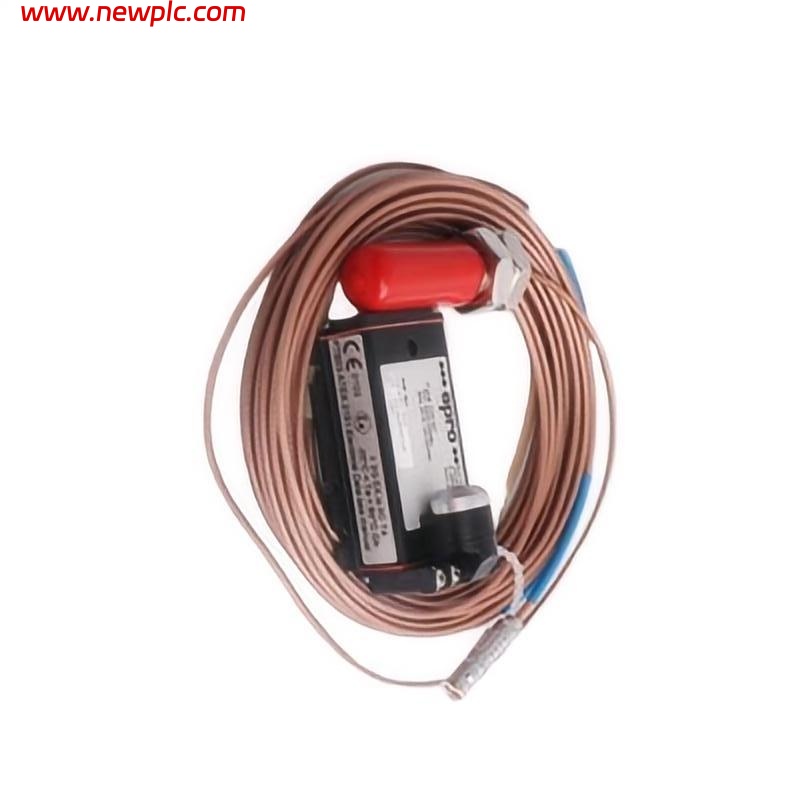

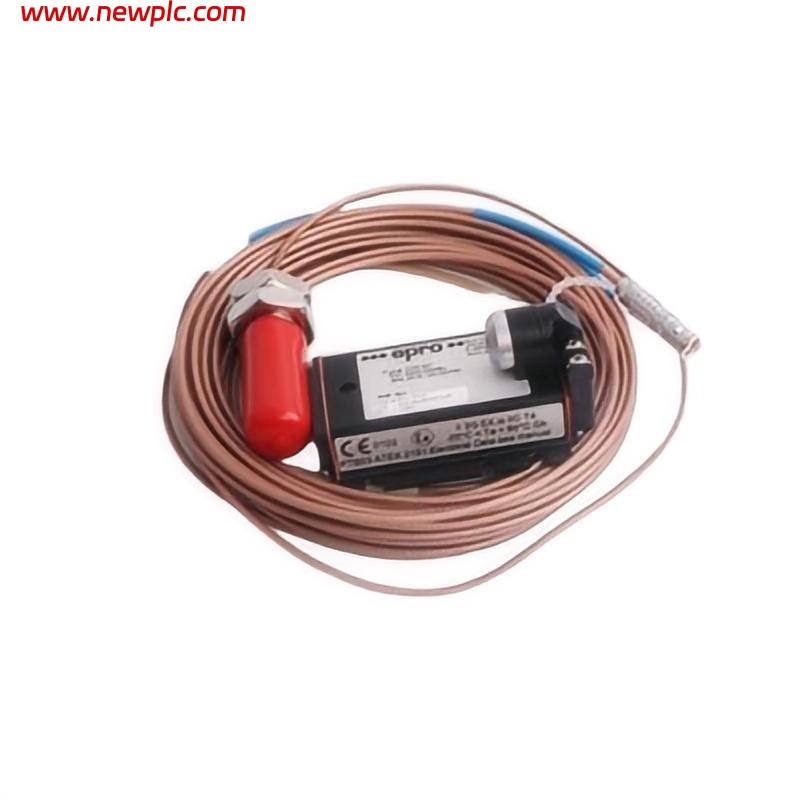

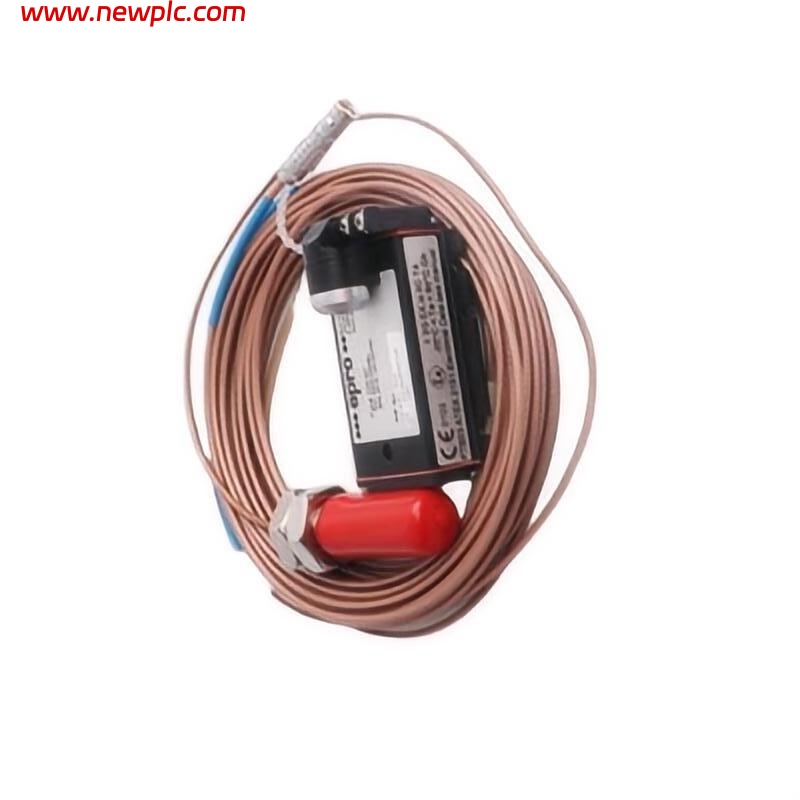

| Sensor Model | Epro PR6426/010-111 |
| Driver Model | CON031 (matched driver/conditioning unit) |
| Type | 32 mm Eddy Current Displacement/Vibration Sensor |
| Probe Diameter | 32 mm |
| Operating Principle | Non-contact eddy current |
| Measurement Range | 0 … 4.0 mm (wide-gap, large-shaft measurement) |
| Sensitivity | Approx. 3.94 mV/μm (with CON031) |
| Linearity | < 1% FS |
| Operating Temperature | -35°C to +180°C |
| Storage Temperature | -40°C to +200°C |
| Housing Material | Stainless steel |
| Cable Design | Integrated shielded cable |
| Cable Length | Approx. 10 m (variant-dependent) |
| Mounting | Threaded installation with 32 mm sleeve |
| Environmental Protection | Oil-resistant, vibration-resistant, EMI-resistant |
| Dimensions | Sensor head diameter 32 mm |
| Weight | 0.92 kg |
FAQ
FAQ
Q1: What is the difference between PR6426/010-111 and 010-110?
A1: Differences usually relate to cable insulation grade, variant-specific matching, or driver pairing requirements.
Q2: Must it be used with the CON031 driver?
A2: Yes, the CON031 is required to ensure correct sensitivity and calibration.
Q3: Is it suitable for large turbines or compressors?
A3: Yes, the 32 mm probe is designed for large-shaft and wide-gap applications.
Q4: Can the cable be replaced?
A4: No, it is a fully integrated cable structure.
Q5: Can it withstand high-temperature operation?
A5: Yes, continuous operation up to +180°C is supported.
Q6: Should the OEM mounting sleeve be used?
A6: Recommended to maintain correct linearity and gap geometry.
Q7: Is it compatible with VM600?
A7: Yes, provided the CON031 output matches the system input.
Q8: Can it be used for both axial and radial measurement?
A8: Yes, including axial displacement, radial vibration, and gap monitoring.
