Technical Specifications
| Parameter | Specification |
|---|---|

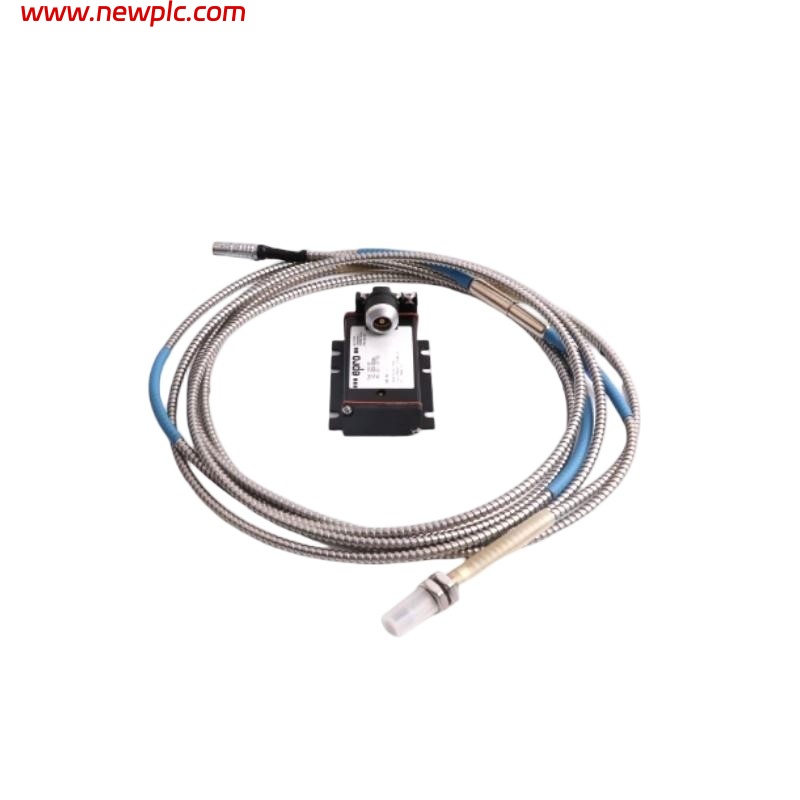

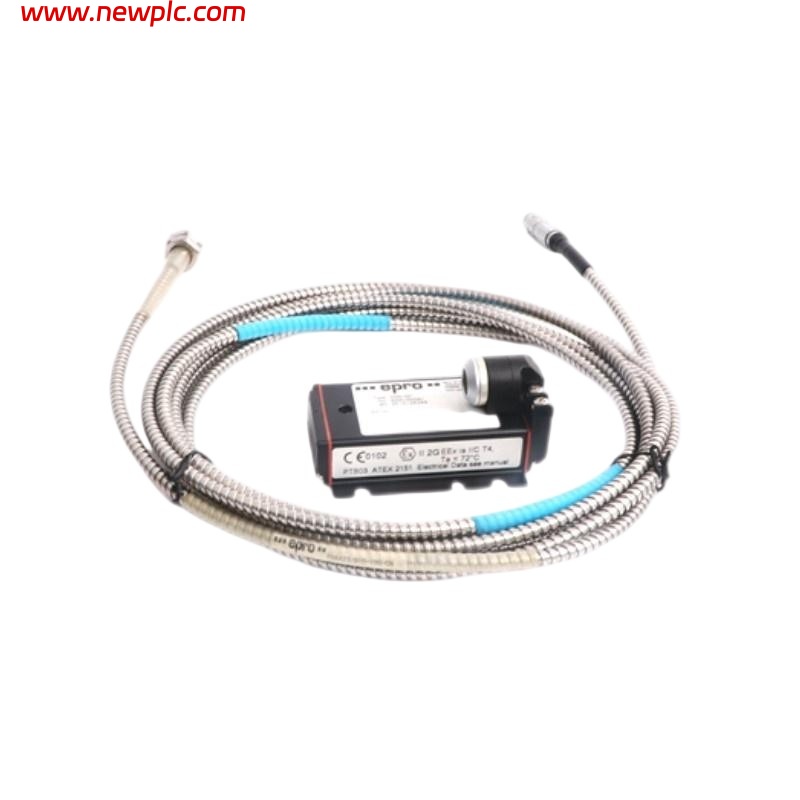

| Model | PR6480/001‑100 Eddy Current Sensor |
| Sensor Type | Eddy current non‑contact displacement/vibration sensor |
| Probe Head Diameter | Optional (standard ~8 mm) |
| Measurement Principle | Eddy current induction non‑contact measurement |
| Measuring Range | Defined by connected converter and target setup |
| Linearity | < ±1% full scale typical |
| Frequency Response | DC to ~5 kHz typical |
| Output Signal | Voltage or current output depending on converter used |
| Operating Temperature Range | −35 °C to +150 °C |
| Storage Temperature Range | −40 °C to +180 °C |
| Target Material | Ferromagnetic conductive surfaces (shafts, collars) |
| Housing Material | Stainless steel probe body |
| Mounting Type | Threaded or flange mount |
| Protection Class | IP65 when assembled with sensor head |
| Vibration Resistance | Up to ~20 g peak |
| Shock Resistance | Up to ~30 g peak |
| Weight | Approx. 3 kg (full assembly) |
| Dimensions | Sensor assembly approx. 120 mm × 40 mm × 35 mm (L×W×H) |
FAQ
FAQ
Q1: What is the PR6480/001‑100 sensor used for?
It measures non‑contact shaft displacement and vibration by detecting changes in eddy current induced by target movement.
Q2: What technology does this sensor employ?
It operates on eddy current induction, generating a proportional electrical signal based on target distance.
Q3: What is the typical frequency response of this model?
The sensor supports measurements from DC up to about 5 kHz.
Q4: What materials work best with this sensor?
It is optimized for conductive ferromagnetic materials like steel shafts and collars.
Q5: What temperature conditions can it withstand?
It works reliably between −35 °C and +150 °C industrial operating environments.
Q6: Is a signal converter required?
Yes — the raw sensor requires a compatible eddy current signal converter (e.g., CON021 series) for conditioning and usable output.
Q7: What kind of mounting does this sensor support?
It supports threaded or flange‑mount installation to ensure stable alignment with the measured shaft.
Q8: How robust is the PR6480/001‑100 sensor?
It is built with a stainless steel body, IP65 environmental protection (when assembled), and tolerances for industrial shock and vibration.
