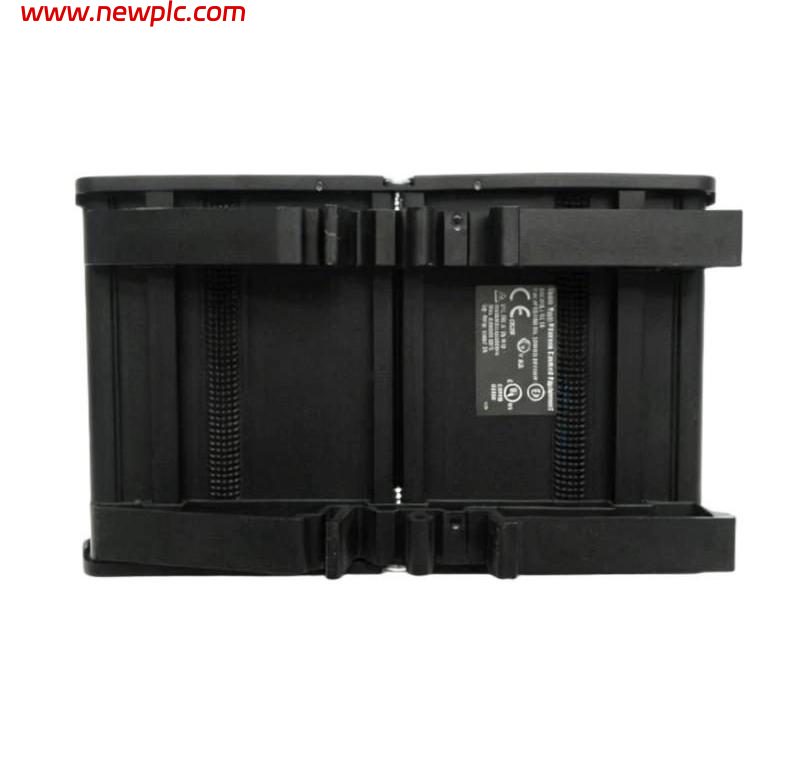

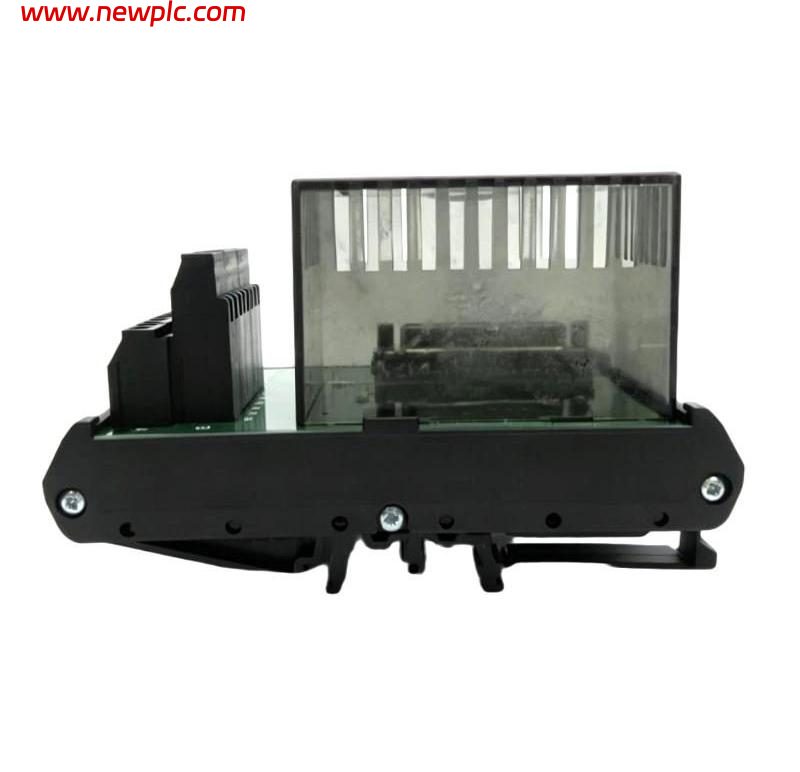

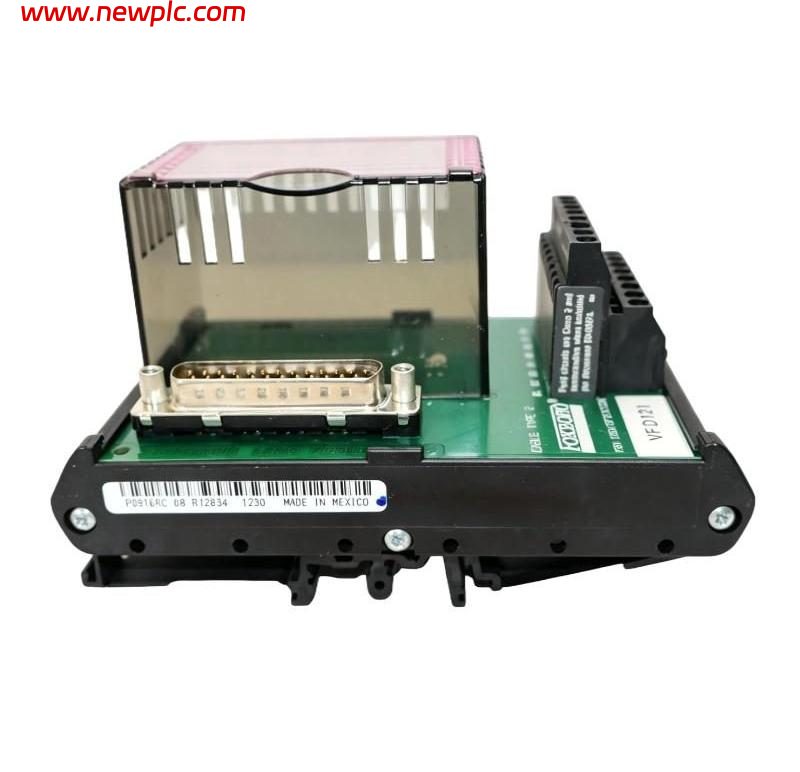

Foxboro FBM202 P0916AC Thermocouple/mV Input Field Terminal Assembly

FAQ

Q1: What is Foxboro FBM202 P0916AC?
A: P0916AC is the DIN-rail mounted compression-type Field Terminal Assembly (TA) used with the Foxboro FBM202 Thermocouple/mV Input Module.

Q2: Is P0916AC the FBM202 electronic module?
A: No. P0916AC is the Field Terminal Assembly. The electronic signal processing is performed by the FBM202 module.

Q3: How many channels does P0916AC support?
A: It provides termination for 8 thermocouple/mV input channels associated with the FBM202.

Q4: What type of terminals does P0916AC use?
A: P0916AC uses compression screw terminals and is mounted on a DIN rail. The alternative ring-lug version is P0916AD.

Q5: Does P0916AC provide reference-junction compensation?
A: Yes. The FBM202 termination assembly incorporates a 4-wire 100 Ω platinum RTD, IEC 751 Class B, which provides reference-junction temperature compensation.

Q6: How is P0916AC connected to the FBM202?
A: A removable termination cable connects the DIN-rail mounted TA to the FBM202 through the field connector on the FBM baseplate. Cables are available in lengths up to 30 m (98 ft).

Q7: What are the dimensions and weight?
A: The termination assembly is approximately 125 × 69.8 × 75 mm (L × W × H) and weighs approximately 0.35 kg.

Q8: Is P0916AC still the current part number?
A: It is an earlier Foxboro part number. RH916XH supersedes P0916AC and P0916XH for the FBM202 thermocouple/mV termination application.
