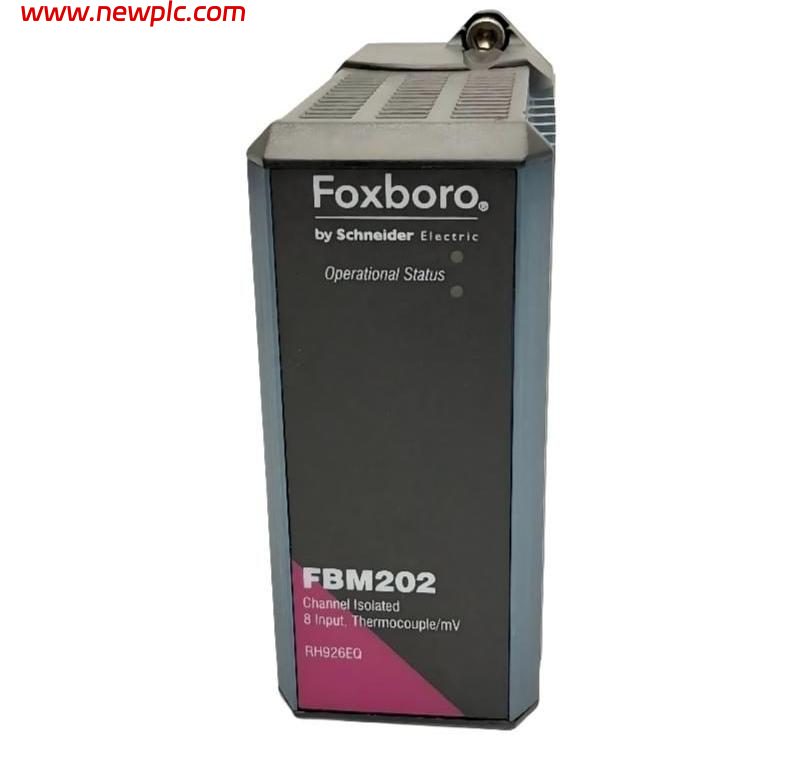

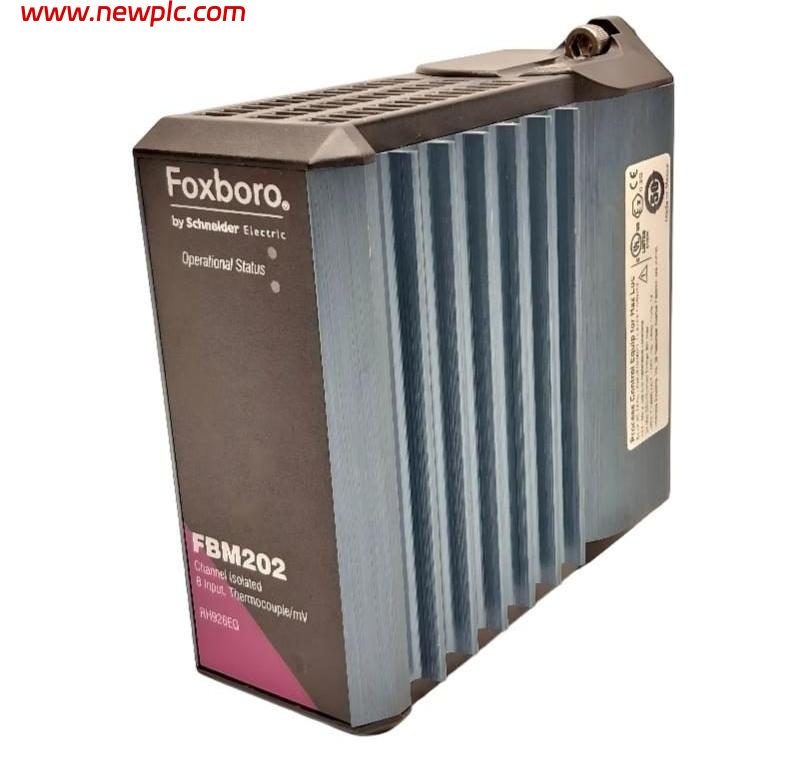

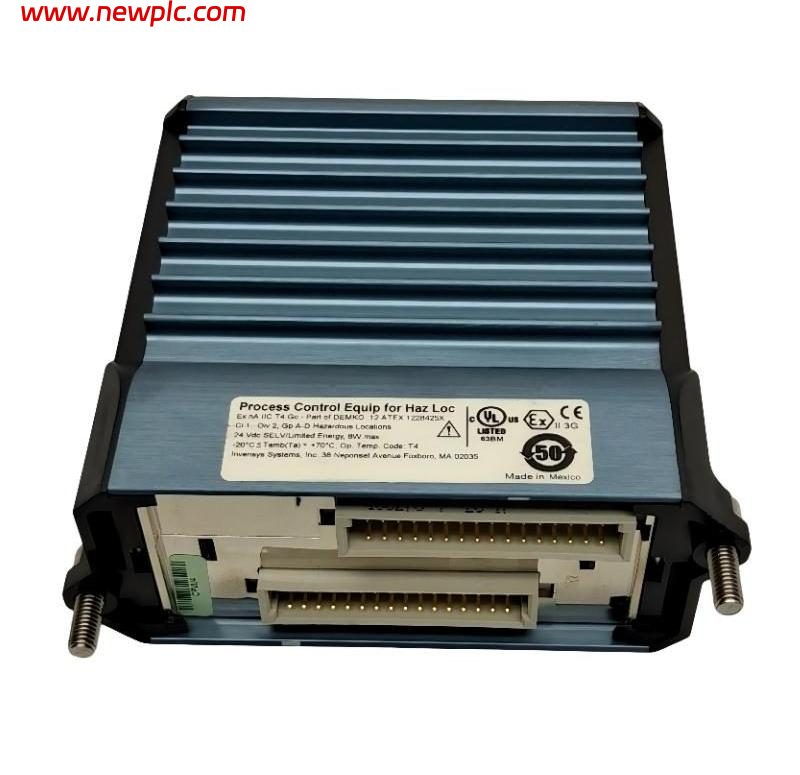

Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Foxboro (Schneider Electric / Invensys) |
| Model | FBM202 |
| Product Number | RH926EQ |
| Previous Part Number | P0926EQ |
| Product Type | Thermocouple/mV Input Interface Module |
| System | Foxboro I/A Series / Standard 200 Series |
| Input Channels | 8 isolated and independent thermocouple/mV input channels |
| Reference Junction | 1 isolated RTD reference-junction compensation channel |
| Input Range | -10.5 to +69.5 mV DC |
| Input Impedance | 10 MΩ differential |
| Input Isolation | Galvanically isolated between channels and ground |
| Burnout Detection | Upscale thermocouple burnout detection |
| Conversion | Sigma-delta A/D conversion |
| Input Accuracy | ±0.03% of span (±24 μV) at 25°C for mV input |
| Fieldbus Communication | Redundant 2 Mbps HDLC Module Fieldbus |
| Power Supply | 24 VDC (+5%, -10%), redundant input |
| Maximum Power Consumption | 3 W |
| Mounting | Standard 200 Series baseplate |
| Operating Temperature | -20 to +70°C |
| Relative Humidity | 5–95%, non-condensing |
| Dimensions (L × W × H) | 104 × 45 × 102 mm |
| Dimensions with Mounting Lugs | 104 × 45 × 114 mm |
| Approx. Weight | 0.284 kg |
| Origin | USA |
FAQ
FAQ
Q1: What is Foxboro FBM202 RH926EQ?
A: It is a Thermocouple/mV Input Interface Module used in Foxboro I/A Series and Standard 200 Series control systems.
Q2: How many input channels does RH926EQ provide?
A: The FBM202 provides 8 isolated and independent thermocouple/mV input channels.
Q3: What signals can RH926EQ accept?
A: It accepts standard thermocouple signals and millivolt-level input signals, with an electrical input range of approximately -10.5 to +69.5 mV DC.
Q4: Does the FBM202 provide reference-junction compensation?
A: Yes. It includes one isolated RTD reference-junction compensation channel for terminal-temperature sensing.
Q5: Are the input channels isolated?
A: Yes. Each input channel is galvanically isolated from the other channels and from ground, providing improved signal integrity in industrial applications.
Q6: Does RH926EQ support thermocouple burnout detection?
A: Yes. Each thermocouple/mV channel provides upscale thermocouple burnout detection for identifying an open thermocouple circuit.
Q7: What are the dimensions and weight of RH926EQ?
A: The module measures approximately 104 × 45 × 102 mm (L × W × H), or 104 × 45 × 114 mm including mounting lugs, and weighs approximately 0.284 kg.
Q8: Is RH926EQ a replacement for P0926EQ?
A: Yes. RH926EQ supersedes P0926EQ and belongs to the same FBM202 Thermocouple/mV Input Module family.
