Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Foxboro (Schneider Electric / Invensys) |

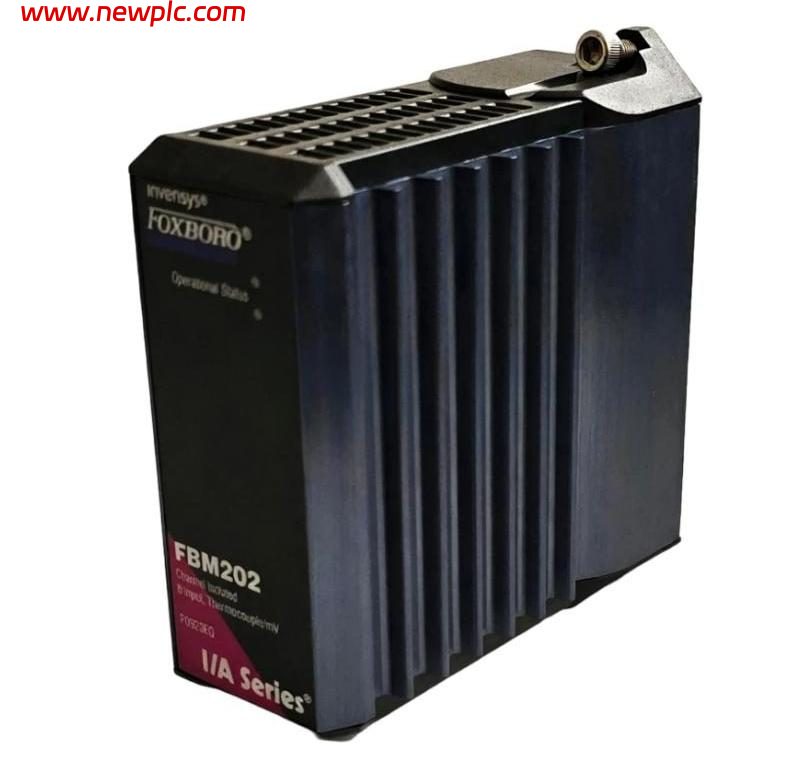

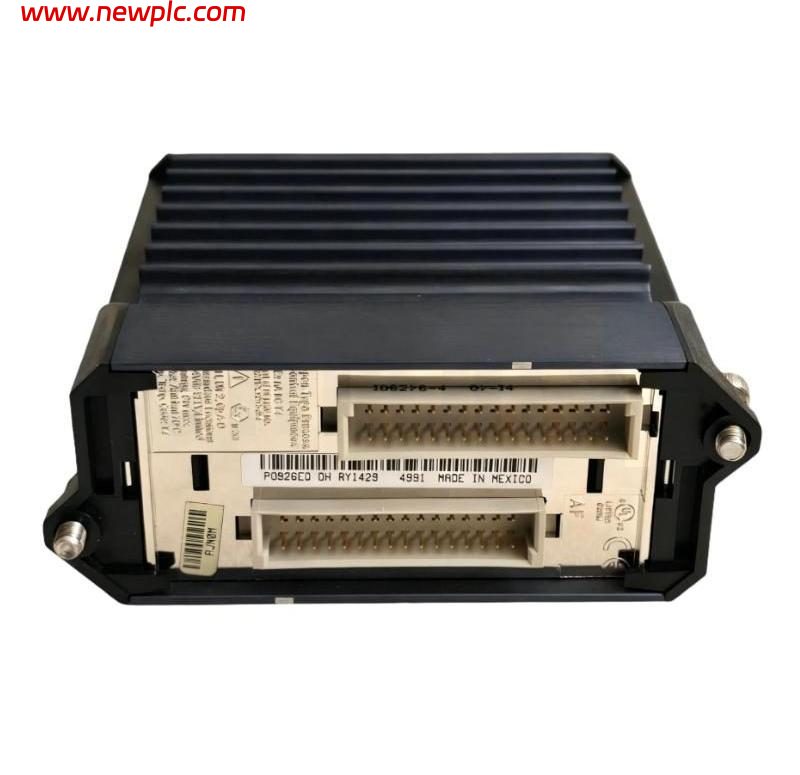

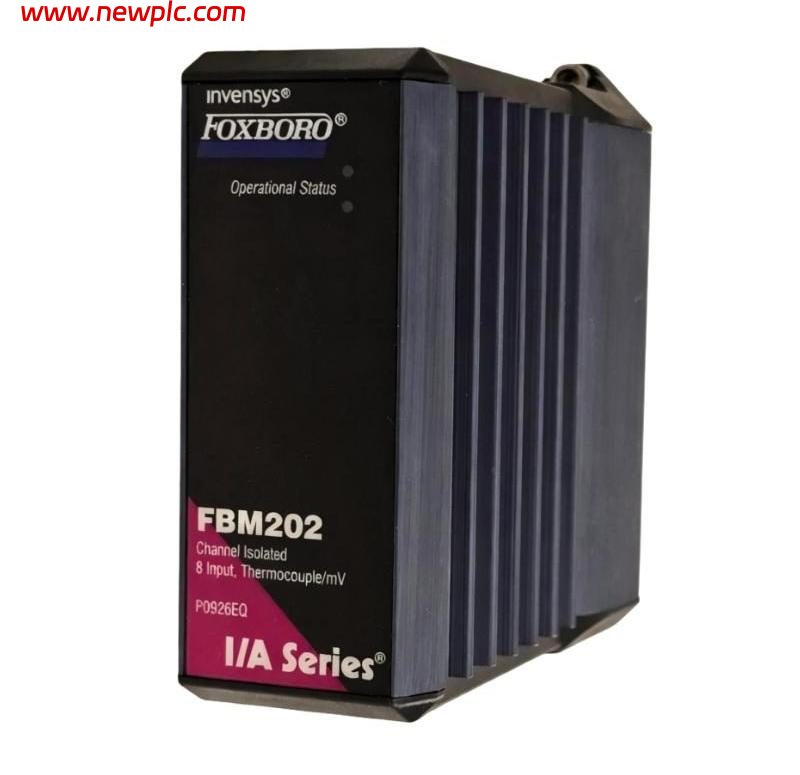

| Model | FBM202 |
| Product Number | P0926EQ |
| Product Type | Thermocouple/mV Input Interface Module |
| System | Foxboro I/A Series / Standard 200 Series |
| Input Channels | 8 isolated thermocouple/mV inputs |
| Supported Inputs | Standard thermocouple signals and mV signals |
| Reference Junction | 1 isolated RTD reference-junction compensation channel |
| Input Isolation | Galvanically isolated between channels and ground |
| Burnout Detection | Upscale thermocouple burnout detection |
| Input Impedance | 10 MΩ differential |
| Input Range | Approx. -10.5 to +69.5 mV, depending on configured thermocouple range |
| Data Conversion | Sigma-delta A/D conversion |
| Integration Period | Software configurable |
| Fieldbus Communication | Redundant 2 Mbps HDLC Module Fieldbus |
| Power Supply | 24 VDC (+5%, -10%), redundant input |
| Maximum Power Consumption | 3 W |
| Heat Dissipation | 3 W maximum |
| Mounting | Compact 200 Series baseplate / DIN-rail termination assembly |
| Operating Environment | Suitable for Class G3 harsh environments |
| Dimensions (L × W × H) | Approx. 150 × 25 × 130 mm |
| Approx. Weight | 0.284 kg |
| Origin | USA |
FAQ
FAQ
Q1: What is Foxboro FBM202 P0926EQ?
A: It is a Thermocouple/mV Input Interface Module for the Foxboro I/A Series and Standard 200 Series control systems.
Q2: How many input channels does FBM202 provide?
A: The FBM202 provides 8 isolated input channels for thermocouple and millivolt signals.
Q3: What type of signals can P0926EQ measure?
A: It accepts standard thermocouple signals and mV-level analog signals. The supported thermocouple range depends on the thermocouple type and software configuration.
Q4: Does P0926EQ provide cold-junction compensation?
A: Yes. The module has one isolated RTD reference-junction compensation channel for terminal-temperature measurement.
Q5: Are the thermocouple input channels isolated?
A: Yes. Each input channel is galvanically isolated from the other channels and from ground, helping reduce interference and ground-loop problems.
Q6: Does the module have thermocouple burnout detection?
A: Yes. The FBM202 provides upscale thermocouple burnout detection to help identify an open thermocouple circuit.
Q7: What are the dimensions and weight of P0926EQ?
A: The module dimensions are approximately 150 × 25 × 130 mm (L × W × H), with an approximate weight of 0.284 kg.
Q8: Is P0926EQ still the current part number?
A: P0926EQ is the earlier part number. RH926EQ is the newer/superseding part number for the FBM202 Thermocouple/mV Input Module.
