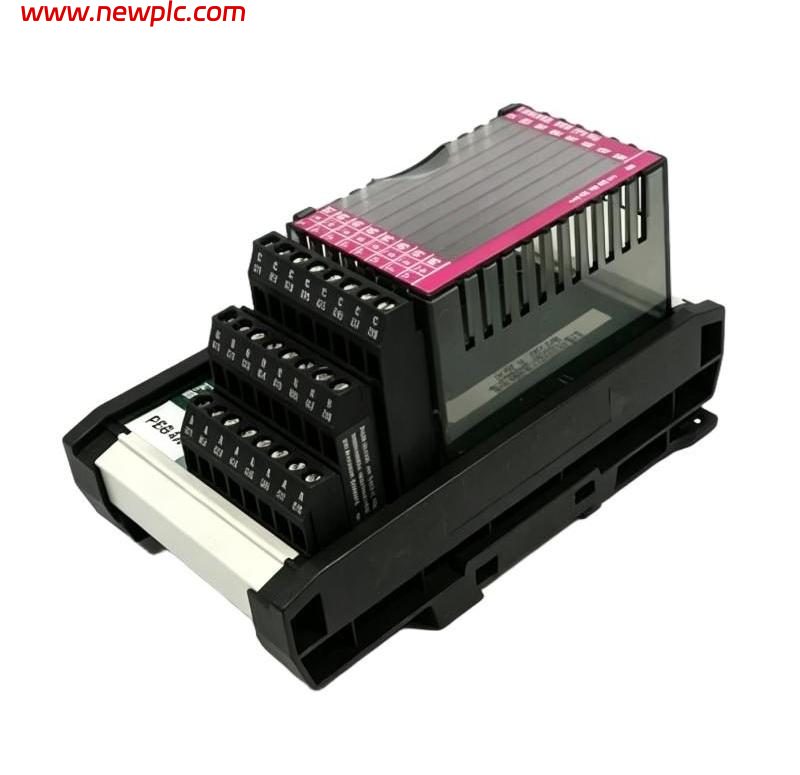

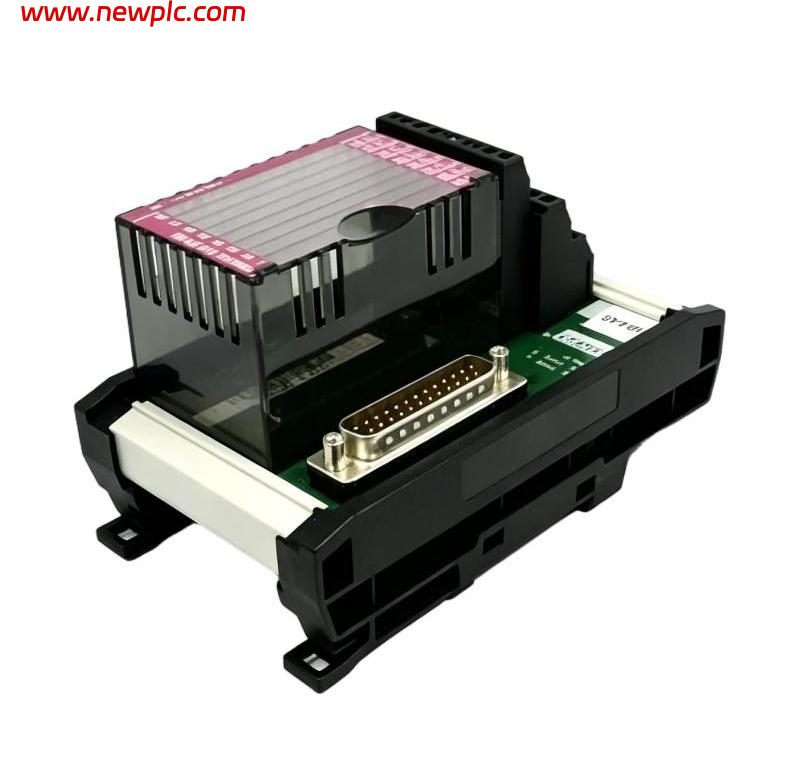

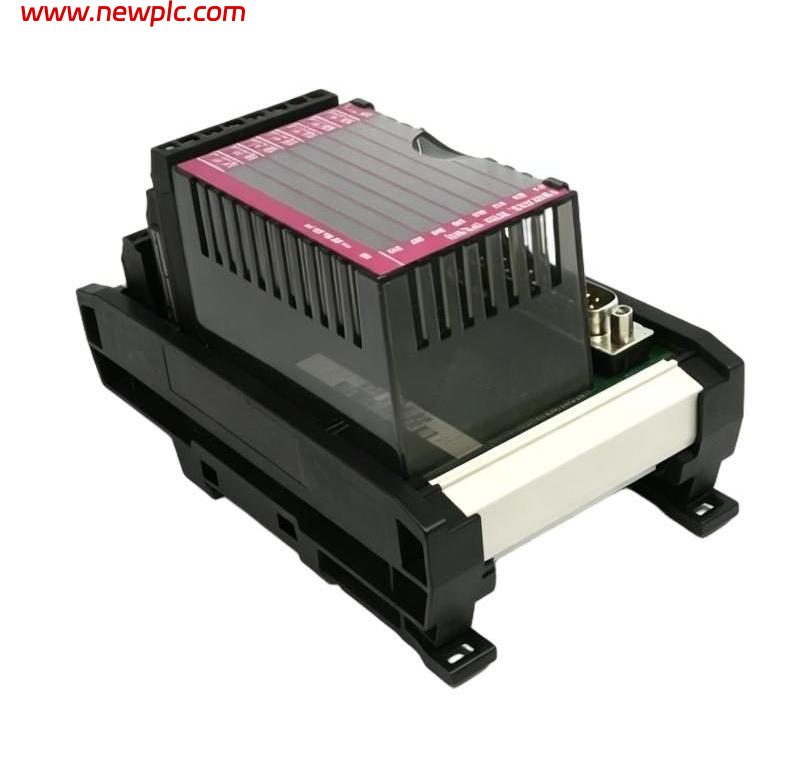

Foxboro FBM203 RH916XJ RTD Input Field Terminal Assembly

FAQ

Q1: What is Foxboro FBM203 RH916XJ?
A: It is an RTD Input Field Terminal Assembly with compression screw terminals, designed for the Foxboro FBM203 family.

Q2: Is RH916XJ the electronic FBM203 module?
A: No. RH916XJ is the field terminal assembly. The FBM203 performs the electronic signal conversion and channel isolation.

Q3: How many RTD channels does RH916XJ support?
A: It provides termination for 8 RTD input channels. For the standard FBM203, the input resistance range is 0–320 Ω.

Q4: What type of terminals does RH916XJ use?
A: It uses compression screw terminals and is designed for DIN-rail mounting.

Q5: What is the main function of RH916XJ?
A: It provides a convenient field-wiring termination point and passively feeds RTD signals to the FBM203, where the signals are isolated and processed.

Q6: What termination cable is required?
A: The FBM203/RH916XJ configuration uses a Type 1 termination cable, with cable lengths available up to 30 m (98 ft).

Q7: What are the dimensions and weight of RH916XJ?
A: The nominal dimensions are 125 × 80 × 72 mm (L × W × H), with an approximate weight of 0.35 kg. Foxboro’s dimensional drawing confirms the 125 mm × 80 mm × 72 mm envelope.

Q8: Is RH916XJ a replacement for P0916AE?
A: Yes. RH916XJ supersedes P0916AE and P0916XJ for the FBM203-family compression termination application.
