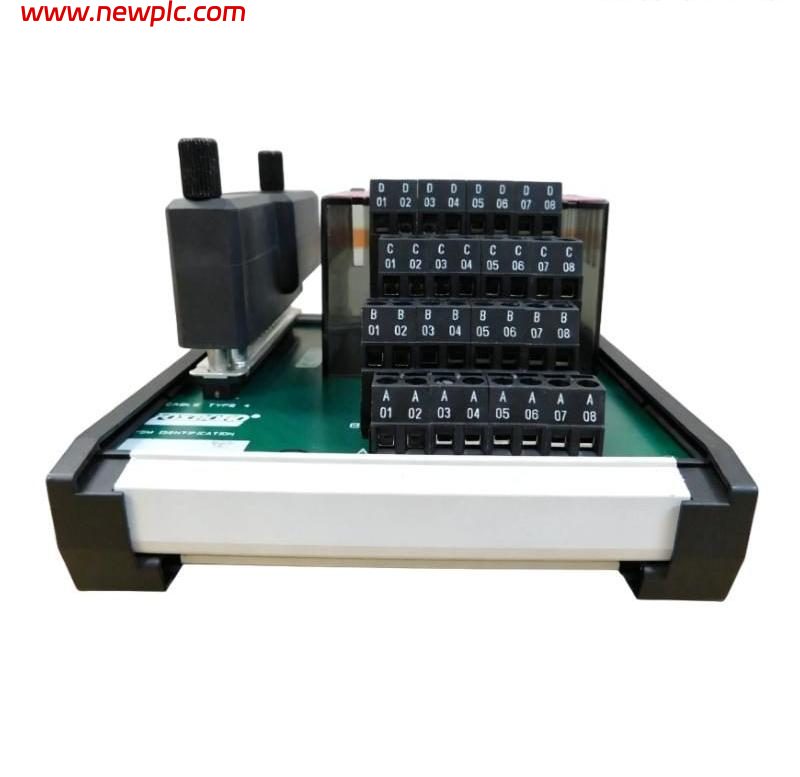

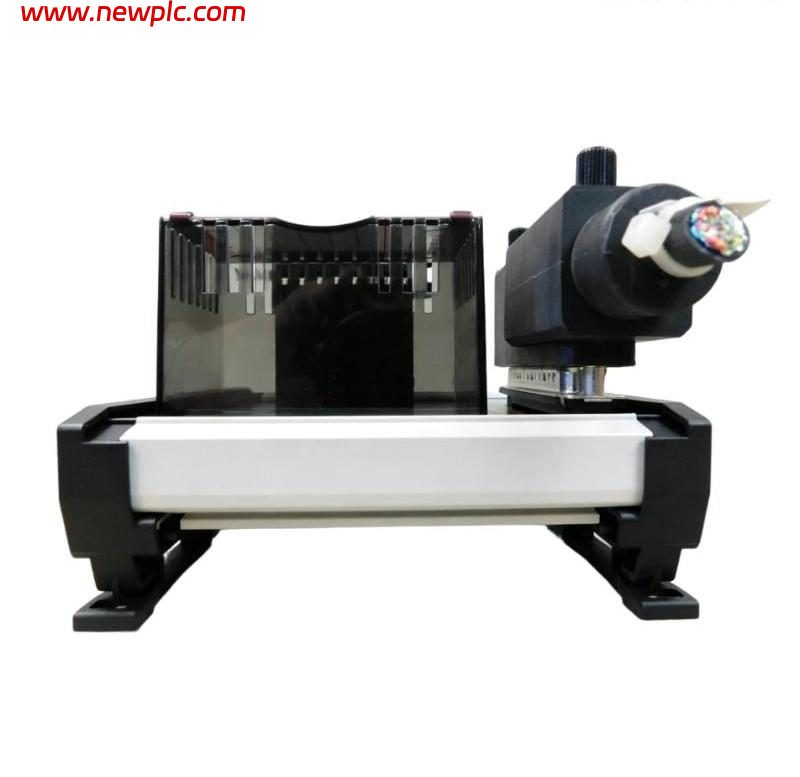

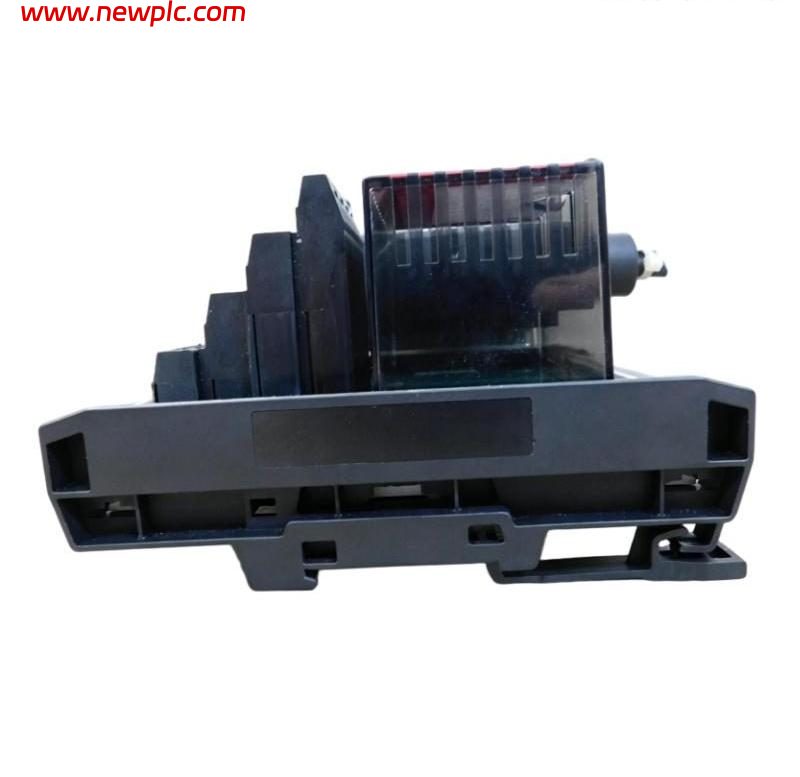

Foxboro FBM203d P0924EX RTD Input Field Terminal Assembly

FAQ

Q1: What is Foxboro FBM203d P0924EX?
A: It is a compression-type RTD Field Terminal Assembly designed for the Foxboro FBM203d module.

Q2: Is P0924EX the electronic FBM203d module?
A: No. P0924EX is the Field Terminal Assembly. The FBM203d performs the electronic signal conversion and channel isolation.

Q3: How many RTD channels does P0924EX support?
A: It provides field termination for 8 RTD input channels associated with the FBM203d.

Q4: What type of RTD input does the FBM203d use?
A: The FBM203d is designed for 4-wire RTD sensors with an input resistance range of 0–320 Ω.

Q5: What type of terminals does P0924EX use?
A: P0924EX uses compression screw terminals for field wiring connections.

Q6: What termination cable is used with P0924EX?
A: The FBM203d uses a Type 4 termination cable, with available cable lengths up to 30 m (98 ft). The FBM203d side uses a 37-pin D-subminiature connection.

Q7: What are the dimensions and weight of P0924EX?
A: The approximate dimensions are 125 × 80 × 72 mm (L × W × H), with an approximate weight of 0.35 kg.

Q8: Is P0924EX still the current part number?
A: P0924EX is the earlier part number. RH924EX is the current/superseding Field Terminal Assembly for the FBM203d compression-terminal application.
