Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Foxboro (Schneider Electric / Invensys) |
| Model | FBM207 |
| Product Number | P0916AL |
| Current / Superseding Part Number | RH916XN |

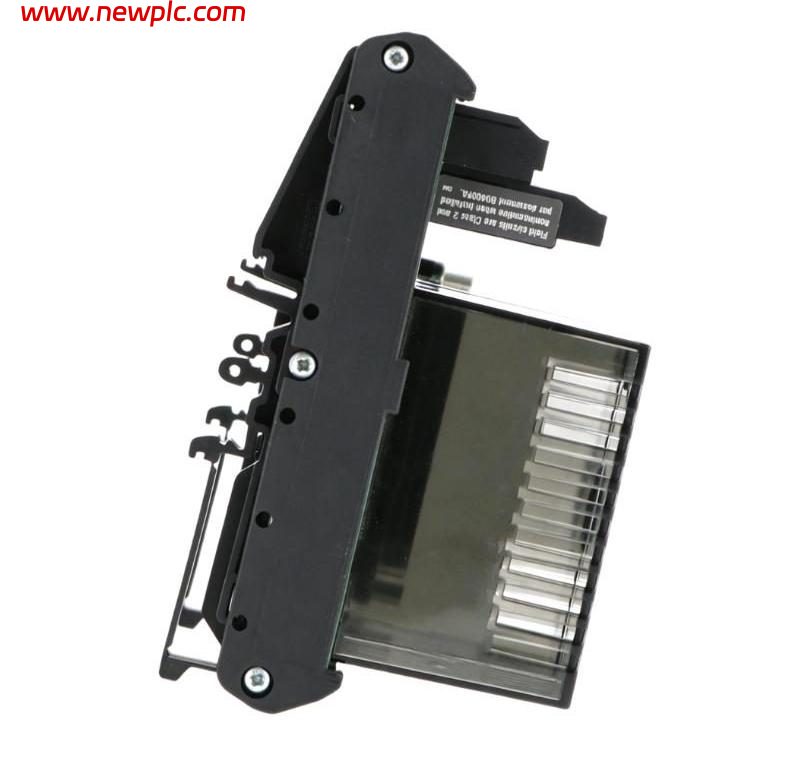

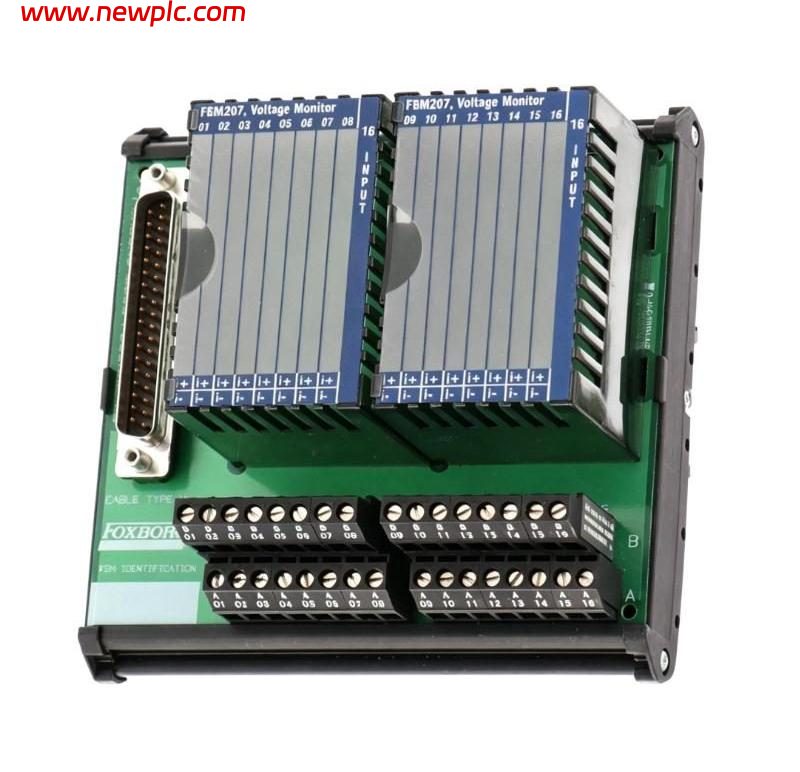

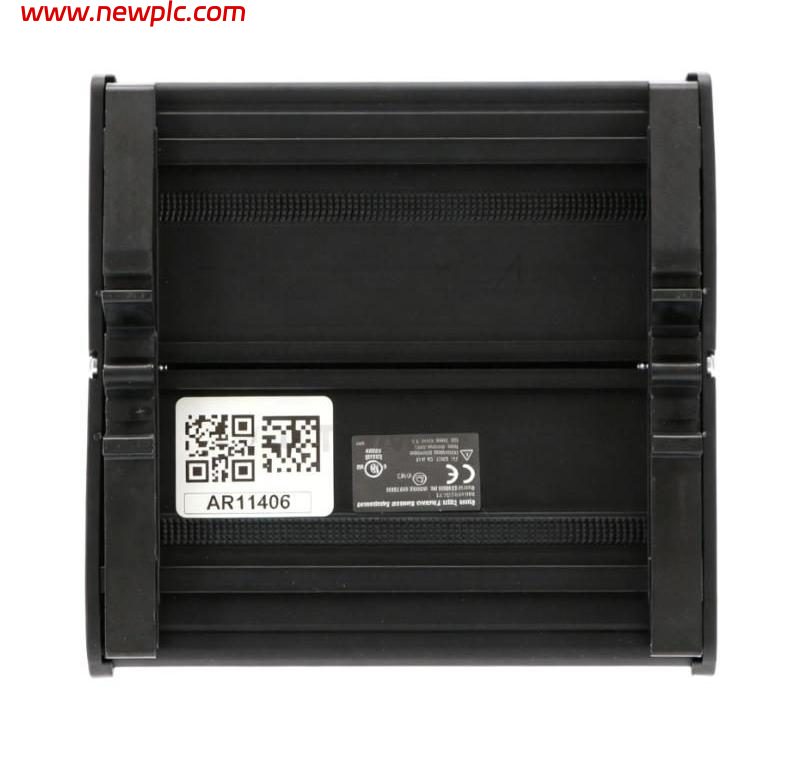

| Product Type | Voltage Monitor Input Field Terminal Assembly |
| System | Foxboro I/A Series / Standard 200 Series |
| Compatible Module | FBM207 |
| Input Channels | 16 |
| Input Type | DC Voltage Monitor |
| Input Voltage | 15–60 VDC |
| Logic One / ON-State | 15–60 VDC |
| Logic Zero / OFF-State | 0–5 VDC |
| Input Current | 1.4 mA typical at 5–60 VDC |
| Source Resistance | 1 kΩ maximum at 15 VDC; 100 kΩ minimum at 60 VDC |
| Channel Isolation | FBM207 channel isolation |
| Terminal Type | Compression screw terminals |
| Main Function | Provides field-wiring termination and signal connection for the FBM207 voltage-monitor inputs |
| Termination Cable | Type 4 |
| Maximum Cable Length | Up to 30 m (98 ft) |
| Mounting | DIN rail mounted |
| Housing Material | Polyamide (PA) |
| Operating Temperature | -20 to +70°C (-4 to +158°F) |
| Dimensions (L × W × H) | Approx. 127 × 80 × 72 mm |
| Approx. Weight | 0.272 kg |
| Origin | USA |
FAQ
FAQ
Q1: What is Foxboro FBM207 P0916AL?
A: P0916AL is a Voltage Monitor Input Field Terminal Assembly designed for the Foxboro FBM207 module.
Q2: Is P0916AL the electronic FBM207 module?
A: No. P0916AL is the field terminal assembly. The FBM207 performs the electronic voltage monitoring and channel isolation.
Q3: How many channels does P0916AL support?
A: It provides field termination for 16 voltage-monitor input channels.
Q4: What voltage range does P0916AL support?
A: The associated FBM207 configuration monitors 15–60 VDC. A voltage of 15–60 VDC represents the ON-state, while 0–5 VDC represents the OFF-state.
Q5: What type of terminals does P0916AL use?
A: P0916AL uses compression screw terminals for field wiring and is designed for DIN-rail mounting.
Q6: What termination cable is used with P0916AL?
A: The assembly uses a Type 4 termination cable, with available cable lengths up to 30 m (98 ft).
Q7: What are the dimensions and weight of P0916AL?
A: The approximate dimensions are 127 × 80 × 72 mm (L × W × H), with an approximate weight of 0.272 kg. The dimensional specification lists 127 mm overall width and 72 mm height above the DIN rail.
Q8: Is P0916AL still the current part number?
A: P0916AL is an earlier part number. RH916XN is the current/superseding PA compression termination assembly for the FBM207 15–60 VDC voltage-monitor application.
