Technical Specifications
| Parameter | Details |
|---|---|

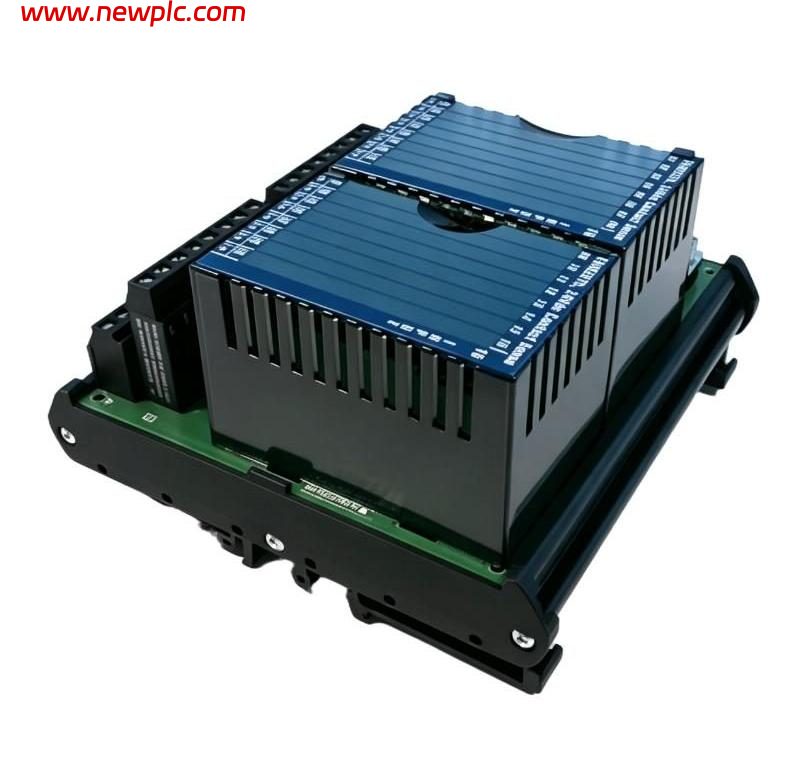

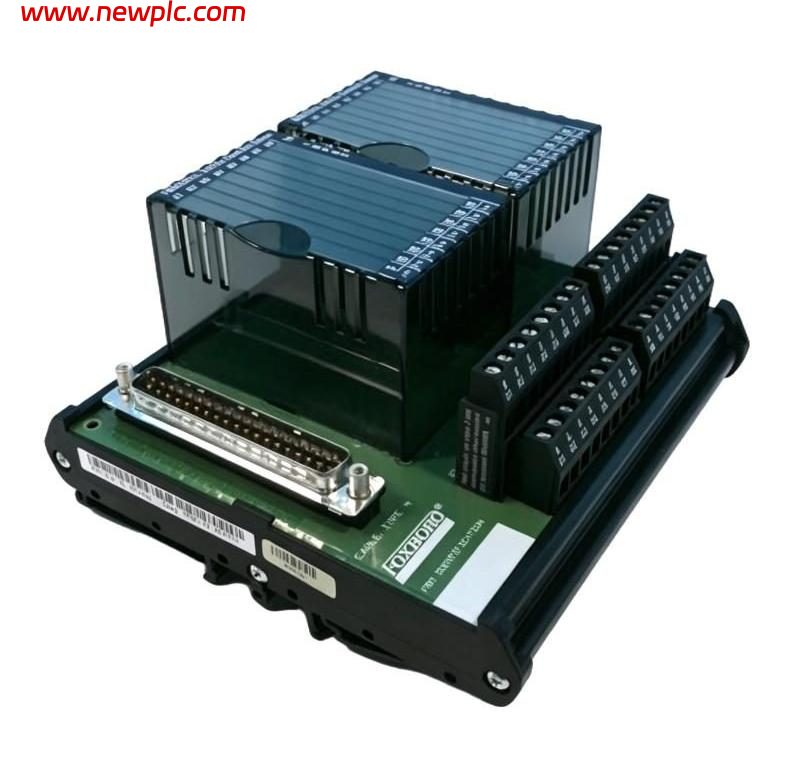

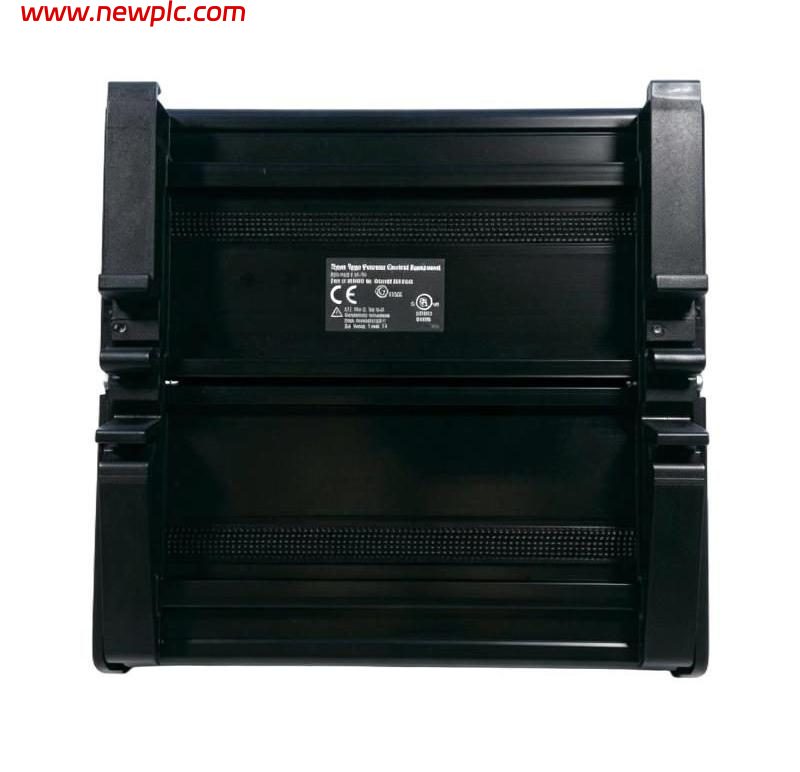

| Product | Foxboro FBM207b Contact Sense Input Interface Module |
| Part Number | P0916JS |
| Product Type | Contact Sense Input Interface Module / Termination Assembly |
| Series | Foxboro Compact 200 Series I/O |
| Input Channels | 16 discrete, isolated channels |
| Input Type | 24 V DC contact sense |
| Contact Sensor Function | Contact open (OFF) or closed (ON) |
| Open-Circuit Voltage | 24 V DC ±15% |
| Typical Short-Circuit Current | 3.2 mA |
| Logic ON Resistance | 1.0 kΩ maximum |
| Logic OFF Resistance | 100 kΩ minimum |
| Channel Isolation | Each channel is galvanically isolated from other channels and ground |
| Communication | Redundant 2 Mbps module Fieldbus |
| Filter / Debounce Time | Configurable: No Filtering, 4, 8, 16, or 32 ms |
| Pulse Count | 0 to 250 Hz without missing pulses |
| Power Supply | 24 V DC, +5% / -10% |
| Maximum Power Consumption | 5 W |
| Operating Temperature | -20 to +60°C (-4 to +140°F) |
| Relative Humidity | 5 to 95%, non-condensing |
| Mounting | DIN rail or rack-mounted Compact 200 Series baseplate |
| Wiring Connection | 37-pin D-sub termination cable connection |
| Compatible Module | Compact FBM207b |
| Termination Type | Compression terminal |
| Dimensions | 130 H × 25 W × 150 D mm, including baseplate connectors |
| Weight | Approx. 185 g for the FBM207b module |
| Environmental Class | Suitable for Class G3 harsh environments |
| Redundancy | Supports single-module or redundant-pair operation |
FAQ
FAQ
Q1: What is the Foxboro FBM207b P0916JS used for?
A: The P0916JS is used with the Compact FBM207b system for connecting field contact signals to the Foxboro I/O subsystem. It is designed for 16-channel, 24 V DC contact-sense inputs.
Q2: How many input channels does the FBM207b support?
A: The FBM207b provides 16 independent discrete input channels. Each channel can accept a pair of contacts or a solid-state switch.
Q3: What input voltage does the FBM207b use?
A: The contact-sense input uses a 24 V DC signal. The open-circuit voltage is specified as 24 V DC ±15%.
Q4: Are the individual input channels isolated?
A: Yes. Each input channel is galvanically isolated from the other channels and from ground, helping reduce the effect of electrical interference between field signals.
Q5: Can the FBM207b be used in a redundant configuration?
A: Yes. The Compact FBM207b can operate as a single module or as part of a redundant pair. A redundant adapter is used when two modules share the same field termination arrangement.
Q6: What is the operating temperature range?
A: The FBM207b module is specified for operation from -20°C to +60°C (-4°F to +140°F). The applicable temperature rating for the P0916JS termination assembly depends on its material and configuration.
Q7: What are the dimensions and weight of the FBM207b module?
A: The module is approximately 130 mm high × 25 mm wide × 150 mm deep, including the baseplate connectors. Its approximate mass is 185 g.
Q8: Does the P0916JS require calibration?
A: No. The manufacturer’s specifications state that calibration of the module and termination assembly is not required.
