Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Foxboro (Schneider Electric / Invensys) |

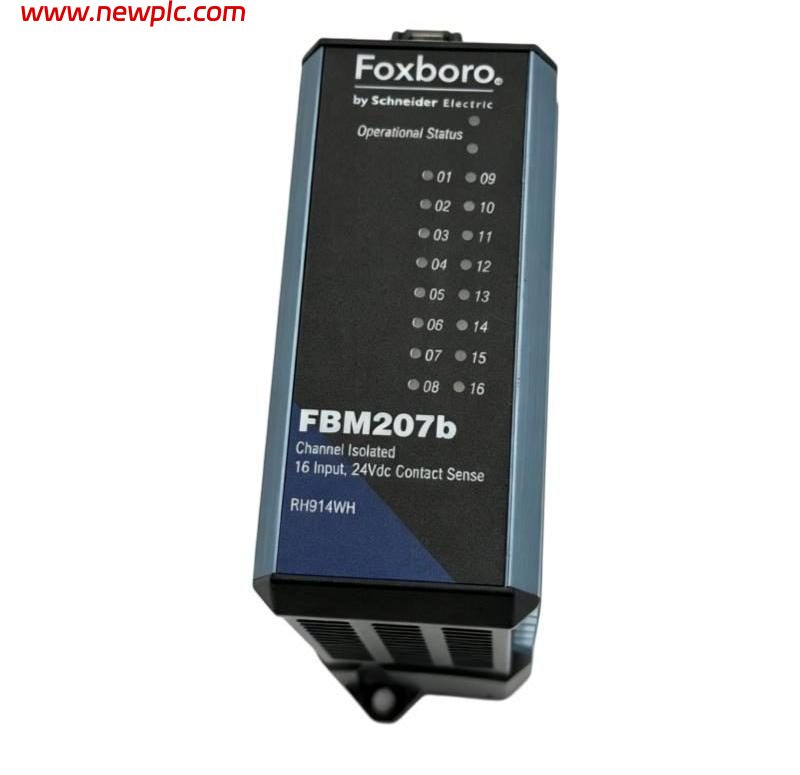

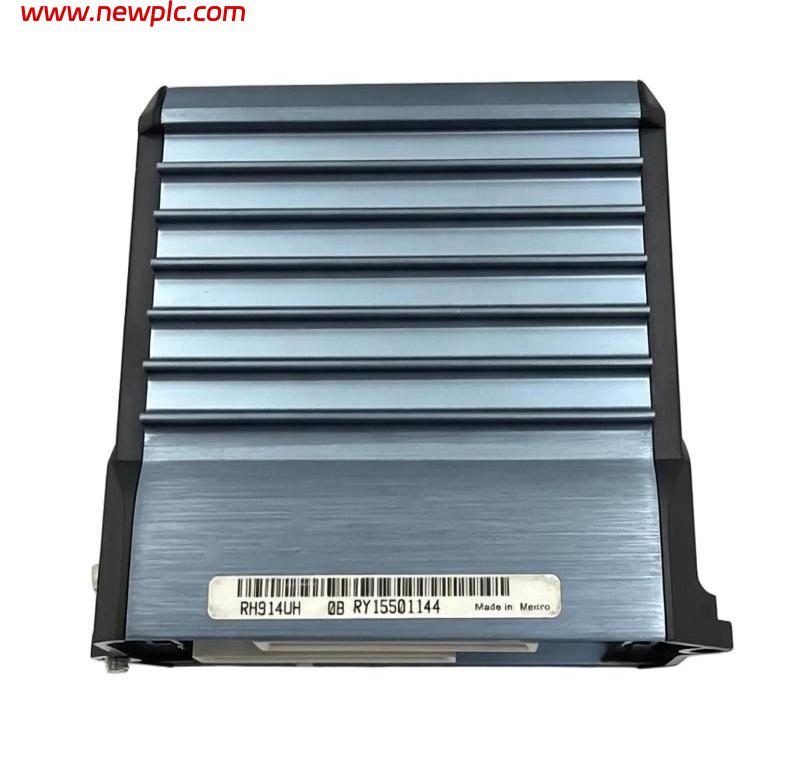

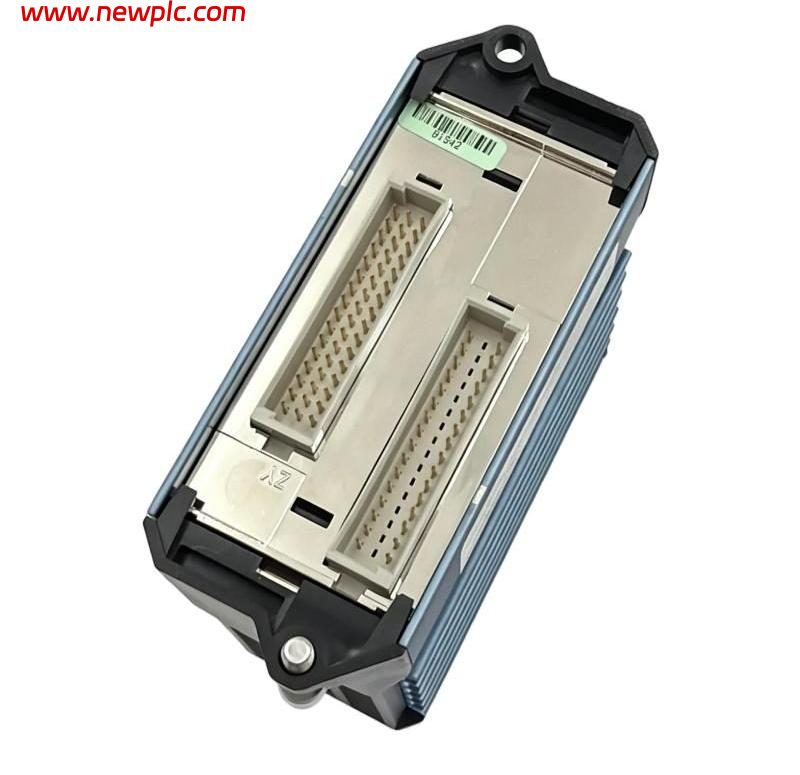

| Model | FBM207b |
| Product Number | RH914WH |
| Previous Part Number | P0914WH |
| Product Type | Contact Sense Input Interface Module |
| System | Foxboro I/A Series / Standard 200 Series |
| Input Channels | 16 isolated and independent channels |
| Input Type | 24 VDC contact sense input |
| Open-Circuit Voltage | 24 VDC ±15% |
| Short-Circuit Current | 3.2 mA typical |
| Logic 1 (ON) | 1.0 kΩ maximum contact resistance |
| Logic 0 (OFF) | 100 kΩ minimum contact resistance |
| Input Filtering | No filtering, 4 ms, 8 ms, 16 ms or 32 ms |
| Pulse Counting | Up to 250 Hz without missing pulses |
| Channel Isolation | Galvanically isolated between channels and ground |
| Fieldbus Communication | Redundant 2 Mbps HDLC Module Fieldbus |
| Power Supply | 24 VDC (+5%, -10%), redundant input |
| Maximum Power Consumption | 5 W |
| Mounting | Standard 200 Series modular baseplate |
| Operating Temperature | -20 to +60°C |
| Relative Humidity | 5–95%, non-condensing |
| Dimensions (L × W × H) | 104 × 45 × 102 mm |
| Dimensions with Mounting Lugs | 104 × 45 × 114 mm |
| Approx. Weight | 0.284 kg |
| Origin | USA |
FAQ
FAQ
Q1: What is Foxboro FBM207b RH914WH?
A: RH914WH is a 16-channel Contact Sense Input Interface Module for Foxboro I/A Series and Standard 200 Series control systems.
Q2: How many input channels does RH914WH provide?
A: The FBM207b provides 16 isolated and independent discrete input channels.
Q3: What type of contact signals does RH914WH support?
A: It is designed for 24 VDC contact-sense inputs, with an open-circuit sensing voltage of approximately 24 VDC ±15%.
Q4: Are the input channels isolated?
A: Yes. The input channels are galvanically isolated from one another and from ground, which helps reduce interference between field signals.
Q5: Does RH914WH support input filtering?
A: Yes. The input filtering/debounce time can be configured as no filtering, 4 ms, 8 ms, 16 ms or 32 ms, depending on the application.
Q6: Can RH914WH be used for pulse counting?
A: Yes. The FBM207b supports pulse counting at rates up to approximately 250 Hz without missing pulses.
Q7: What are the dimensions and weight of RH914WH?
A: The module measures approximately 104 × 45 × 102 mm (L × W × H), or 104 × 45 × 114 mm including mounting lugs, and weighs approximately 0.284 kg.
Q8: Is RH914WH a replacement for P0914WH?
A: Yes. RH914WH is the newer/current part number corresponding to P0914WH for the FBM207b 16-channel 24 VDC contact-sense input module.
Tags
