Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Foxboro |

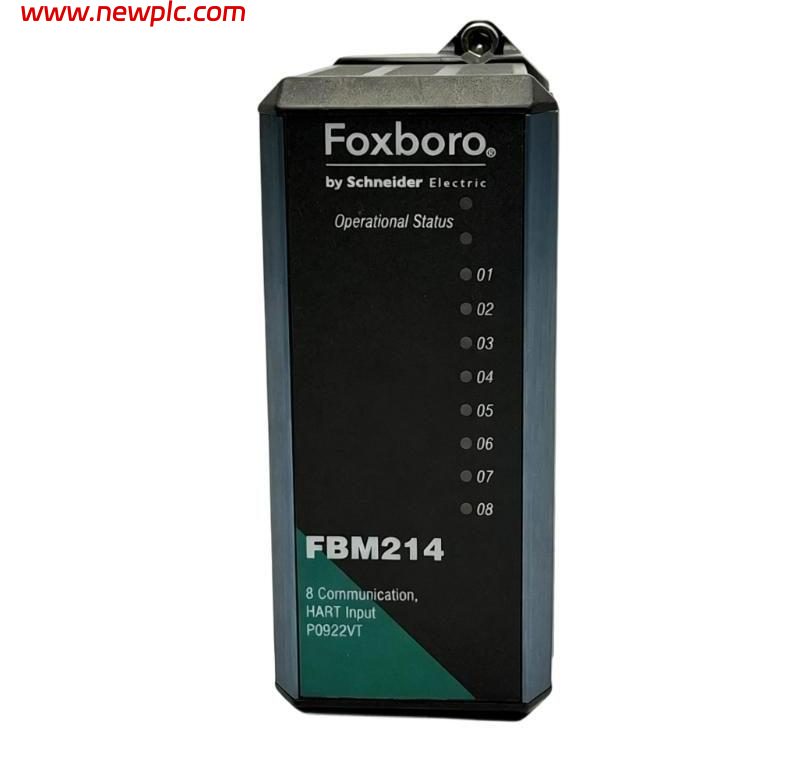

| Product Number | FBM214 P0922VT |
| Product Type | HART Communication Input Interface Module |
| Series | Foxboro I/A Series |
| Input Channels | 8 analog input channels |
| Input Signal | 4–20 mA analog signal |
| HART Support | HART FSK digital communication superimposed on the 4–20 mA signal |
| HART Communication | Bidirectional communication with HART field devices |
| HART Message Rate | Up to 2 digital messages per second |
| Channel Isolation | 8-channel group isolated from ground and module logic |
| A/D Conversion | Sigma-delta conversion |
| Analog Input Update | Approximately 100 ms per channel |
| Fieldbus | Redundant 2 Mbps Module Fieldbus |
| Power Supply | 24 V DC ±5% |
| Maximum Power Consumption | 7 W |
| Operating Temperature | -20 to +70°C (-4 to +158°F) |
| Storage Temperature | -40 to +70°C (-40 to +158°F) |
| Relative Humidity | 5–95%, non-condensing |
| Mounting | Modular baseplate; DIN rail or 19-inch rack mounting |

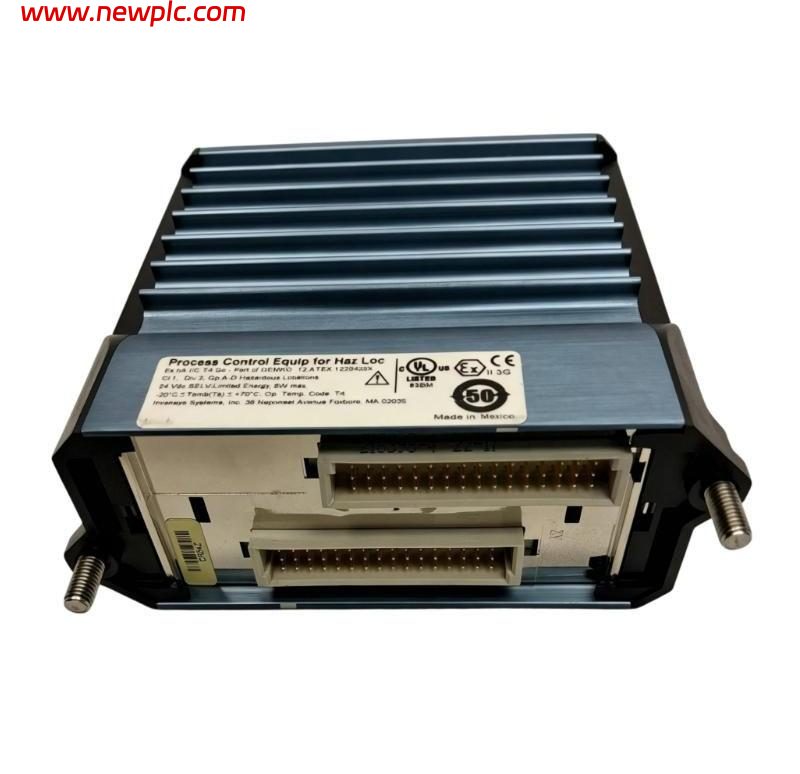

| Termination Connection | 25-pin male D-subminiature |
| Termination Cable Length | Up to 30 m (98 ft) |
| Dimensions | 114 × 45 × 104 mm, including mounting lugs |
| Weight | 0.284 kg |
| Origin | USA |
FAQ
FAQ
Q1: What is the Foxboro FBM214 P0922VT used for?
A: The FBM214 P0922VT is used to connect 4–20 mA field instruments to a Foxboro I/A Series DCS while providing HART communication with compatible smart field devices.
Q2: How many input channels does the FBM214 have?
A: The module provides 8 analog input channels. Each channel accepts a 4–20 mA signal and can also communicate with HART-enabled instruments.
Q3: Does the FBM214 support HART communication?
A: Yes. The FBM214 supports HART FSK communication superimposed on the 4–20 mA signal and can communicate with HART field devices in both directions.
Q4: Can the FBM214 be used with standard 4–20 mA transmitters?
A: Yes. The module can accept a mix of standard 4–20 mA devices and HART devices, allowing both types of instruments to be connected within the same module.
Q5: Are the input channels isolated?
A: Yes. The eight input channels are group-isolated from ground and the module logic, helping improve signal integrity and reduce the effects of electrical interference.
Q6: How is the FBM214 P0922VT mounted?
A: The module mounts on a modular baseplate. The baseplate can be installed horizontally or vertically on a DIN rail, or horizontally in a 19-inch rack with the appropriate mounting kit.
Q7: What are the dimensions and weight of the FBM214 P0922VT?
A: The module measures approximately 114 × 45 × 104 mm, including the mounting lugs, and weighs approximately 0.284 kg.
Q8: What type of fieldbus communication does the FBM214 use?
A: The FBM214 communicates through a redundant 2 Mbps Module Fieldbus. It can communicate through either fieldbus path, allowing operation to continue if one communication path becomes unavailable.
