Technical Specifications
| Parameter | Details |
|---|---|

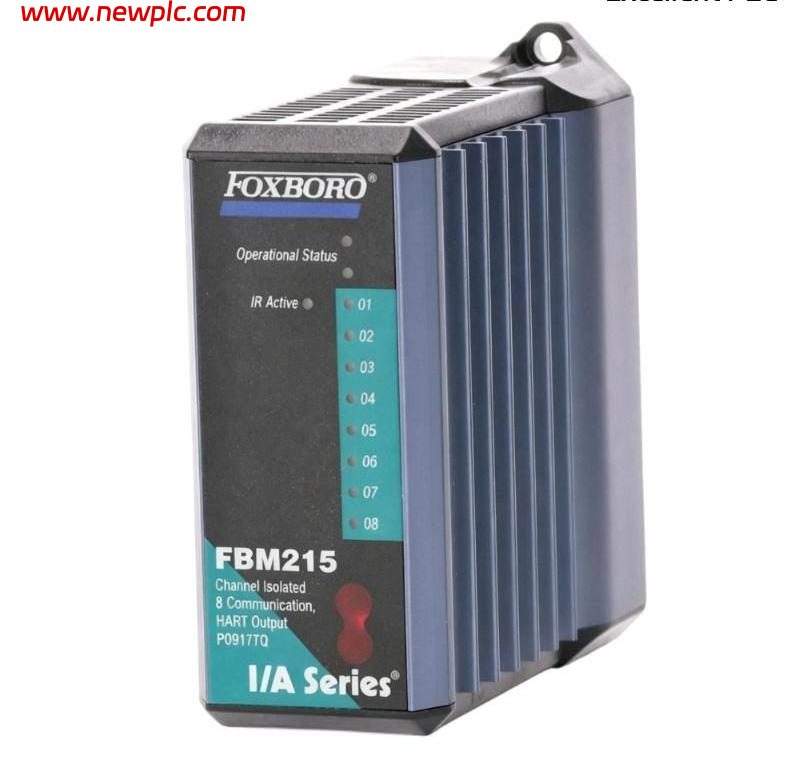

| Manufacturer | Foxboro |
| Product Number | FBM215 P0917TQ |
| Product Type | HART Communication Output Interface Module |
| Series | Foxboro I/A Series 200 |
| Number of Channels | 8 |
| Output Type | 4–20 mA analog output |
| HART Communication | HART FSK digital communication superimposed on the 4–20 mA output |
| Channel Isolation | 8 individually isolated output channels |
| Communication Mode | Bidirectional, half-duplex HART communication |
| HART Data Rate | 1,200 bit/s |
| HART Message Rate | Up to 2 digital messages per second per field device |
| Maximum Output Load | 750 Ω at 20 mA |
| Resolution | 13 bits |
| Maximum Rate of Change | 20 mA in approximately 60 ms |
| Field Device Compatibility | Standard 4–20 mA devices and HART-compatible devices |
| Fieldbus | Redundant 2 Mbps Module Fieldbus |
| Mounting | Modular baseplate; DIN rail or 19-inch rack mounting |
| Termination Assembly | P0917XV for compression termination; P0926EK for ring-lug termination |
| Operating Temperature | -20 to +70°C (-4 to +158°F) |
| Relative Humidity | 5–95%, non-condensing |
| Module Dimensions | 114 × 45 × 104 mm, including mounting lugs |
| Module Weight | Approx. 0.284 kg |
| Origin | USA |
FAQ
FAQ
Q1: What is the Foxboro FBM215 P0917TQ used for?
A: The FBM215 P0917TQ is used to provide analog 4–20 mA output signals to field devices while also supporting HART digital communication.
Q2: How many output channels does the FBM215 provide?
A: The FBM215 provides 8 isolated output channels. Each channel can be connected to a standard 4–20 mA device or a HART-compatible field device.
Q3: Does the FBM215 support HART communication?
A: Yes. Each output channel supports HART FSK communication superimposed on the 4–20 mA analog signal. The module can exchange digital information with HART field devices.
Q4: What is the maximum load supported by the FBM215 output?
A: The output can support a maximum load of approximately 750 Ω at 20 mA.
Q5: Are the FBM215 output channels isolated?
A: Yes. The FBM215 contains eight channel-isolated output circuits. This provides electrical separation between field circuits and helps reduce the effects of ground-loop and interference problems.
Q6: Can the FBM215 communicate with HART field devices remotely?
A: Yes. The module supports bidirectional HART communication and can provide digital information from connected HART devices to the control system. It supports up to two digital telegrams per second from each field device.
Q7: Which termination assembly is used with the P0917TQ?
A: The FBM215 P0917TQ can be used with the P0917XV compression termination assembly or the P0926EK ring-lug termination assembly.
Q8: What are the dimensions and weight of the FBM215 P0917TQ?
A: The module measures approximately 114 × 45 × 104 mm, including the mounting lugs, and weighs approximately 0.284 kg. These dimensions and weight correspond to the FBM215 module itself rather than its separate termination assembly.
