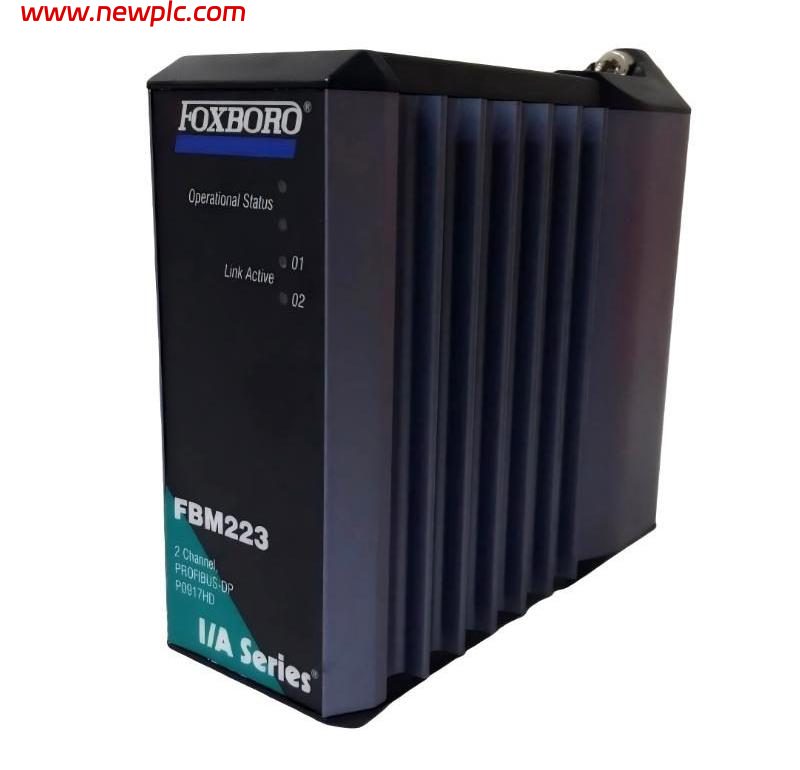

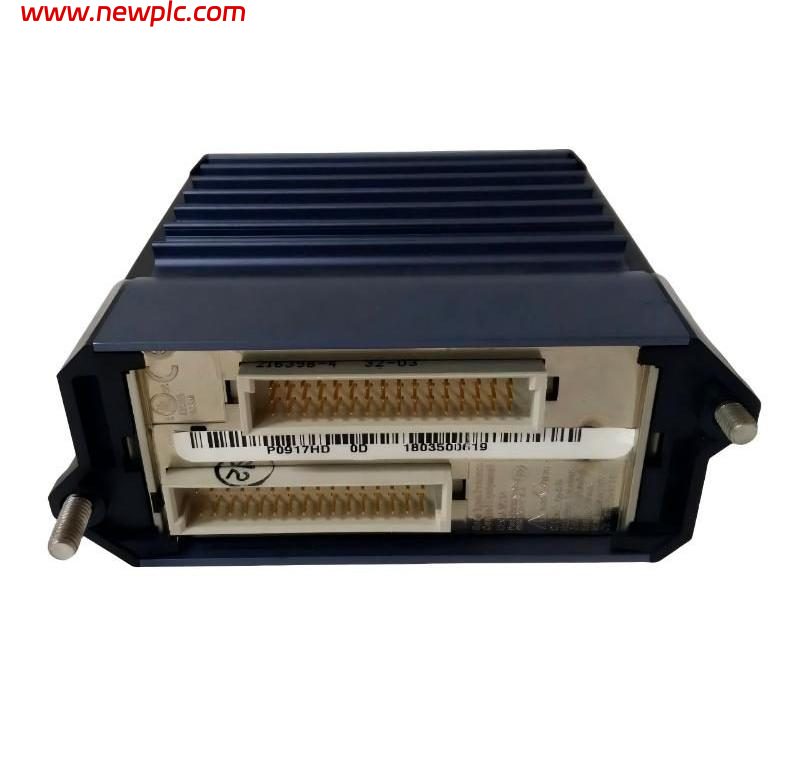

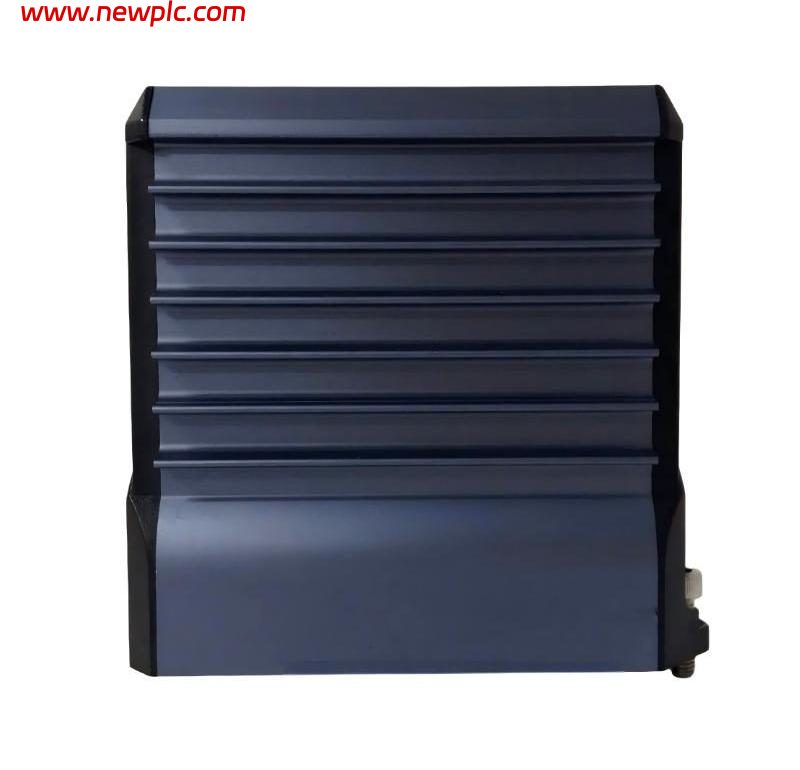

Foxboro FBM223 P0917HD PROFIBUS-DP Communication Interface Module

FAQ

Q1: What is the Foxboro FBM223 P0917HD?
It is a PROFIBUS-DP communication interface module used in Foxboro I/A Series systems.

Q2: What communication protocol does the FBM223 support?
The FBM223 supports the PROFIBUS-DP protocol for communication with compatible field devices.

Q3: How many PROFIBUS ports does the FBM223 have?
It provides two PROFIBUS communication ports with isolated interfaces.

Q4: What is the power supply for P0917HD?
The module uses a 24 VDC supply with a tolerance of +5% / –10%.

Q5: What termination assembly is used with P0917HD?
The specified termination assembly is P0917SY, using compression-screw field termination.

Q6: How is the FBM223 installed?
The module mounts on a Foxboro modular baseplate. The baseplate can be installed horizontally or vertically on a DIN rail or horizontally in a 19-inch rack.

Q7: What are the dimensions and weight of P0917HD?
The module is approximately 102 × 45 × 104 mm, or 114 mm high including mounting lugs, and weighs approximately 0.284 kg.

Q8: What is the main application of the FBM223?
It provides a communication gateway between the Foxboro I/A Series DCS and PROFIBUS-DP devices such as drives, remote I/O, and other field equipment.

FBM223 Foxboro P0917HD
