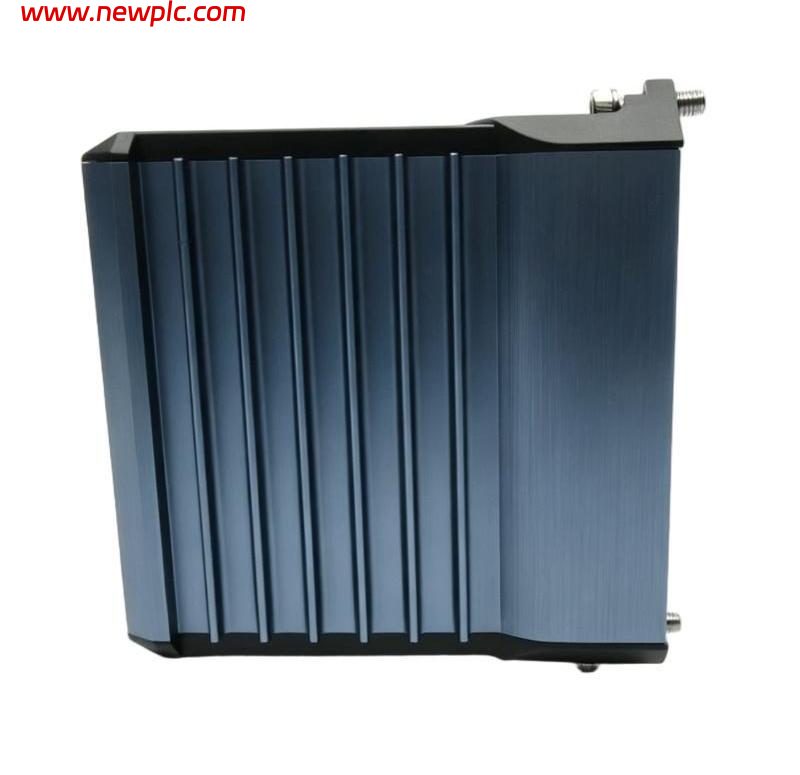

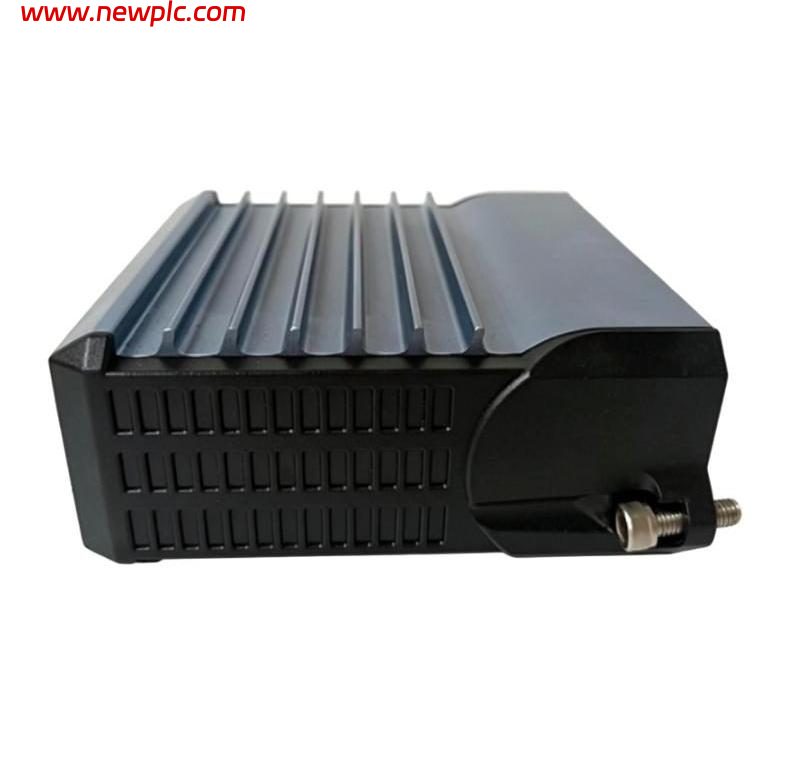

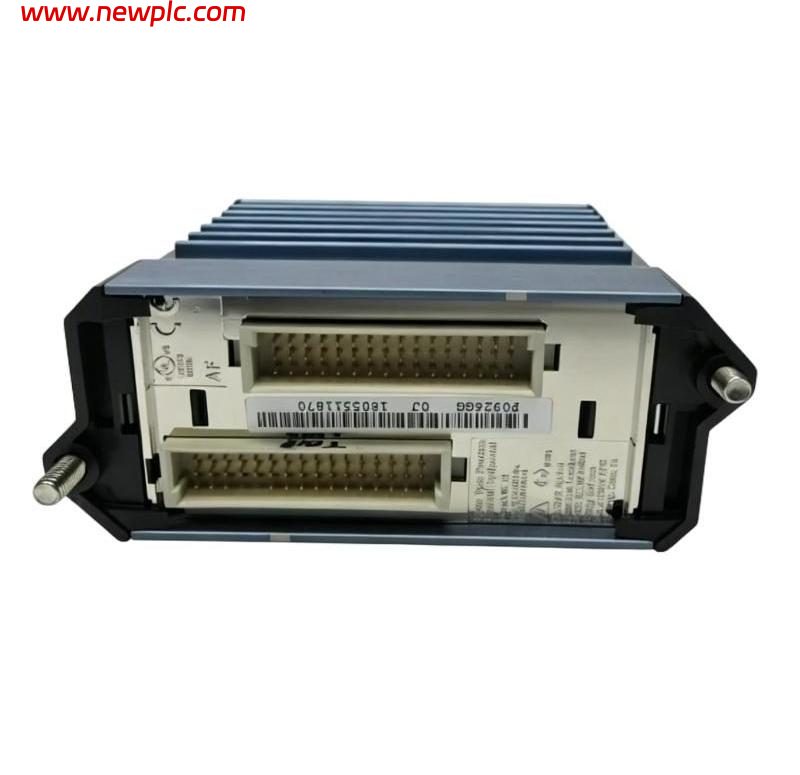

Foxboro FBM224 P0926GG Modbus Communication Interface Module

FAQ

Q1: What is the Foxboro FBM224 P0926GG?
It is a four-port Modbus communication interface module used to connect Modbus devices with Foxboro I/A Series control systems.

Q2: How many communication ports does the FBM224 have?
The FBM224 provides four individually isolated communication ports.

Q3: Which communication interfaces are supported?
The module supports RS-232, RS-422, and RS-485, depending on the termination configuration.

Q4: Which Modbus protocol does P0926GG use?
The FBM224 is designed for Modbus RTU communication with compatible field devices.

Q5: How many Modbus devices can one FBM224 connect?
The FBM224 can communicate with up to 64 Modbus devices.

Q6: What power supply does the FBM224 require?
It requires 24 VDC, +5% / –10%, with maximum power consumption of approximately 7 W.

Q7: What are the dimensions and weight of P0926GG?
The module measures approximately 102 × 45 × 104 mm, or 114 mm including mounting lugs, and weighs approximately 0.284 kg.

Q8: What termination assemblies are compatible with P0926GG?
The FBM224 can use RH926GH compression-screw termination or P0926PA ring-lug termination.

FBM224 Foxboro P0926GG
