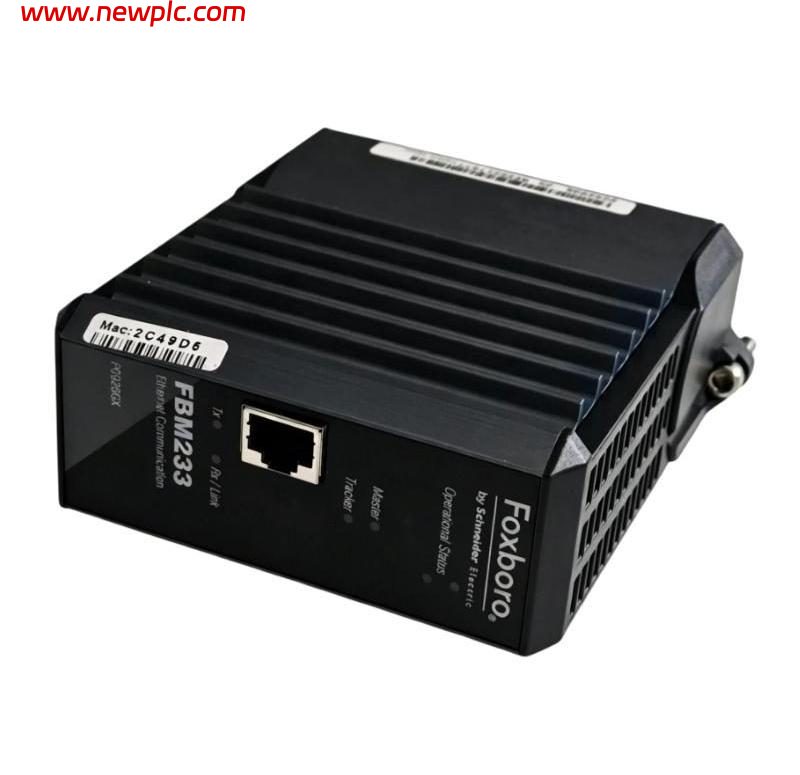

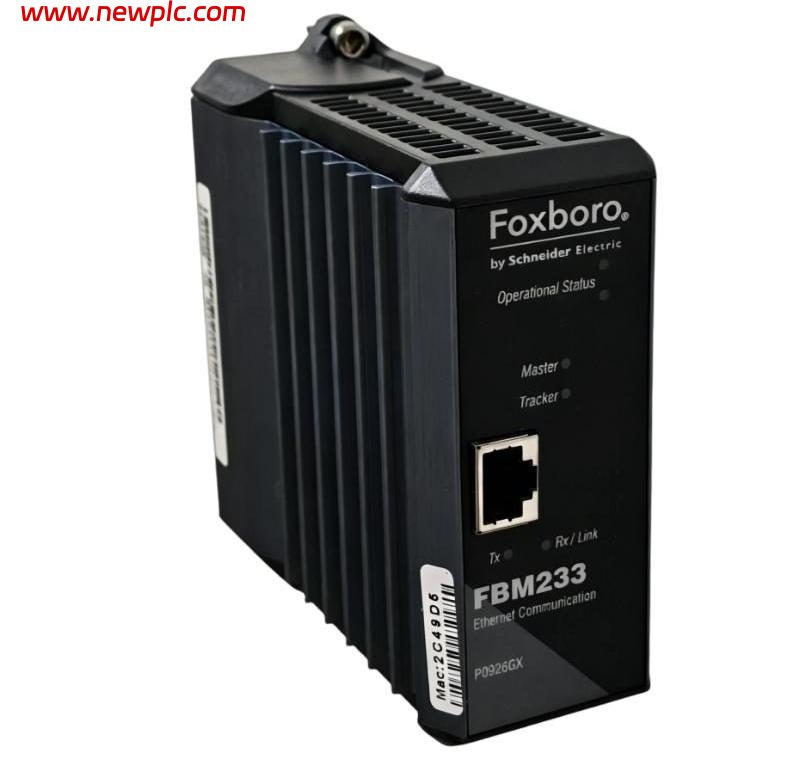

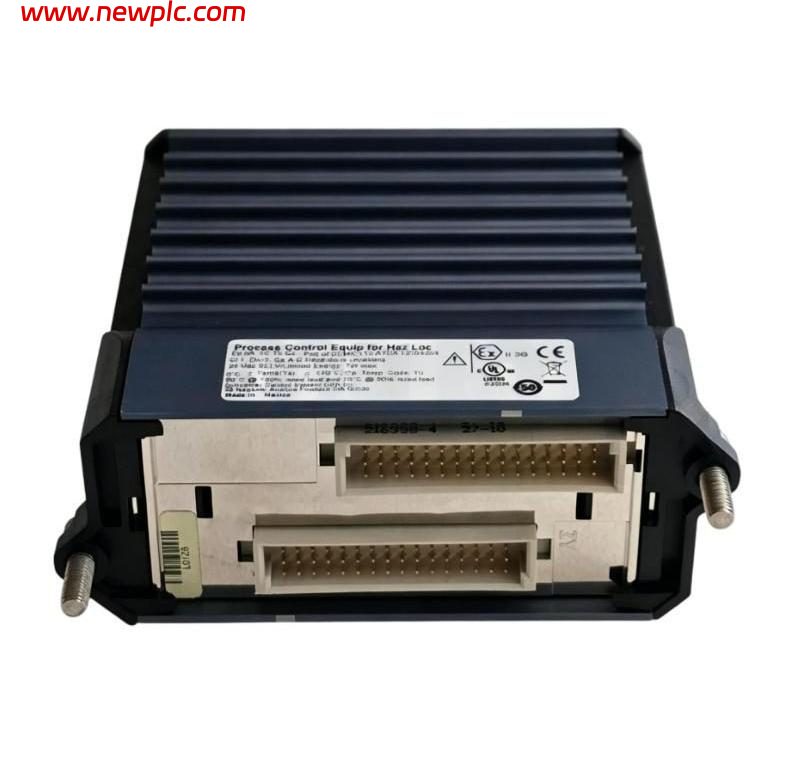

Foxboro FBM233 P0926GX Field Device System Integrator (FDSI) Module

FAQ

Q1: What is the Foxboro FBM233 P0926GX?
It is a Field Device System Integrator (FDSI) module designed to connect Ethernet-based field devices to a Foxboro I/A Series or Foxboro Evo control system.

Q2: What Ethernet speed does the FBM233 support?
The FBM233 supports 10 Mbps and 100 Mbps Ethernet communication through an RJ-45 interface.

Q3: How many field devices can one FBM233 support?
A single FBM233 can communicate with up to 64 external devices, depending on the installed driver and system configuration.

Q4: Does the FBM233 support redundancy?
Yes. Two FBM233 modules can operate as Master and Tracker modules to provide FBM-level redundancy.

Q5: Which communication protocols are supported?
The FBM233 supports UDP/IP and TCP/IP, with the specific protocol and device interface determined by the downloadable I/O driver.

Q6: What power supply does P0926GX require?
The module requires 24 VDC (+5% / –10%) and consumes a maximum of approximately 7 W.

Q7: What are the dimensions and weight of the FBM233?
The module measures approximately 102 × 45 × 104 mm, or 114 mm including mounting lugs, and weighs approximately 0.284 kg.

Q8: What is the main application of P0926GX?
It is used as an Ethernet communication interface between Foxboro DCS systems and compatible Ethernet field devices, PLCs, controllers, and other networked equipment.

FBM233 Foxboro P0926GX
