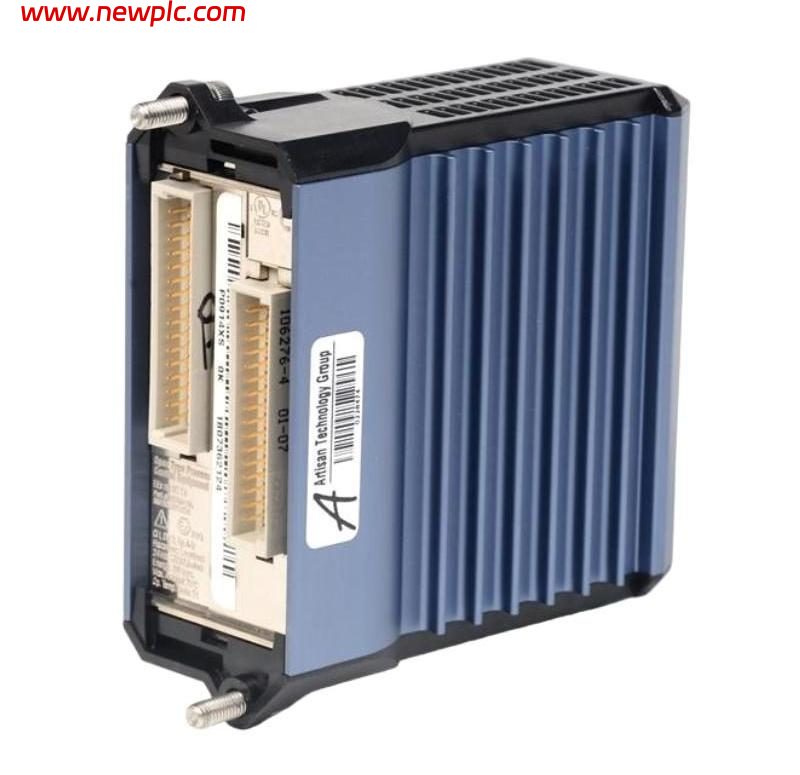

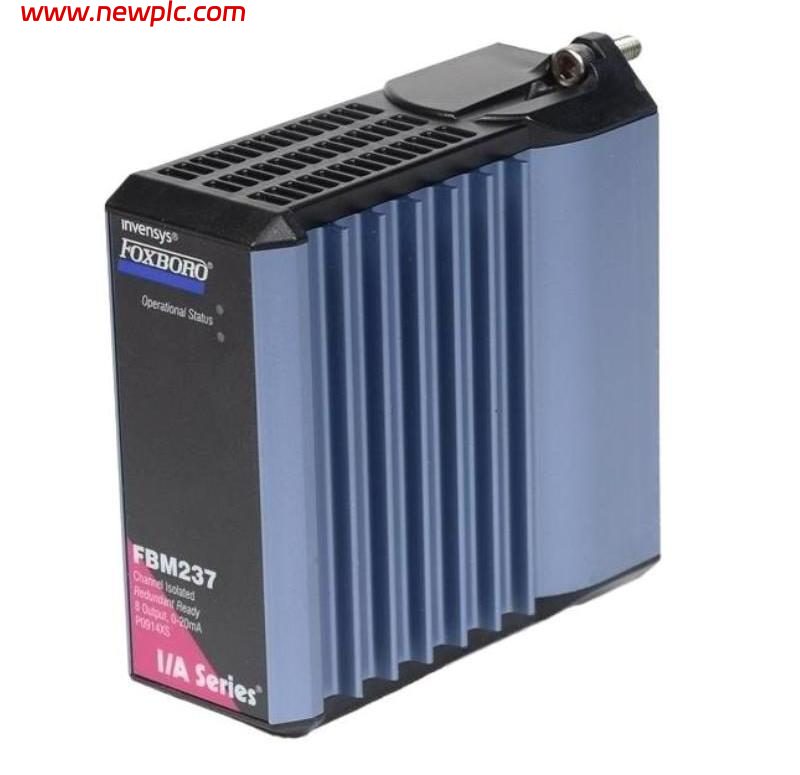

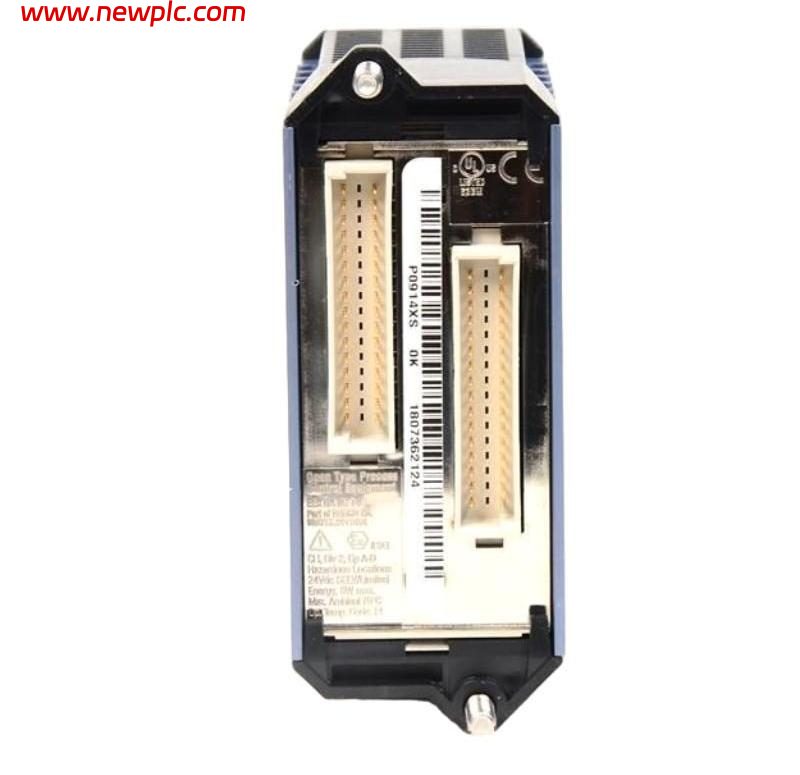

Foxboro FBM237 P0914XS Channel Isolated Analog Output Interface Module

FAQ

Q1: What is the Foxboro FBM237 P0914XS?
It is a channel-isolated analog output interface module for Foxboro I/A Series control systems.

Q2: How many output channels does the FBM237 have?
The module provides 8 isolated analog output channels.

Q3: What output signal does P0914XS provide?
Each channel provides a 0–20 mA DC analog output. The specified output range extends to 20.4 mA DC.

Q4: Are the output channels isolated?
Yes. Each output channel is galvanically isolated from the other channels and from ground.

Q5: Does the FBM237 support redundancy?
Yes. Two FBM237 modules can be configured as a redundant pair using the appropriate redundant adapter.

Q6: What is the maximum output load?
The maximum specified output load is 750 Ω.

Q7: What are the dimensions and weight of P0914XS?
The module measures approximately 102 × 45 × 104 mm, or 114 mm including mounting lugs, and weighs approximately 0.284 kg.

Q8: What termination assemblies can be used with the FBM237?
The FBM237 supports compression-screw and ring-lug termination assemblies. The termination assembly connects to the module through a Type 1 termination cable, with cable lengths available up to 30 m.
