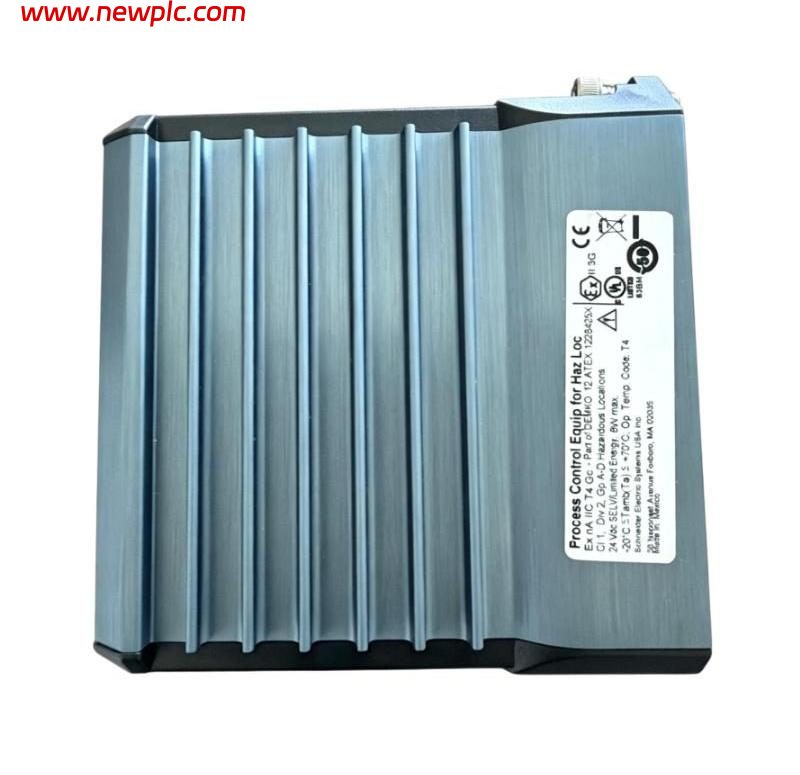

Foxboro FBM237 RH914XS Channel-Isolated Redundant-Ready Analog Output Module

FAQ

Q1: What is the Foxboro FBM237 RH914XS?
It is an eight-channel, channel-isolated analog output module for Foxboro I/A Series control systems.

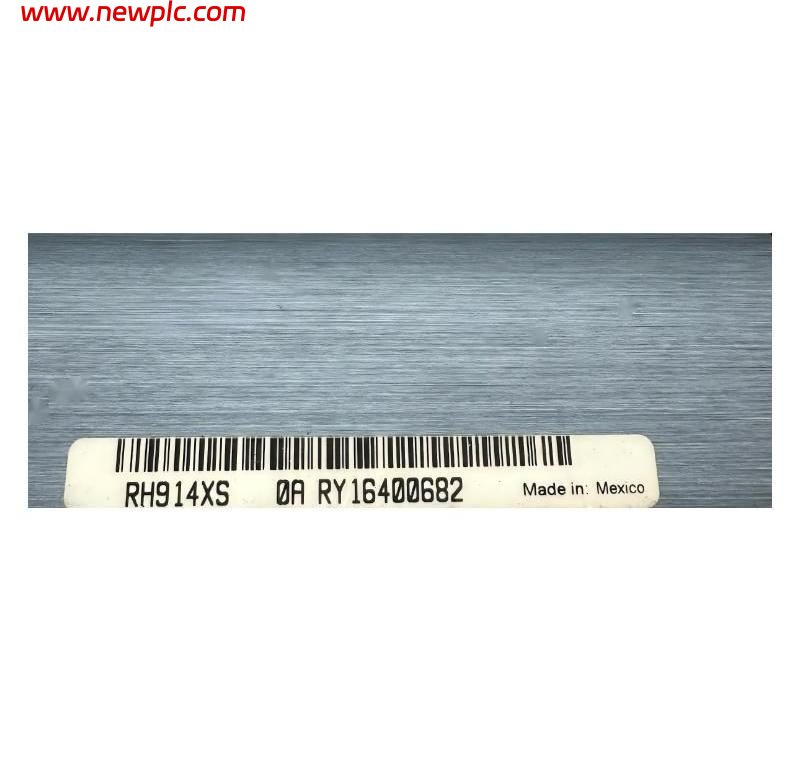

Q2: What is the difference between RH914XS and P0914XS?
RH914XS is the newer part number and supersedes P0914XS.

Q3: How many output channels does the FBM237 have?
It provides 8 analog output channels.

Q4: What output signal does RH914XS provide?
Each channel provides a 0–20 mA DC output, with a usable output range up to 20.4 mA DC.

Q5: Are the output channels isolated?
Yes. Each output channel is galvanically isolated from the other channels and from ground.

Q6: Can RH914XS be used in a redundant configuration?
Yes. Two FBM237 modules can be installed as a redundant pair using the appropriate redundant adapter.

Q7: What are the dimensions and weight of RH914XS?
The module measures approximately 102 × 45 × 104 mm, or 114 mm including mounting lugs, and weighs approximately 0.284 kg.

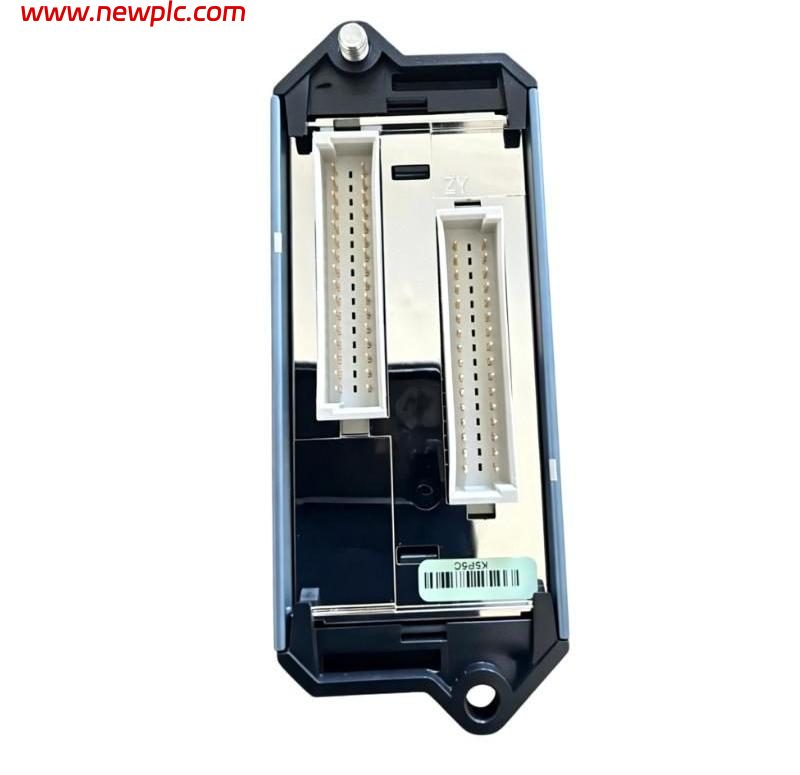

Q8: What termination assemblies can be used with FBM237 RH914XS?
The FBM237 supports compatible compression and ring-lug termination assemblies. The standard termination cable can be up to 30 m long.

FBM237 Foxboro RH914XS
