Manufacturer：Foxboro

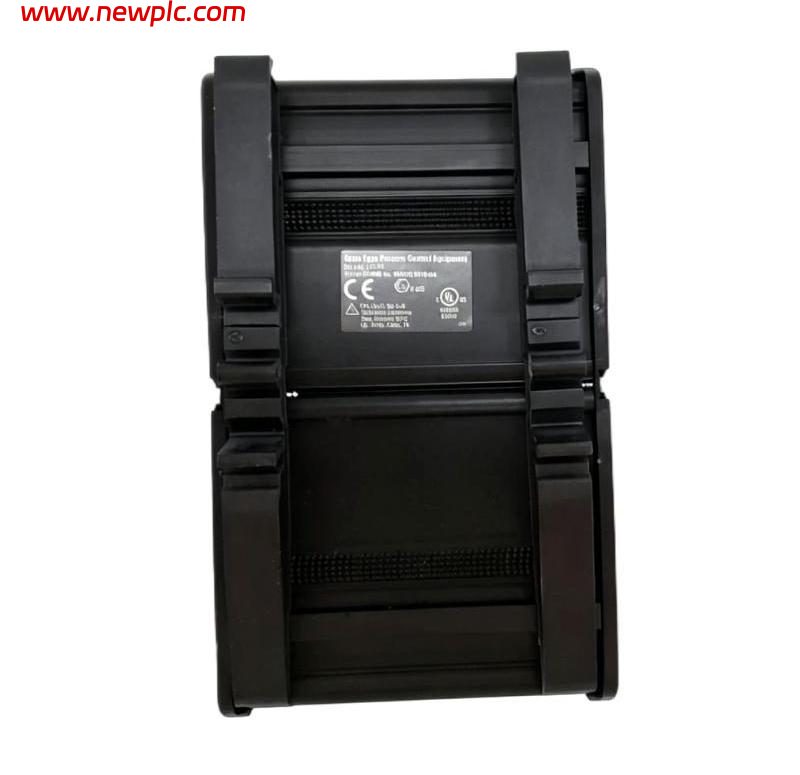

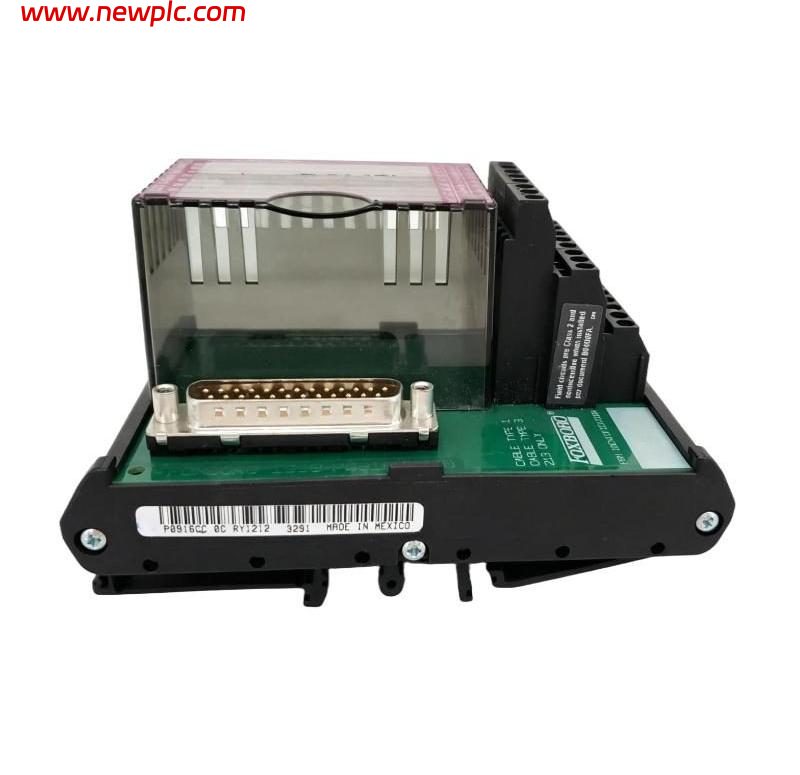

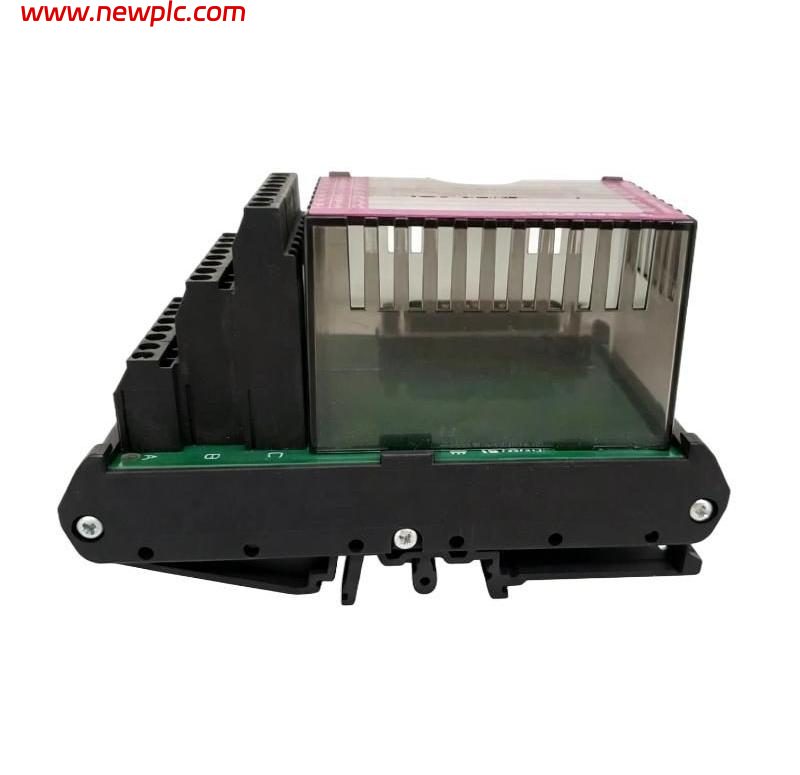

Product Number：FBM237
Product Type：Compression Termination Assembly
Origin：USA
Dimensions：100 × 50 × 20 mm
Weight：0.181 kg
Order number：RH916YE
FAQ
FAQ
Q1: What is the Foxboro FBM237 RH916YE?
RH916YE is a compression termination assembly designed for the Compact FBM237 0–20 mA analog output module.
Q2: Which older part numbers does RH916YE replace?
RH916YE supersedes P0916CC and P0916YE.
Q3: How many channels does RH916YE support?
It provides field termination for 8 analog output channels.
Q4: What signal does RH916YE terminate?
It is designed for the FBM237’s 0–20 mA analog output signals.
Q5: What type of terminals are used?
RH916YE uses compression terminals for field wiring.
Q6: What termination cable is used with RH916YE?
It uses a Type 1 termination cable, with cable lengths available up to 30 m.
Q7: What are the dimensions and weight of RH916YE?
The termination assembly is approximately 100 × 50 × 20 mm and weighs about 0.181 kg. The weight is based on published Compact FBM237 termination-assembly data.
Q8: Can RH916YE be used with a redundant FBM237 configuration?
Yes. The termination assembly can be used with a single FBM237 or a redundant FBM237 pair; a suitable redundant adapter is required for the redundant configuration.
