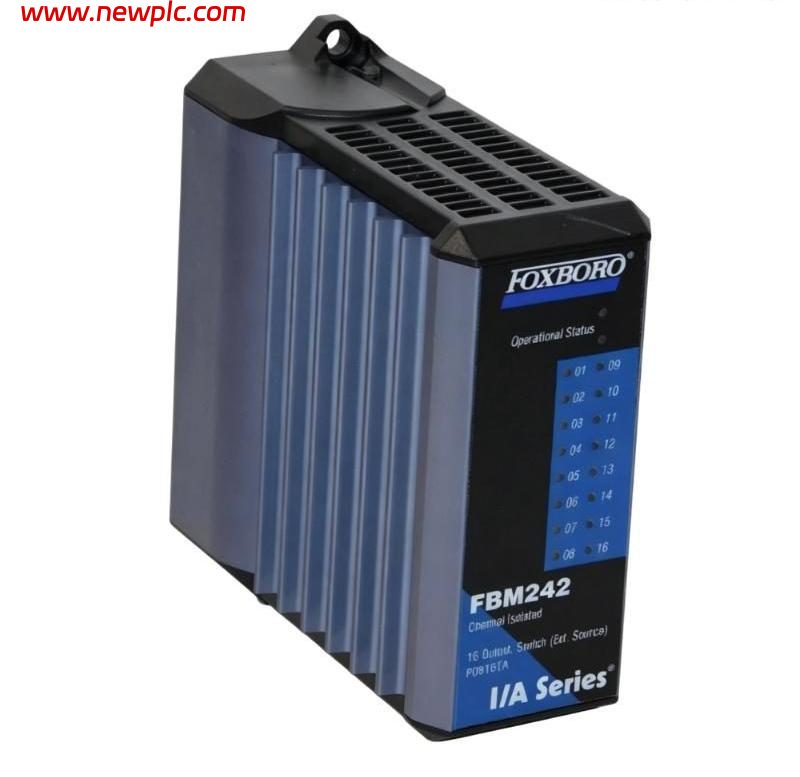

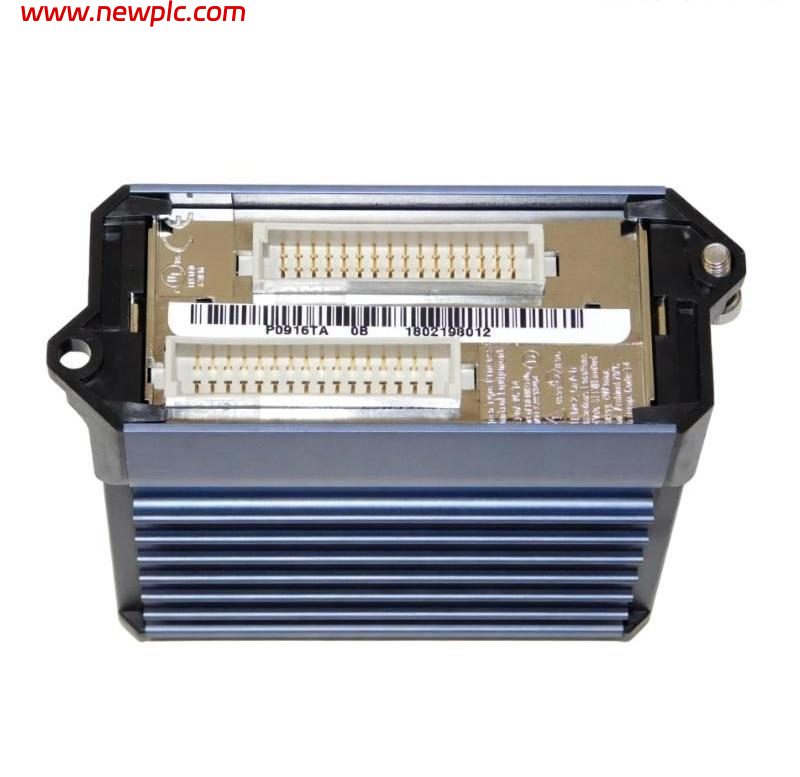

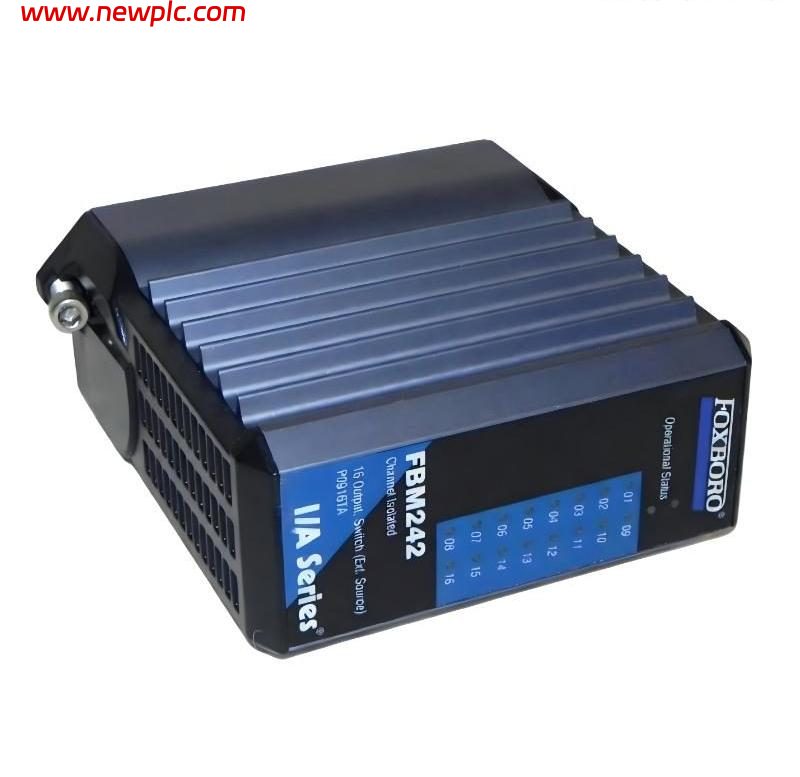

Foxboro FBM242 P0916TA Channel-Isolated External-Source Discrete Output Module

FAQ

Q1: What is the Foxboro FBM242 P0916TA?
It is a 16-channel, channel-isolated external-source discrete output module for Foxboro I/A Series systems.

Q2: How many output channels does the FBM242 provide?
The FBM242 provides 16 discrete output channels.

Q3: What output voltage does P0916TA support?
The externally sourced solid-state output configuration supports 15–60 VDC.

Q4: What is the maximum load current per channel?
The maximum continuous load is 2.25 A per channel for the direct DC solid-state output configuration.

Q5: Are the FBM242 output channels isolated?
Yes. The FBM242 provides channel isolation for its discrete outputs.

Q6: What power supply does the FBM242 require?
It uses a 24 VDC supply, with a tolerance of +5% / –10%. Maximum module consumption is approximately 3 W.

Q7: What are the dimensions and weight of the FBM242 module?
The module measures approximately 102 × 45 × 104 mm, or 114 mm including mounting lugs, and weighs approximately 0.284 kg.

Q8: What is the replacement for P0916TA?
The newer RH916TA supersedes the legacy P0916TA part number.
