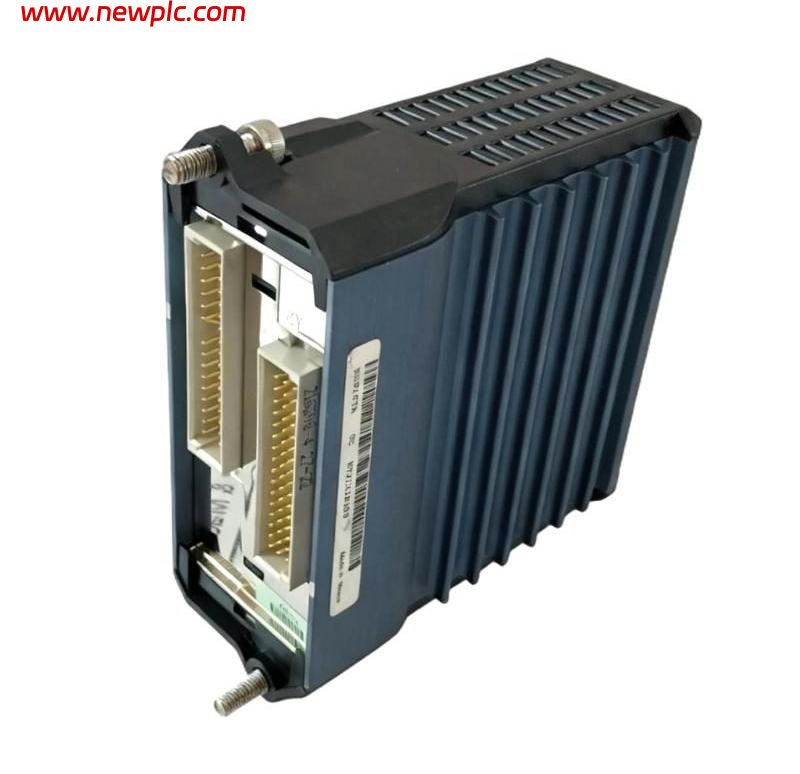

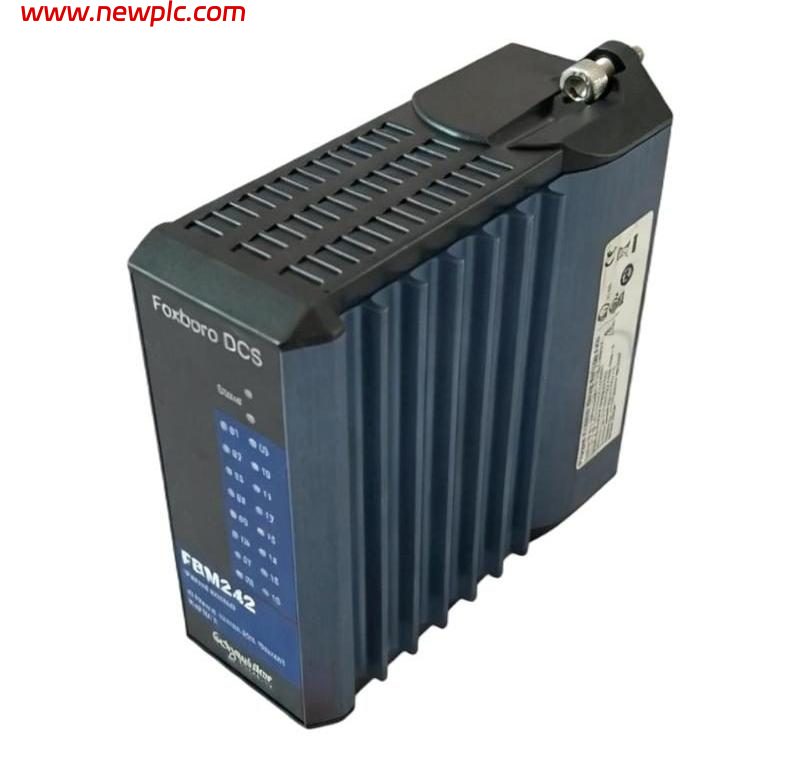

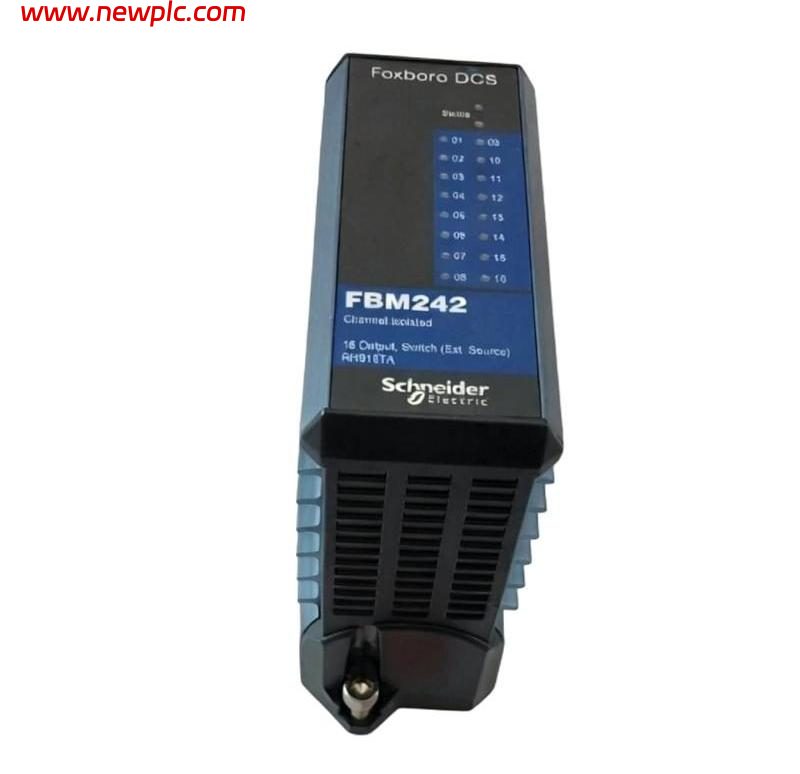

Foxboro FBM242 RH916TA Externally Sourced Discrete Output Module

FAQ

Q1: What is the Foxboro FBM242 RH916TA?
It is a 16-channel externally sourced discrete output module for Foxboro I/A Series and Foxboro Evo control systems.

Q2: Is RH916TA the replacement for P0916TA?
Yes. RH916TA supersedes P0916TA as the current part number for the FBM242.

Q3: How many output channels does the FBM242 provide?
The module provides 16 discrete output channels.

Q4: What output voltage does RH916TA support?
With the appropriate termination assembly, the externally sourced solid-state output configuration supports 15–60 VDC at up to 2 A per channel.

Q5: Are the FBM242 output channels isolated?
Yes. The FBM242 provides galvanic isolation between the output channels and ground.

Q6: What power supply does RH916TA require?
It operates from a 24 VDC supply with +5% / –10% tolerance, with maximum module consumption of approximately 3 W.

Q7: What are the dimensions and weight of RH916TA?
The module measures approximately 102 × 45 × 104 mm, or 114 mm including mounting lugs, and weighs approximately 0.284 kg.

Q8: Which termination assemblies can be used with FBM242 RH916TA?
Different termination assemblies are available for DC solid-state, protected, redundant-power, and relay output configurations. The exact termination assembly should be selected according to the required field voltage, current, and protection arrangement.

FBM242 Foxboro RH916TA
