Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Foxboro (Schneider Electric / Invensys) |
| Model | FCP280 |
| Product Number | RH924YF |

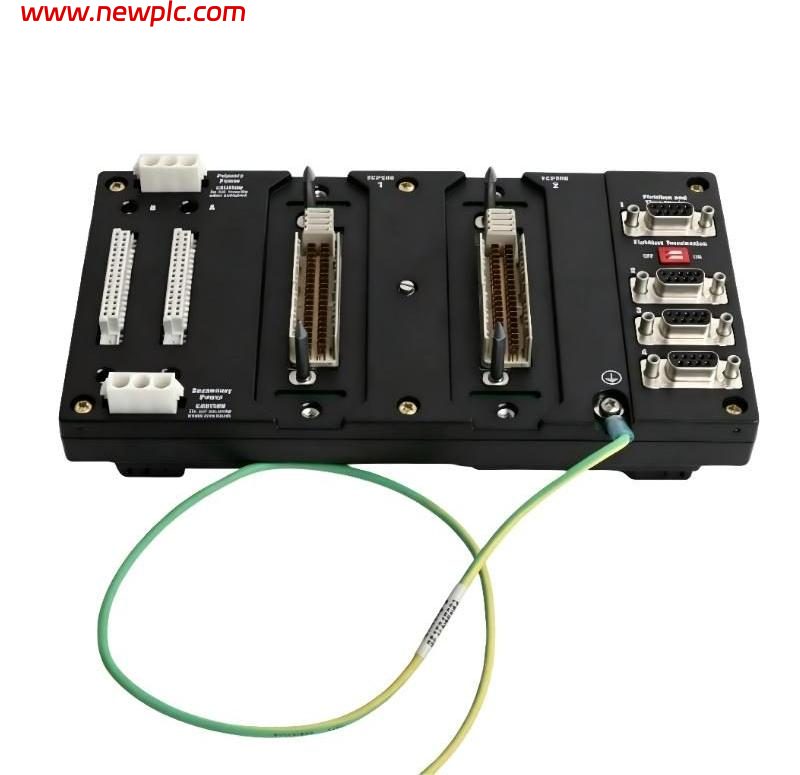

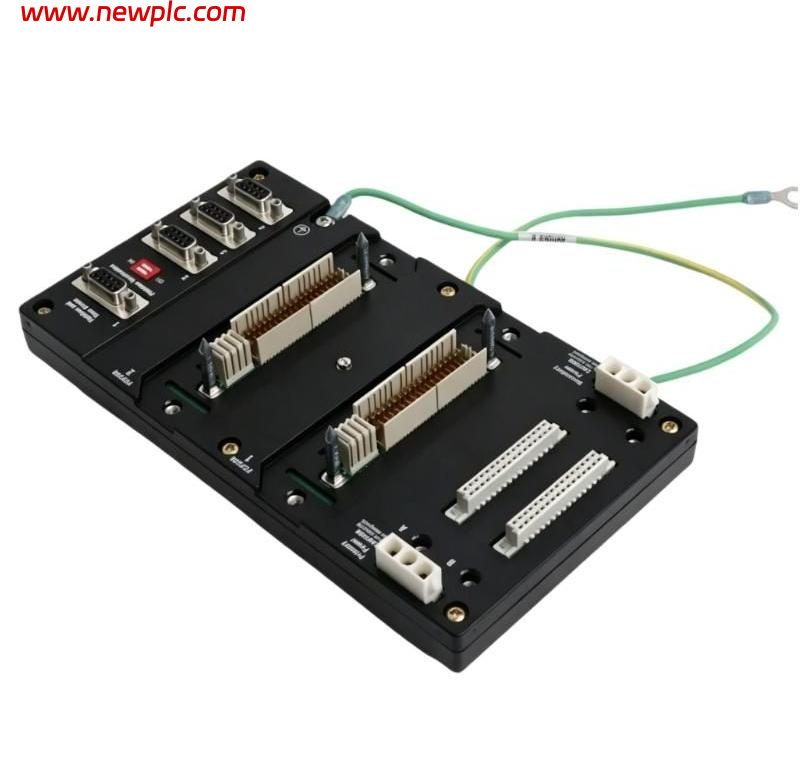

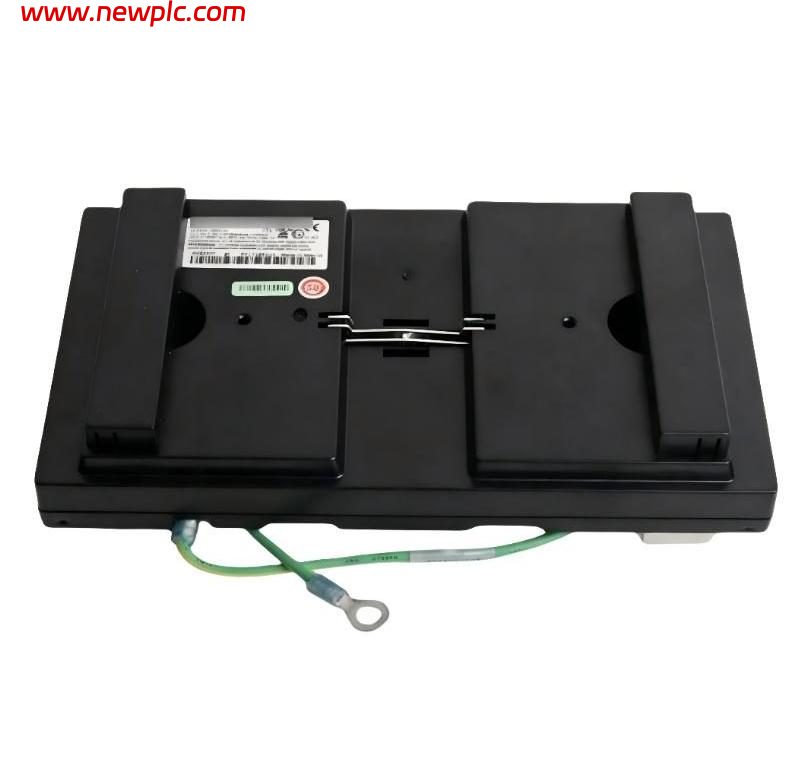

| Product Type | FCP280 Vertical-Mounted Baseplate |
| System | Foxboro Evo / EcoStruxure Foxboro DCS |
| Baseplate Type | Standard 2-position vertical DIN-rail mounted baseplate |
| Supported Controller | FCP280 (RH924YA) |
| Module Positions | 2 |
| Configuration | Single FCP280 or fault-tolerant FCP280 pair |
| Fieldbus Support | 4 HDLC fieldbus channels |
| Network Adapter Support | 2 × copper or fiber-optic network adapters |
| Mounting | Vertical DIN rail |
| Fieldbus Port 1 | Termination selectable by DIP switches |
| Fieldbus Ports 2–4 | Internally terminated |
| Dimensions | 150 x 35 x 110 mm |
| Approx. Weight | 0.35 kg |
| Origin | USA |
FAQ
FAQ
Q1: What is Foxboro FCP280 RH924YF?
A: RH924YF is the vertical-mounted baseplate for the Foxboro FCP280 Field Control Processor.
Q2: What is the product type?
A: The product type is FCP280 Vertical-Mounted Baseplate.
Q3: Is RH924YF an FCP280 processor module?
A: No. The FCP280 processor is RH924YA. RH924YF is the baseplate on which the FCP280 processor module is installed.
Q4: How many FCP280 modules can RH924YF accommodate?
A: The standard RH924YF baseplate has two positions, supporting either a single FCP280 or a fault-tolerant pair of FCP280 processors.
Q5: How many fieldbus channels does RH924YF provide?
A: The FCP280 baseplate provides four HDLC fieldbus channels (PIO channels) for process I/O communication.
Q6: What type of network adapters are used with RH924YF?
A: The baseplate supports two network adapters, either fiber-optic RH924WA or copper RH924UQ, for connection to the Foxboro control network.
Q7: What is the mounting orientation of RH924YF?
A: RH924YF is specifically designed for vertical DIN-rail mounting. Foxboro also offers RH924YL for horizontal mounting and RH100JX for dual-cable configurations.
Q8: What should be checked before replacement?
A: Confirm the RH924YF part number, vertical mounting orientation, two-position configuration, FCP280 compatibility, network adapter type, four fieldbus connections, and fault-tolerant arrangement before replacement.
