Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Foxboro (Schneider Electric / Invensys) |
| Model | FCP280 |
| Product Number | RH924YL |
| Product Type | Standard Horizontal-Mounted Baseplate |
| System | EcoStruxure Foxboro DCS / Foxboro I/A Series |
| Compatible Controller | FCP280 (RH924YA) |
| Baseplate Positions | 2 |
| Mounting | Horizontal DIN rail |
| Configuration | Single FCP280 or fault-tolerant pair |
| Network Adapter Support | 2 × RH924WA fiber or RH924UQ copper adapters |
| Fieldbus Support | 4 HDLC fieldbus channels (PIO channels) |
| Fieldbus Port 1 | Termination selectable by baseplate DIP switches |
| Fieldbus Ports 2–4 | Internally terminated |
| Power | Primary and secondary 24 VDC connections |
| Backplane | Passive backplane |
| Dimensions (L × W × H) | Approx. 147 × 51.8 × 116 mm |
| Approx. Weight | 0.8 kg |
| Origin | USA |
FAQ
FAQ
Q1: What is Foxboro FCP280 RH924YL?

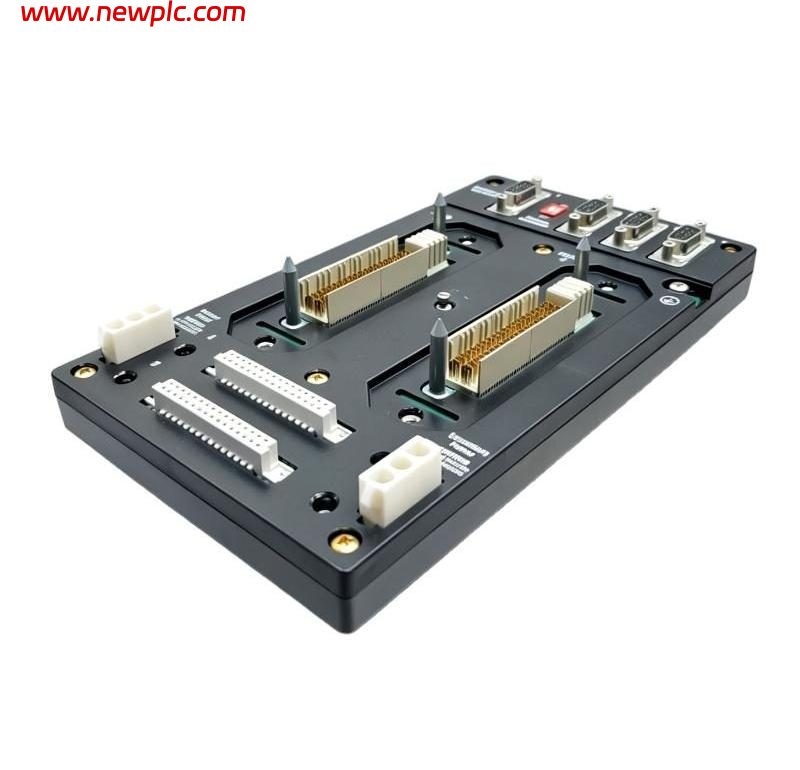

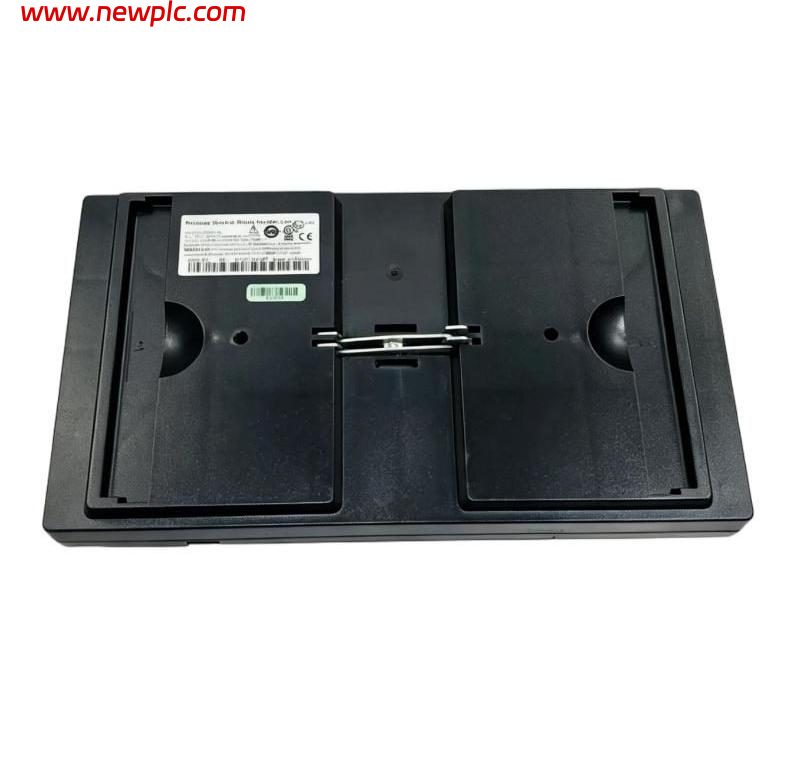

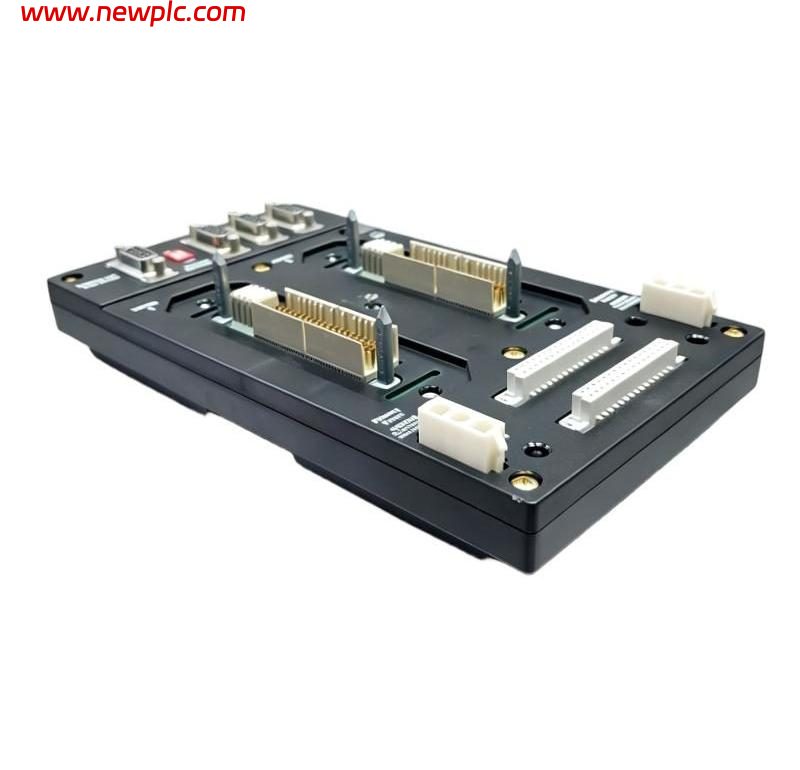

A: It is the standard horizontal-mounted baseplate designed for the Foxboro FCP280 Field Control Processor.
Q2: Is RH924YL the FCP280 CPU itself?
A: No. RH924YA is the FCP280 processor module; RH924YL is the passive mounting/baseplate assembly used to install the processor.
Q3: How many FCP280 modules can RH924YL accommodate?
A: It is a 2-position baseplate, supporting either one FCP280 or two FCP280 modules in a fault-tolerant configuration.
Q4: What is the mounting orientation of RH924YL?
A: RH924YL is designed for horizontal DIN-rail mounting. The corresponding vertical-mounted version is RH924YF.
Q5: What network adapters are compatible with RH924YL?
A: The baseplate supports two network adapters, either RH924WA fiber-optic adapters or RH924UQ copper adapters, for connection to the Control Network.
Q6: How many Fieldbus channels are provided?
A: The FCP280 baseplate provides four HDLC Fieldbus channels (PIO channels). On the standard baseplate, Fieldbus Port 1 can be terminated using the onboard DIP switches, while Ports 2–4 are internally terminated.
Q7: What are the dimensions and weight of RH924YL?
A: The nominal dimensions are approximately 147 × 51.8 × 116 mm (L × W × H), with an approximate weight of 0.8 kg.
Q8: What should be checked before replacement?
A: Confirm the RH924YL part number, horizontal DIN-rail orientation, two-position configuration, FCP280 compatibility, network adapter type, four Fieldbus connections, and redundant FCP280 arrangement before replacement.
