Technical Specifications
| Parameter | Description |
|---|---|

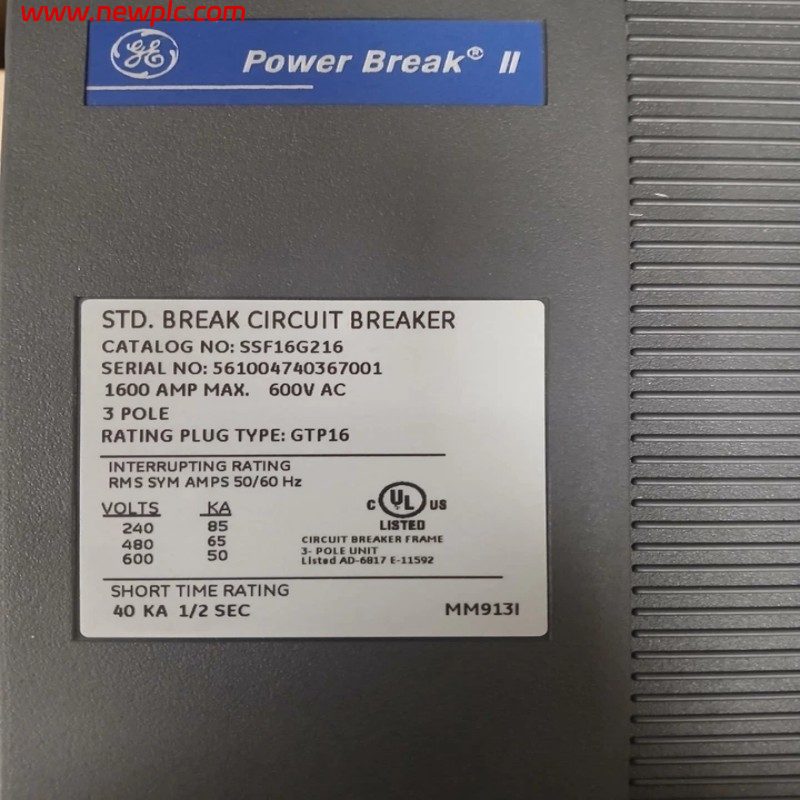

| Product Model | GE SSF16G216 |
| Manufacturer | General Electric (GE) |
| Product Series | Power Break II |

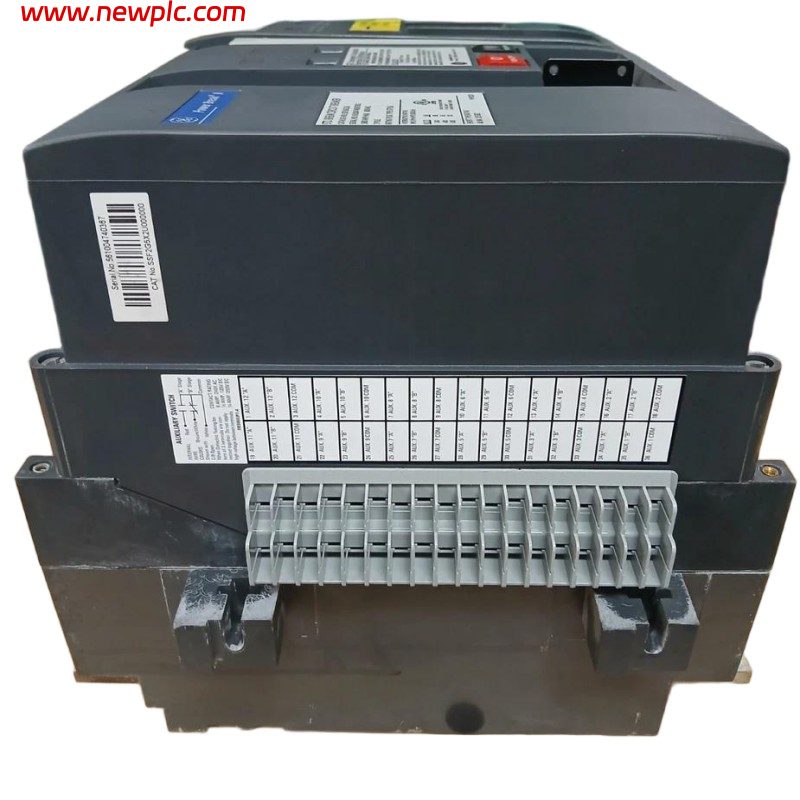

| Product Type | Insulated Case Circuit Breaker (ICCB) |
| Function | Provides circuit protection, overload protection, short-circuit protection, and ground fault protection for industrial power distribution systems |
| Application | Industrial power distribution, switchgear, motor control centers, and large electrical facilities |
| Rated Voltage | 600 VAC |
| Rated Current | 1600 A |
| Number of Poles | 3 Poles |
| Phase | 3-Phase |
| Interrupting Rating | 65 kAIC at 480 VAC |

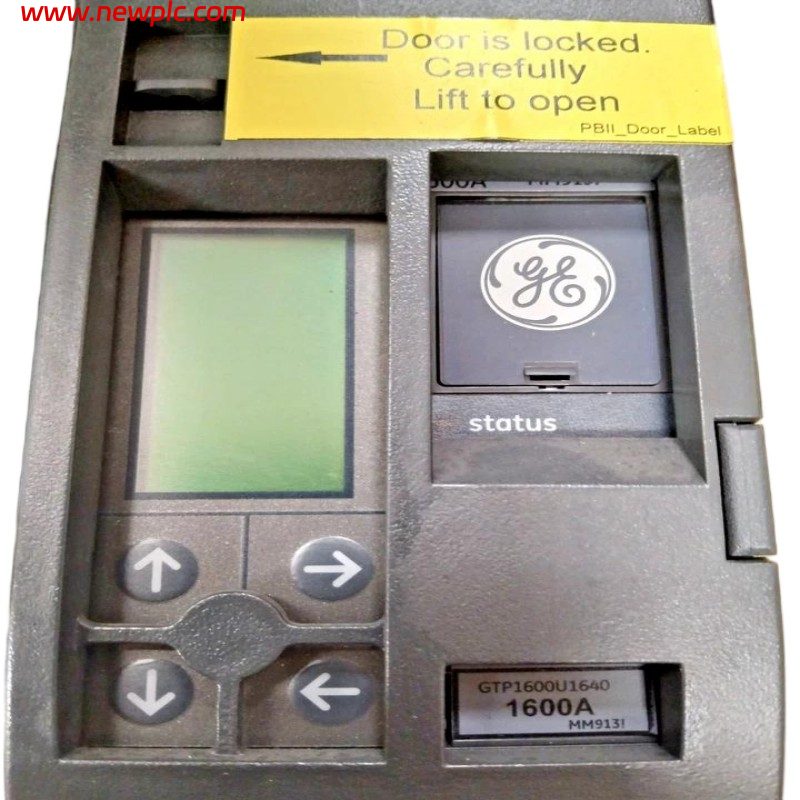

| Trip Unit | EntelliGuard solid-state trip unit |
| Protection Functions | LSIG (Long-Time, Short-Time, Instantaneous, Ground Fault) |
| Mounting Type | Bolt-on mounting |
| Connection Type | Front connected |
| Trip Technology | Electronic solid-state protection |
| Series Application | GE Power Break II circuit breaker system |
| Installation Environment | Industrial switchgear and power distribution cabinets |
| Operating Frequency | 50/60 Hz |
| Enclosure Type | Insulated case construction |
| Dimensions | Approx. 430 × 280 × 330 mm (16.9 × 11.0 × 13.0 in) |
| Weight | Approx. 37 kg (82 lb) |
FAQ
FAQ
Q1: What is the GE SSF16G216 used for?
A: The GE SSF16G216 is an insulated case circuit breaker used for protecting high-current electrical distribution systems from overloads, short circuits, and ground faults.
Q2: What is the rated current of the GE SSF16G216?
A: The SSF16G216 has a rated current of 1600 A and is designed for heavy-duty industrial power applications.
Q3: What voltage can the GE SSF16G216 handle?
A: The circuit breaker is rated for up to 600 VAC operation and is commonly applied in three-phase power systems.
Q4: What protection functions does the SSF16G216 provide?
A: The breaker uses LSIG protection, including long-time overload protection, short-time delay protection, instantaneous trip protection, and ground fault protection.
Q5: Is the GE SSF16G216 suitable for PLC control systems?
A: No. The SSF16G216 is a power protection device, not a PLC module. It is installed in electrical distribution systems rather than automation control racks.
Q6: What are the dimensions and weight of the GE SSF16G216?
A: The approximate dimensions are 430 × 280 × 330 mm, and the weight is about 37 kg (82 lb). Actual values may vary depending on accessories and configuration.
Q7: Can the GE SSF16G216 replace another circuit breaker model?
A: Replacement depends on voltage rating, current rating, mounting method, trip unit configuration, and the existing switchgear design. The complete model specification should be checked before replacement.
Q8: What should be checked before installing the GE SSF16G216?
A: Verify system voltage, load current, breaker frame compatibility, trip settings, wiring connections, and ensure all safety procedures are followed before installation.
