Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 369-HI-R-M-0-0-0-0 |

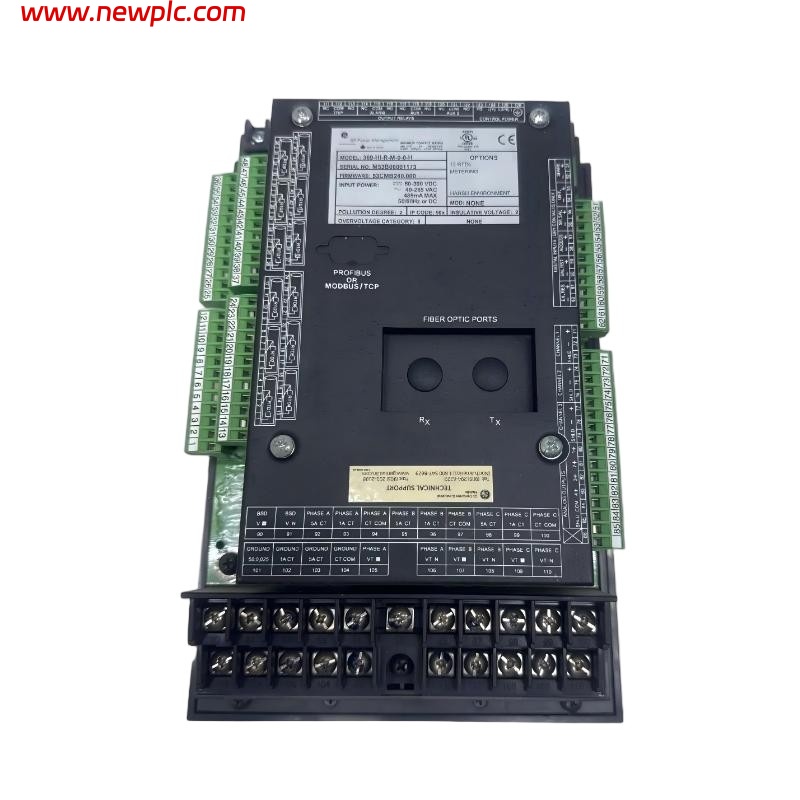

| Product Type | Motor Management Relay |
| Series | 369 Motor Management Relay |
| Primary Function | Protection, control, and monitoring of medium and large motors |
| Control Power Supply | 90–300 V DC / 70–265 V AC |
| Inputs | Current transformer (CT) inputs, digital inputs |
| Outputs | Programmable relay outputs |
| Communication | RS-485 (Modbus RTU) |

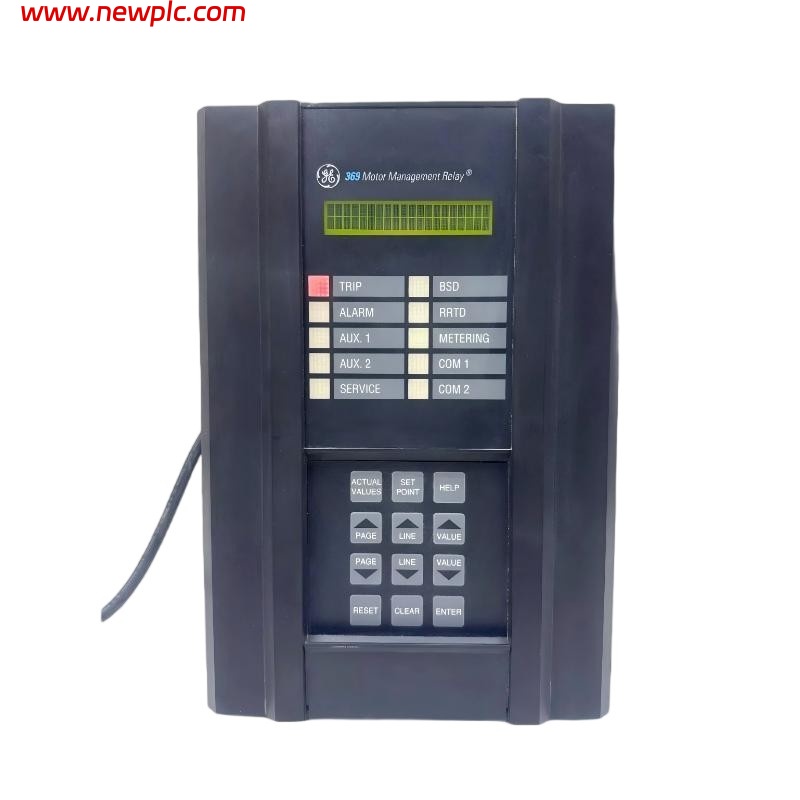

| Display | Front-panel LCD with keypad |
| Protection Functions | Overload, phase loss, ground fault, locked rotor, unbalance |
| Mounting | Panel mount |
| Operating Temperature | -20 °C to +60 °C |
| Dimensions | Approx. 14.5 cm × 14.5 cm × 16.0 cm |
| Weight | Approx. 1.8 kg |
FAQ
FAQ
Q1: What is the 369-HI-R-M-0-0-0-0 used for?
It is a motor management relay designed to protect and monitor medium and large industrial motors.
Q2: What types of protection does it provide?
It offers overload, phase loss, ground fault, locked rotor, and current unbalance protection.
Q3: What control power supply range is supported?
It supports 90–300 V DC or 70–265 V AC control power.
Q4: Does it support communication protocols?
Yes, it supports Modbus RTU via RS-485 communication.
Q5: How is the unit configured?
Configuration is performed through the front-panel LCD and keypad interface.
Q6: What inputs are required for operation?
It uses current transformer (CT) inputs along with programmable digital inputs.
Q7: What are the physical dimensions and weight?
The unit measures approximately 14.5 cm × 14.5 cm × 16.0 cm and weighs about 1.8 kg.
Q8: Where is this relay typically installed?
It is panel-mounted in motor control centers or protection panels.
