Technical Specifications
| Parameter | Specification |
|---|---|

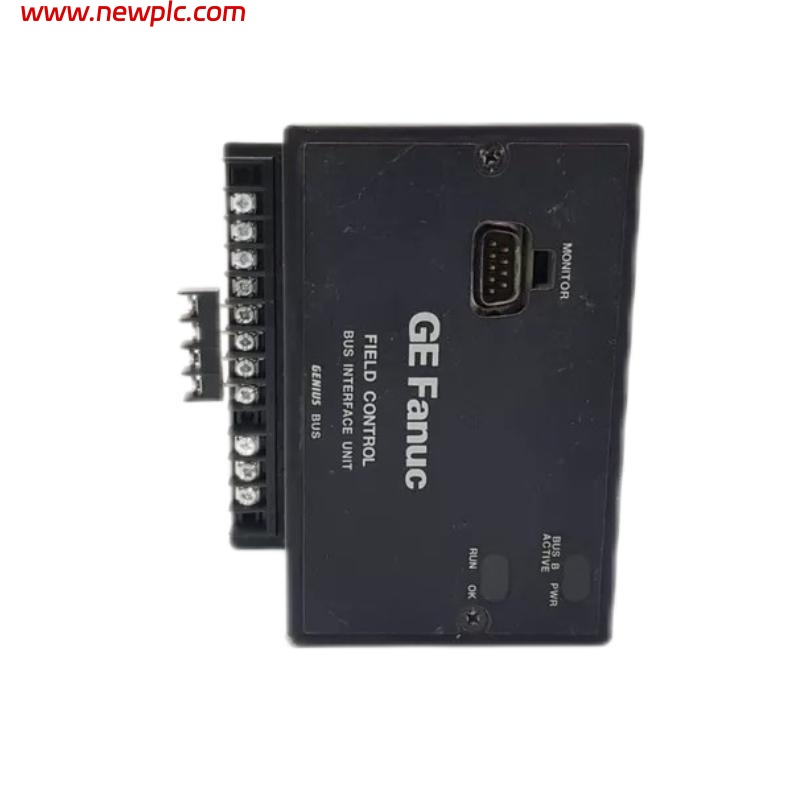

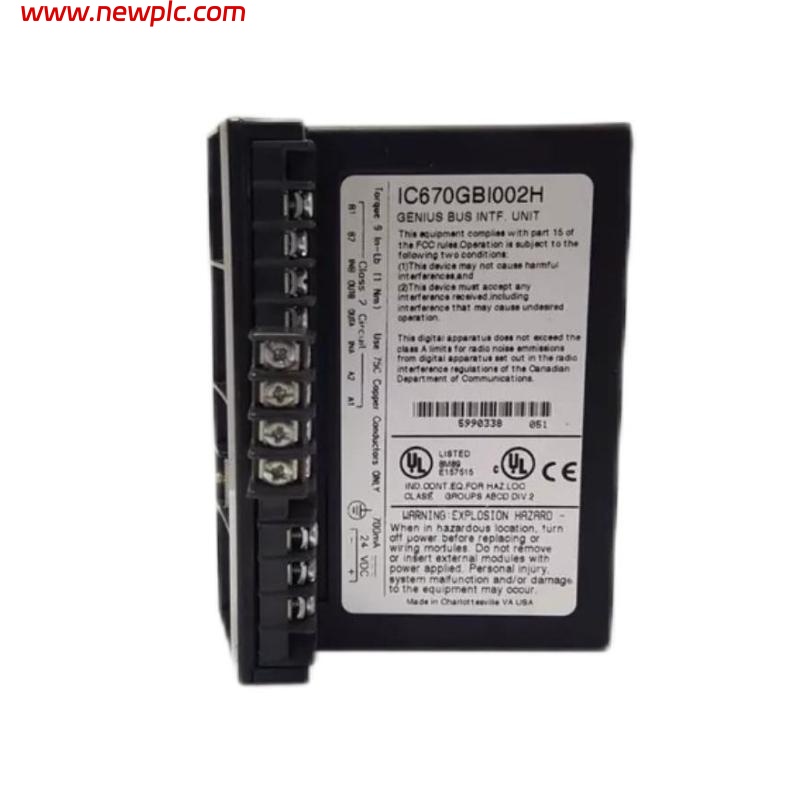

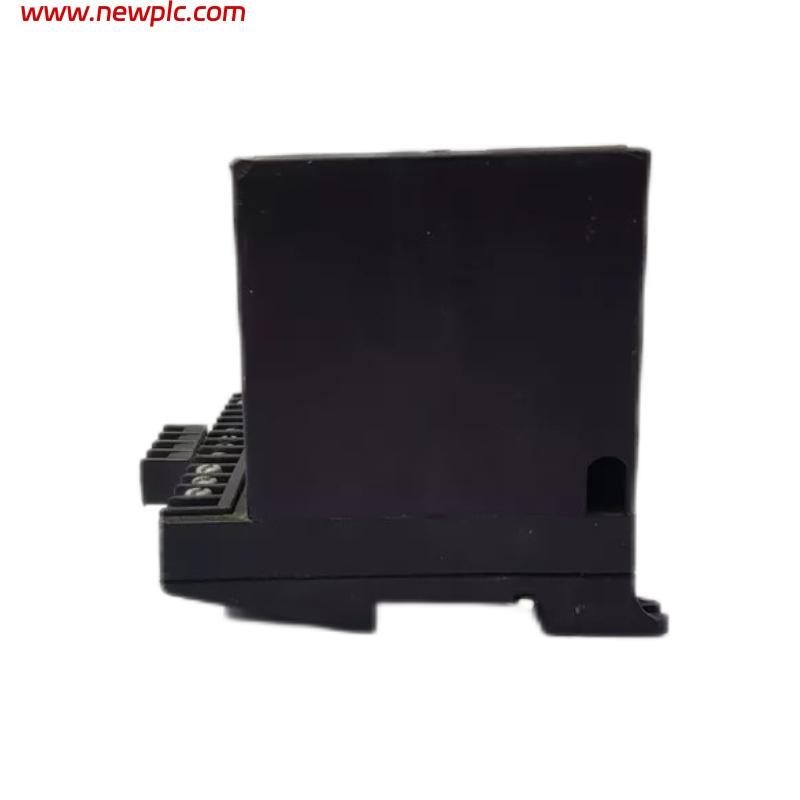

| Model | IC670GBI002 |
| Product Type | Bus Interface Module (Field I/O Interface) |
| Series | GE Fanuc IC670 Field Control I/O |
| Function | Interfaces Field I/O chassis to PLC backplane; communicates I/O data to PLC CPU |
| Communication Backplane | Proprietary GE Fanuc Field Control bus |
| I/O Address Support | Configurable per system firmware |
| Status LEDs | Module OK, I/O Fault indicators |
| Isolation | Optical/electrical isolation between backplane and field I/O |
| Bus Support | Supports up to 32 Field I/O modules on the Infinity bus |
| Operating Temperature | 0 °C to +60 °C (typical industrial) |
| Storage Temperature | –40 °C to +85 °C |
| Mounting | Field I/O chassis mount |
| Power Requirements | Powered from PLC backplane |
| Dimensions | Approx. 107 mm × 90 mm × 30 mm (module form factor) |
| Weight | Approx. 0.22 kg |
FAQ
FAQ
Q1: What is the IC670GBI002 used for?
It is a bus interface module used in GE Fanuc Field Control I/O systems to bridge field I/O chassis and the PLC backplane, passing I/O data between them.
Q2: What type of I/O bus does it support?
It supports the proprietary GE Fanuc Field Control bus that connects Field I/O modules to the system.
Q3: How many Field I/O modules can be connected?
Typically supports up to 32 modules on the Field I/O bus.
Q4: Does it provide status indicators?
Yes, the module has LEDs to show system status and fault conditions.
Q5: Is electrical isolation provided?
Yes, electrical and optical isolation is provided between the backplane and field I/O for signal integrity and safety.
Q6: Where is this module installed?
It is mounted in the Field Control I/O chassis between the bus and I/O modules.
Q7: What are the approximate dimensions and weight?
The module measures about 107 mm × 90 mm × 30 mm and weighs around 0.22 kg.
Q8: What power does this module use?
It is powered directly from the PLC backplane; no separate external supply is needed.
