Technical Specifications
| Parameter | Description |
|---|---|
| Product Model | GE DS200FCSAG1ACB |
| Manufacturer | General Electric (GE) |
| Series | Mark V Speedtronic Control System |

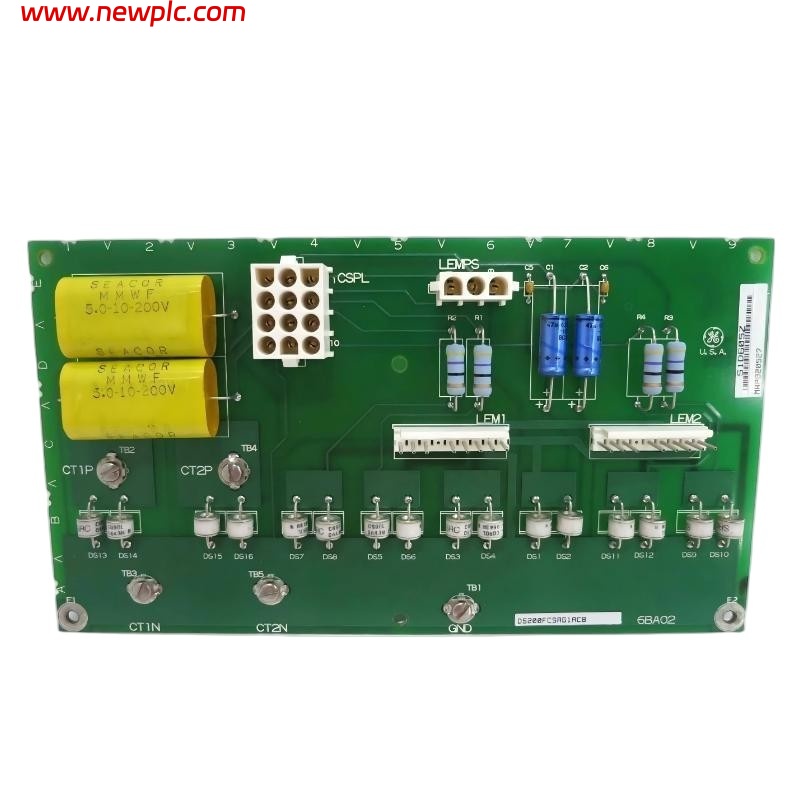

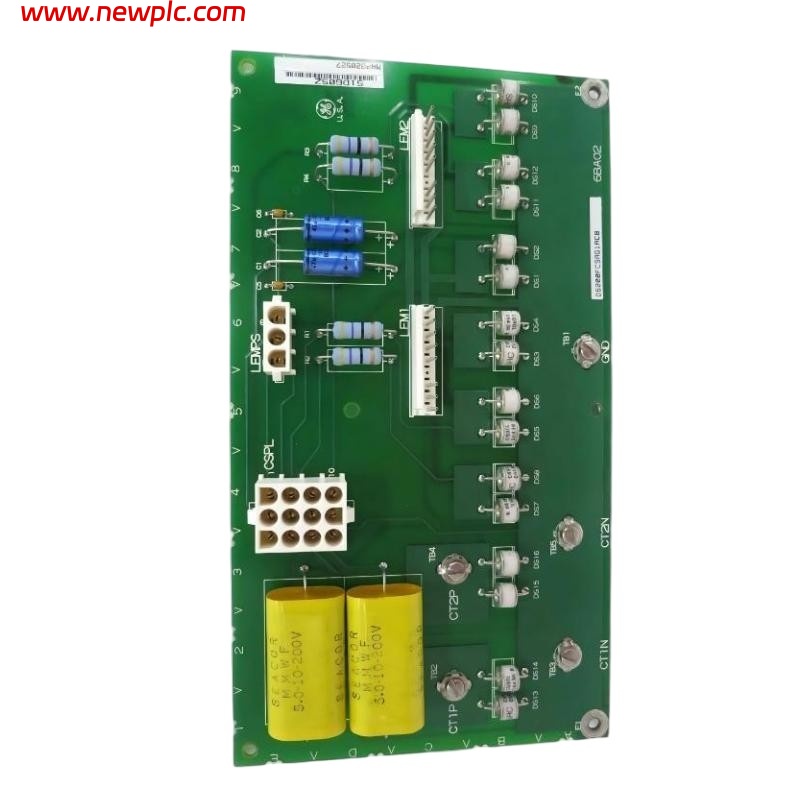

| Product Type | Field Current Sensing Amplifier Board |
| Function | Regulates and monitors generator field current within turbine control systems |
| Application | Steam and gas turbine control panels |
| Input Signal | Field current feedback signal |
| Output Signal | Conditioned current signal for control processor |
| Power Supply | System-powered via Mark V control rack |
| Mounting | Installed in Mark V control cabinet slot |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | -40°C to 85°C |
| Relative Humidity | 5%–95% non-condensing |
| Dimensions | Approx. 30.5 cm × 19.0 cm × 2.5 cm |
| Weight | Approx. 0.9 kg |
FAQ
FAQ
Q1. What is the main function of the GE DS200FCSAG1ACB board?
It measures and conditions field current signals to ensure stable generator excitation control within the Mark V system.
Q2. Which control system uses this board?
It is designed for the GE Mark V Speedtronic turbine control system.
Q3. Is the DS200FCSAG1ACB compatible with Mark VI systems?
No, it is specifically designed for Mark V platforms and is not directly compatible with Mark VI systems.
Q4. Where is the board installed?
It is mounted inside the Mark V control cabinet in the designated slot for field current sensing modules.
Q5. What happens if the board fails?
A failure may lead to inaccurate field current feedback, potentially affecting generator excitation stability and turbine performance.
Q6. Does the board require external power?
No, it receives operating power directly from the Mark V control rack.
Q7. What maintenance is required for this board?
Routine inspection for dust, secure connections, and proper seating in the rack is generally sufficient under normal operating conditions.
Q8. Can this board be repaired, or must it be replaced?
Depending on the fault, it may be repairable by a qualified industrial electronics service provider; otherwise, direct replacement is recommended.
