Technical Specifications
| Parameter | Description |
|---|---|

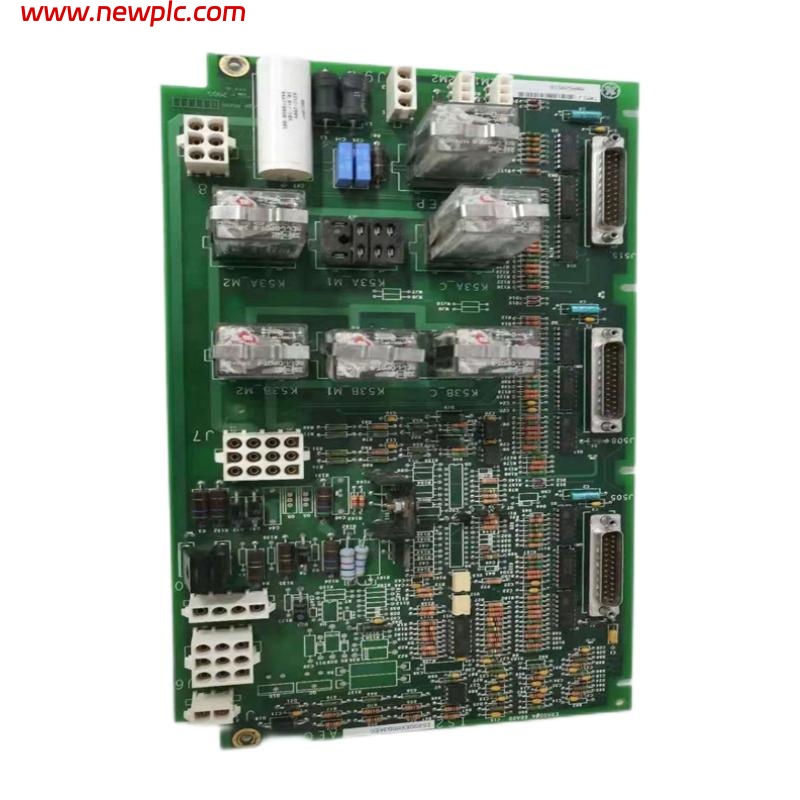

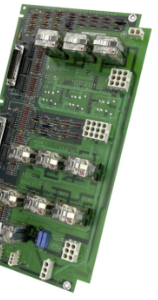

| Product Model | GE IS200EXHSG3AEC |
| Manufacturer | General Electric (GE) |
| Product Type | High-Speed Relay Driver Board |
| Series | Mark VI / EX2100 Excitation Control |
| Functional Role | Drives high-speed relays for excitation and protection functions in generator excitation systems; amplifies low-voltage control signals to robust relay drive outputs while monitoring status. |
| Compatible Systems | GE EX2100 turbine excitation control architecture (Mark VI family). |
| Input Voltage | 24 V DC logic input from controller backplane. |
| Relay Channels | 12 relay output channels with high-speed switching performance. |
| Relay Drive Rating | Up to ~5 A per channel. |
| Relay Contact Rating | ~5 A at 250 V AC (typical). |
| Electrical Isolation | Up to ~2500 V rms isolation between control and power circuits. |
| Communication Interface | GE EISB (internal serial bus) for status/health data. |
| Protection | Overcurrent and short-circuit protection; rugged conformal coating. |
| Operating Temperature | –40 °C to +70 °C typical industrial range. |
| Storage Temperature | –55 °C to +85 °C (industry standard range). |
| Humidity | 5 %–95 % non-condensing operating humidity. |
| Mounting | Board installed inside EX2100/Mark VI excitation control rack. |
| Dimensions | 82.6 mm × 41.9 mm × 121 mm (approx. 8.26 cm × 4.19 cm × 12.1 cm). |
| Weight | ~0.3 kg (300 g). |
| Compliance | Designed for rugged industrial turbine excitation environments. |
FAQ
FAQ
Q1. What is the GE IS200EXHSG3AEC used for?
It is a high-speed relay driver board that drives and monitors relays for excitation, protection, and actuator control in GE EX2100 turbine excitation systems.
Q2. In which systems is this module compatible?
The module is designed for GE EX2100 and Mark VI excitation control systems.
Q3. What kind of signals does this board handle?
It accepts logic-level 24 V DC inputs and provides robust relay drive outputs for contactors and protective relays.
Q4. How many relay channels are supported?
The board supports 12 high-speed relay output channels.
Q5. What are the module’s physical dimensions and weight?
It measures approximately 82.6 mm × 41.9 mm × 121 mm and weighs about 0.3 kg.
Q6. What environmental conditions can this board operate in?
It typically operates from –40 °C to +70 °C with standard industrial humidity tolerance.
Q7. Does this board include isolation and protection features?
Yes, it has high electrical isolation (approx. 2500 V rms) and built-in overcurrent/short-circuit protection.
Q8. How does it report status or health?
It communicates diagnostic and status information over the GE internal serial bus (EISB) to the controller system.
