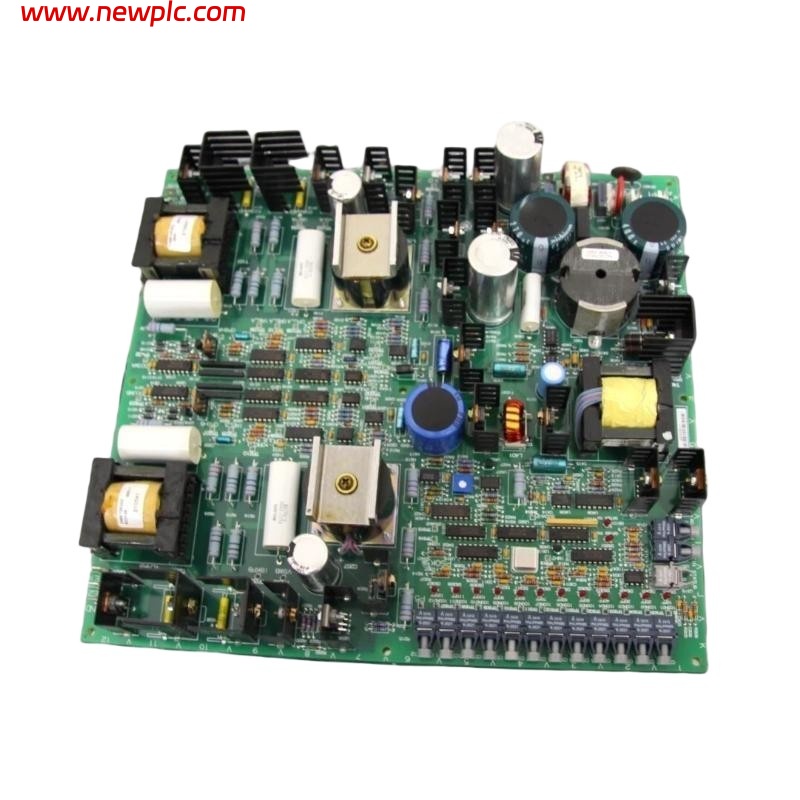

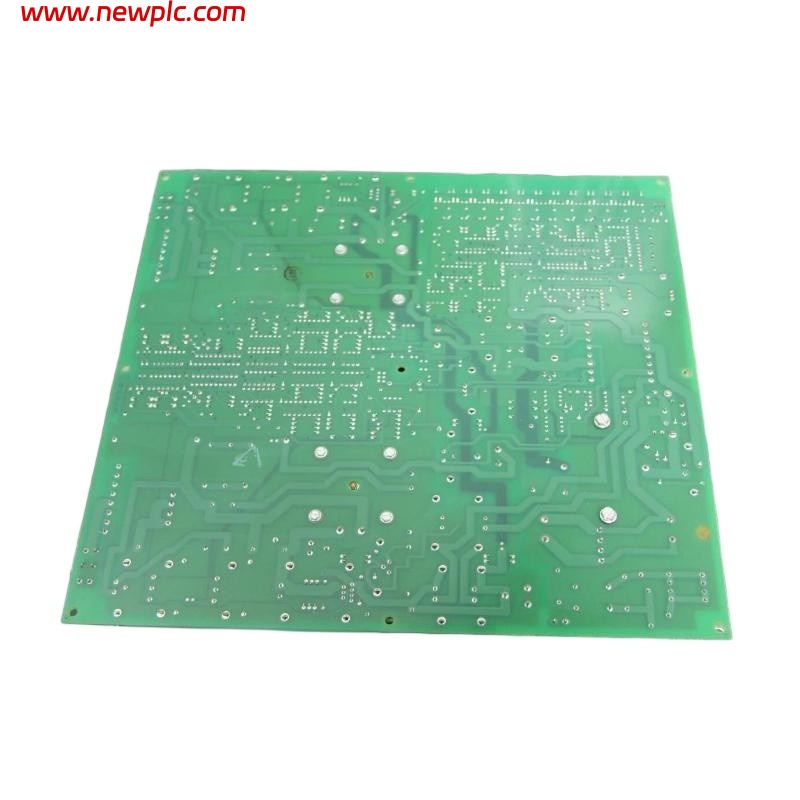

GE DS200FGPAG1AGD Gate Pulse Amplifier Board

FAQ

Q1. What is the DS200FGPAG1AGD?
It’s a gate pulse amplifier board that amplifies and conditions gate drive signals for SCRs in industrial control systems.

Q2. What supply voltage does this board require?
It requires a 120 Vrms AC input for power.

Q3. How many gate driver circuits are on the board?
There are two independent gate driver circuits.

Q4. How does the board interface with other system modules?
It uses 15 fiber‑optic connectors (1 transmitter and 14 receivers).

Q5. What is the purpose of the test points?
The 30 test points help with monitoring gate A, gate B, and SCR cell status for troubleshooting.

Q6. What are the physical dimensions?
The board measures approximately 380 mm × 235 mm × 90 mm.

Q7. How heavy is the DS200FGPAG1AGD?
It weighs about 0.5 kg (approximately 500 g).

Q8. Where is this board typically used?
It’s used in turbine control and excitation systems to provide reliable SCR gate drive amplification and status monitoring.
