Technical Specifications
| Parameter | Specification |
|---|---|
| Model | GE DS200PTBAG1BBA |

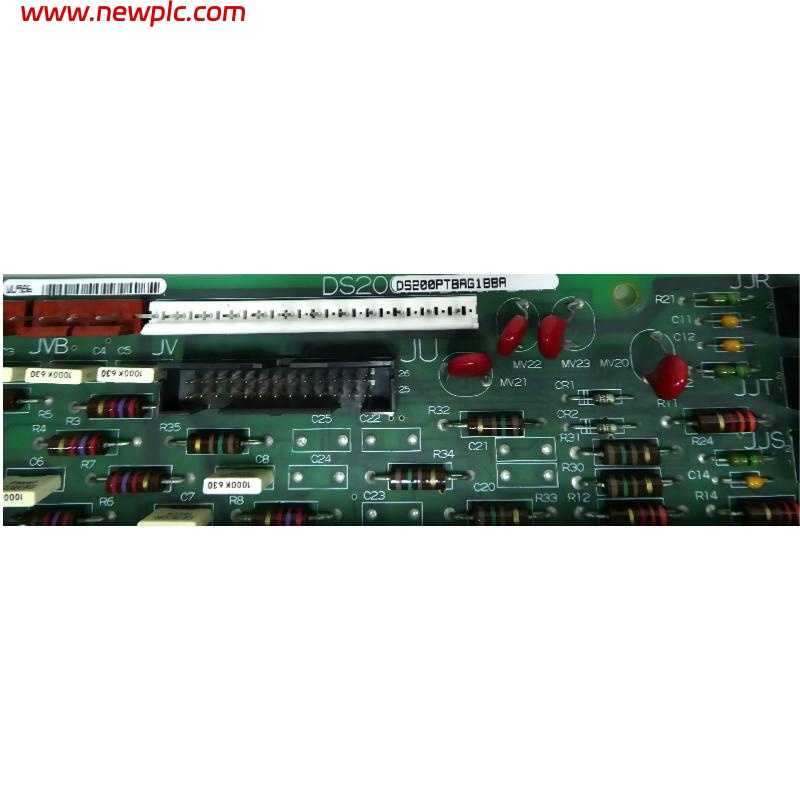

| Product Type | Mark V Termination Board |
| System Series | GE Mark V Control System |
| Primary Function | Signal termination and field wiring interface |
| Supported Signal Types | Analog and digital inputs/outputs |
| I/O Interface | Terminal blocks with screw connections |
| Electrical Isolation | Designed per Mark V system requirements |
| Mounting Method | Panel or control cabinet mounting |
| Cable Interface | Shielded multi-core field cables |
| Operating Voltage | As specified by Mark V backplane |
| Environmental Protection | Conformal coating on selected revisions |
| Diagnostic Support | Pass-through signal paths for system-level monitoring |
| Connector Type | Multi-pin edge and terminal connectors |
| Typical Applications | Turbine control, protection, and monitoring |
| Dimensions (W × H × D) | 260 × 100 × 25 mm |
| Weight | 0.39 kg |
FAQ
FAQ
Q1: What is the role of the DS200PTBAG1BBA in a Mark V system?
A1: It serves as the interface between field devices and the control system by terminating signals in an organized manner.
Q2: Can this board handle both analog and digital signals at the same time?
A2: Yes, it is designed to route and terminate mixed I/O types within one assembly.
Q3: Is special configuration required when replacing this board?
A3: No software configuration is typically required, but wiring should follow the original terminal layout exactly.
Q4: Does the board provide surge or noise protection?
A4: It relies on system grounding and cabinet design, with optional shielding support through terminal layout.
Q5: Can wiring be modified without affecting the control logic?
A5: Yes, the board only handles physical termination; logic is processed in the controller hardware.
Q6: Is it compatible with all Mark V panels?
A6: It is intended for specific Mark V panel designs and should be matched by part number.
Q7: Does this board include any active electronic components?
A7: No, it is primarily a passive termination assembly.
Q8: What is the main risk when installing a replacement board?
A8: Incorrect wire placement, which can lead to signal mismatch or control faults.
