Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | General Electric |
| Model Number | DS200TBCBG1AAA |

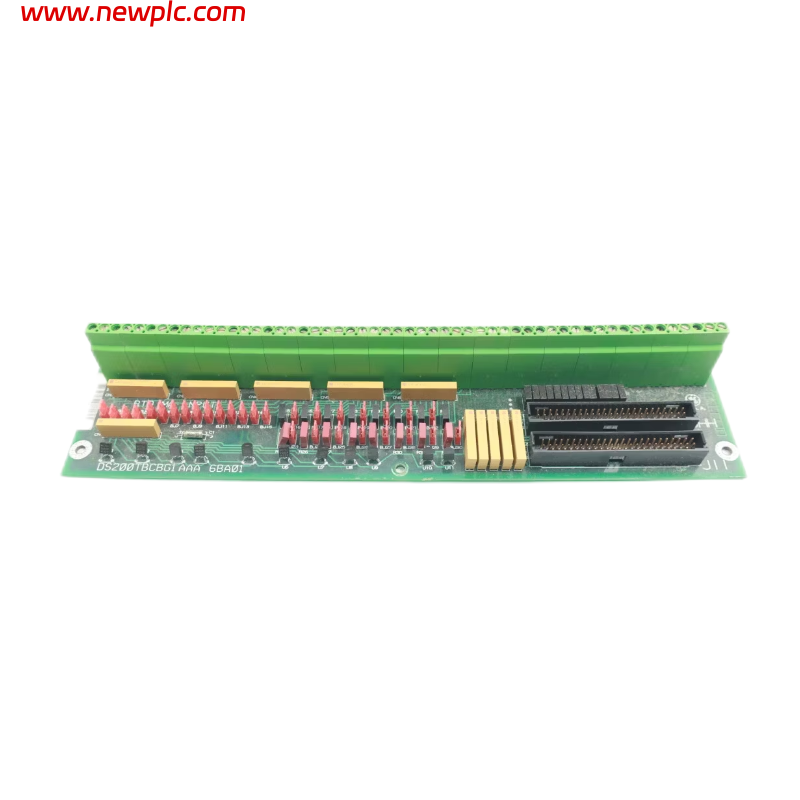

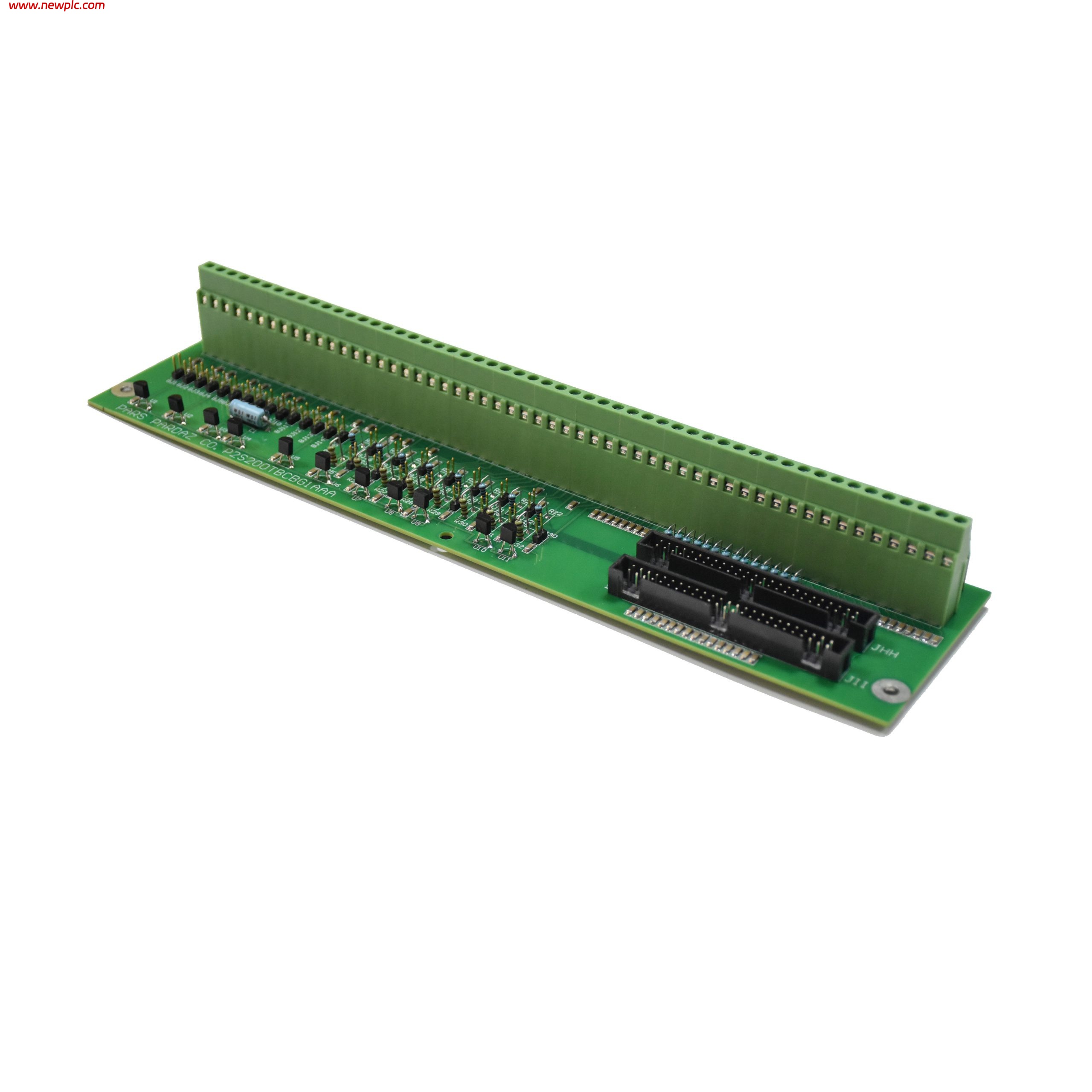

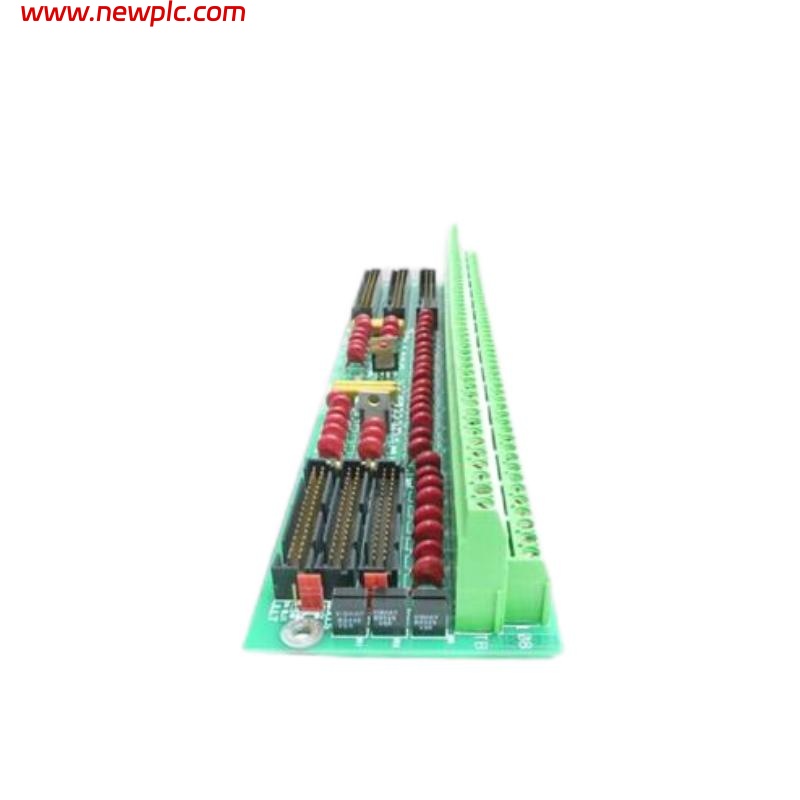

| Product Type | Analog Input Termination Board (TBCB) |
| Series | Speedtronic Mark V (DS200 series) |
| Function | Terminates and conditions analog input signals (e.g., RTD and 4–20 mA) for turbine control systems |
| Supported Signals | 4–20 mA current input; RTD inputs (e.g., PT100/PT1000) |
| Configuration | Jumper‑selectable input mode (voltage or current) |
| Power Requirements | Typically +5 V DC supply (6 A) for internal analog signal electronics |
| Connectors | High‑density terminal blocks and vertical pin headers for signal wiring |
| Backplane Interface | Rack‑mount printed circuit board for Mark V control cabinet integration |
| Operating Temperature | Typical industrial range (e.g., −20 °C to +70 °C) |
| Storage Temperature | Standard PCB storage range |
| Humidity | 5 % – 95 % non‑condensing |
| PCB Coating | Standard protective coating |
| Revisions | 3 revisions; first two backward compatible |
| Dimensions (approx.) | 130 mm × 85 mm × 180 mm |
| Weight | ~0.8 kg |
| Status | Legacy Mark V industrial control board |
FAQ
FAQ
Q1. What is the DS200TBCBG1AAA board used for?
It is an analog input termination board that receives and conditions signal inputs such as 4–20 mA and RTD sensor inputs in GE Mark V turbine control systems.
Q2. Which control system series is this part compatible with?
It is designed for the Speedtronic Mark V (DS200 series) turbine control platform.
Q3. What kinds of signals can this module handle?
It supports standard 4–20 mA current inputs and RTD (resistance temperature detector) signals.
Q4. How is the DS200TBCBG1AAA configured?
It uses jumper switches to select between voltage and current input modes for appropriate signal conditioning.
Q5. Does it require a separate power supply?
Yes — the board typically uses a +5 V DC supply (around 6 A) for its internal electronics.
Q6. What are the approximate physical dimensions of this board?
The board is approximately 130 mm × 85 mm × 180 mm in size.
Q7. How much does the DS200TBCBG1AAA weigh?
It weighs about 0.8 kg.
Q8. Is this component still manufactured by GE?
No — it is a legacy component from the Mark V series and is generally available as surplus or refurbished stock rather than new production.
