Technical Specifications
| Parameter | Specification |
|---|---|

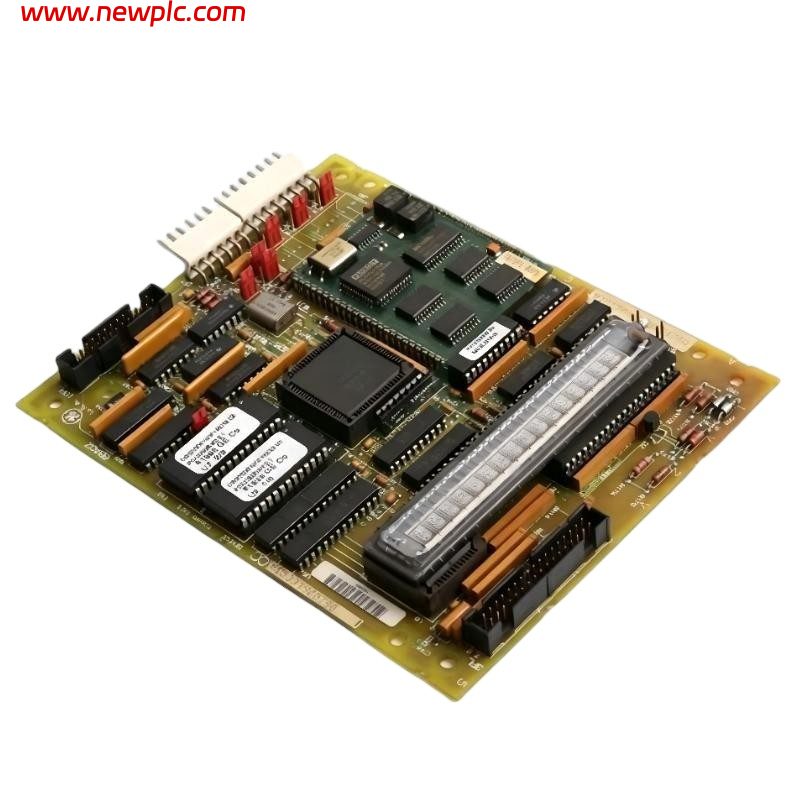

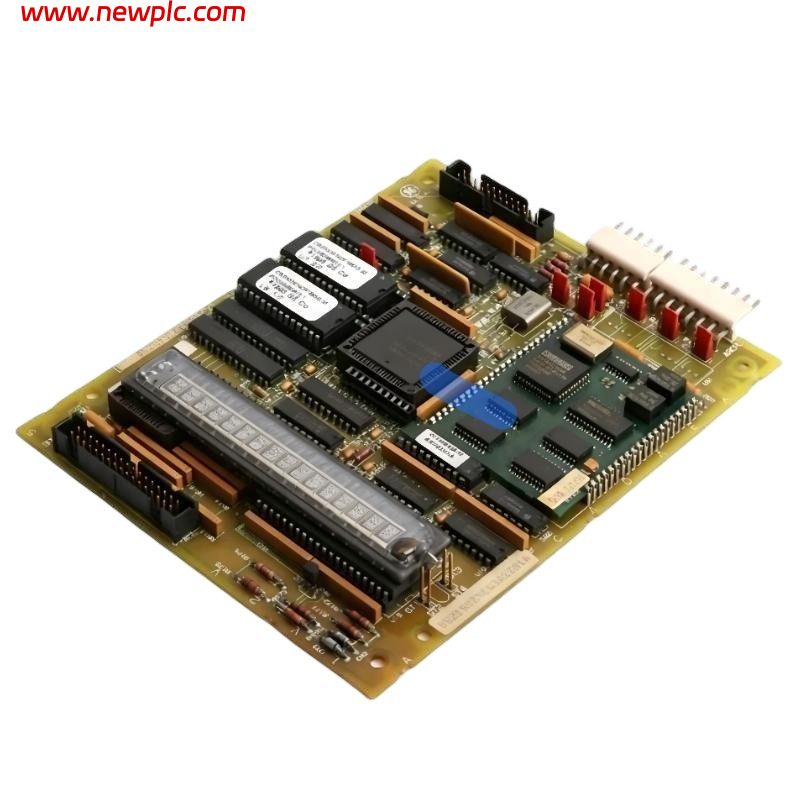

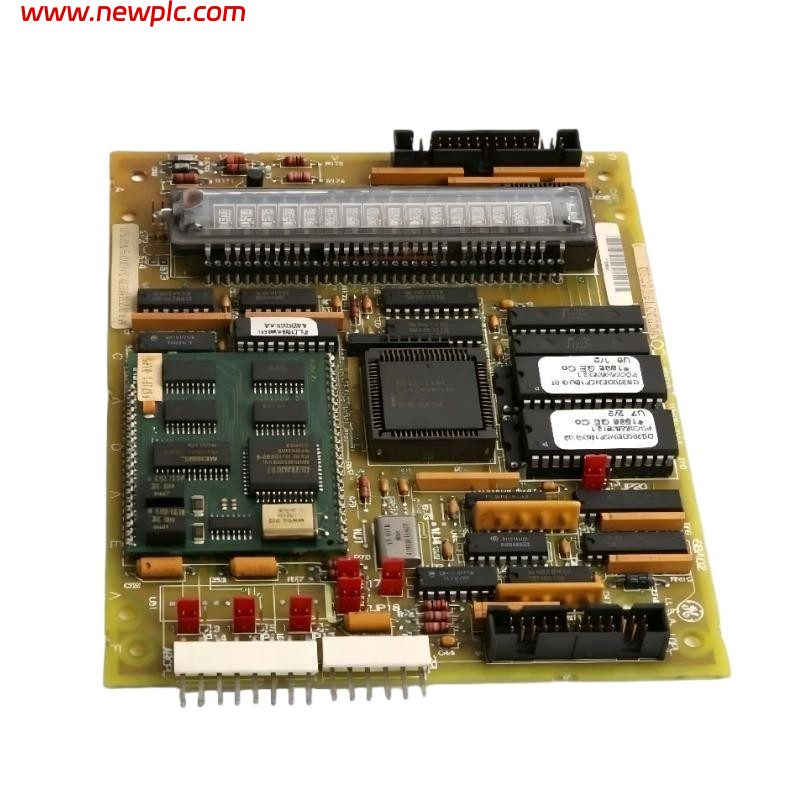

| Part Number | DS215DENCG3AZZ01A |
| Manufacturer | GE (General Electric) |
| Series | Mark V Speedtronic™ |
| Functional Acronym | DENC |
| Product Type | Encoder Interface Board |
| Function | Processes encoder and speed feedback signals for turbine and drive control |
| Application | Gas turbine, steam turbine, and industrial drive control systems |
| Input Signals | Incremental encoder / pulse feedback inputs |
| Communication | High-speed interface to Mark V control processors |
| Diagnostic Features | Built-in signal monitoring and fault detection |
| Firmware | AZZ01A firmware package |
| PCB Revision | G3 Hardware Revision |
| Mounting Type | Control Rack PCB |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5–95% non-condensing |
| Dimensions (L × W × H) | 262 × 188 × 21 mm |
| Weight | 0.3–0.5 kg |
FAQ
FAQ
Q1: What is the primary function of DS215DENCG3AZZ01A?
It acquires and processes encoder feedback signals for speed and position measurement in control systems.
Q2: Which GE platform uses this board?
It is used within GE Mark V Speedtronic turbine and drive control architectures.
Q3: What types of signals does it handle?
Incremental encoder pulses and other rotational feedback signals.
Q4: What does the AZZ01A suffix mean?
It identifies a specific GE firmware and configuration package for the board.
Q5: Is this a processor board?
No. It is primarily an encoder feedback interface board that works with Mark V control processors.
Q6: What applications commonly use this module?
Gas turbines, steam turbines, generators, and industrial drive systems requiring precise speed feedback.
Q7: What are the dimensions of DS215DENCG3AZZ01A?
Approximately 262 × 188 × 21 mm.
Q8: What is the weight of DS215DENCG3AZZ01A?
Approximately 0.3–0.5 kg.
