Technical Specifications
| Parameter | Specification |
|---|---|

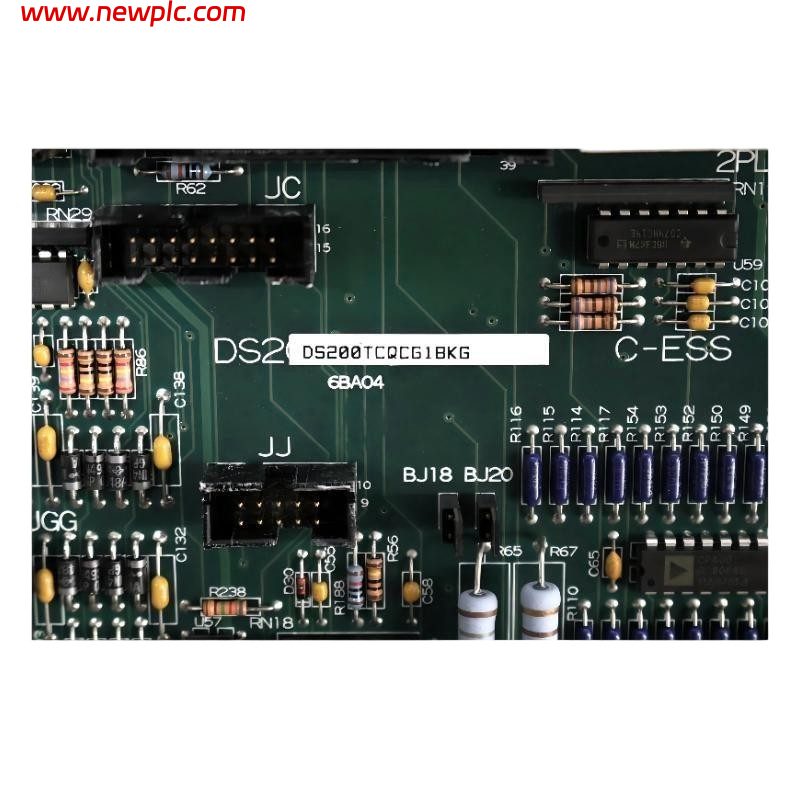

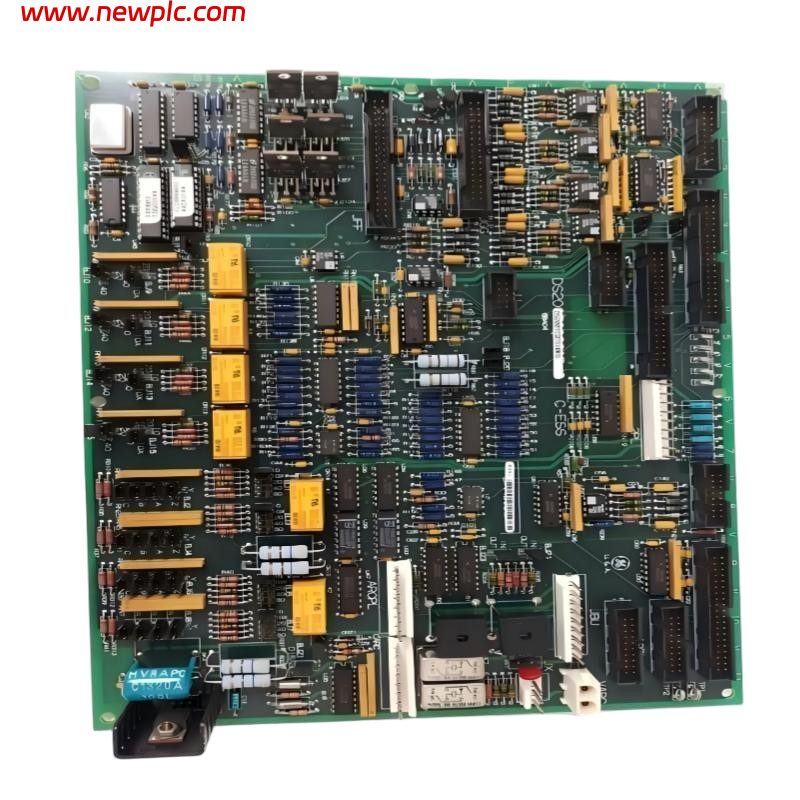

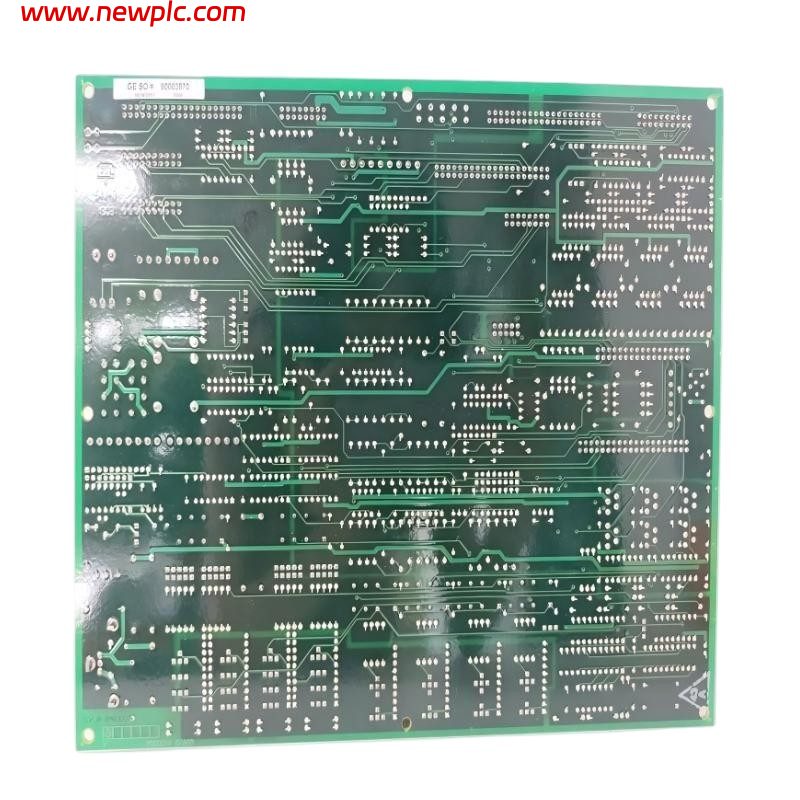

| Part Number | DS200TCQCG1BKG |
| Manufacturer | GE (General Electric) |
| Series | Mark V Speedtronic™ |
| Functional Acronym | TCQC |
| Product Type | RST (R, S, T) Processor Board |
| Function | Core turbine control processing, I/O management, and communication |
| Processor | Intel 80486DX2 Microprocessor |
| Memory | RAM, Flash Memory, EPROM |
| Communication Interfaces | IONET, ARCNET, Serial Interfaces |
| System Role | Main controller in R, S, or T control cores |
| Application | Gas turbine and steam turbine control systems |
| Diagnostics | Built-in self-test and fault monitoring |
| Power Supply | Internal Mark V system power |
| Mounting Type | Control Rack PCB |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5–95% non-condensing |
| Dimensions (L × W × H) | 343 × 266 × 35 mm |
| Weight | 1.2–1.8 kg |
FAQ
FAQ
Q1: What is the main function of DS200TCQCG1BKG?
It serves as the main processor board for Mark V turbine control systems.
Q2: Which GE platform uses this board?
The board is designed for the GE Mark V Speedtronic™ system.
Q3: What processor is installed on the board?
An Intel 80486DX2 microprocessor is used for control and communication functions.
Q4: What communication networks are supported?
The board supports IONET, ARCNET, and serial communication interfaces.
Q5: Is this an I/O board?
No. It is primarily a processor/controller board, although it manages system I/O communications.
Q6: What applications use this module?
Gas turbines, steam turbines, and other industrial turbine control systems.
Q7: What are the dimensions of DS200TCQCG1BKG?
Approximately 343 × 266 × 35 mm.
Q8: What is the weight of DS200TCQCG1BKG?
Approximately 1.2–1.8 kg.
