Technical Specifications
| Parameter | Specification |
|---|---|
| Part Number | DS200TCPDG1BEC |
| Manufacturer | GE (General Electric) |
| Series | Mark V Speedtronic™ |
| Functional Acronym | TCPD |

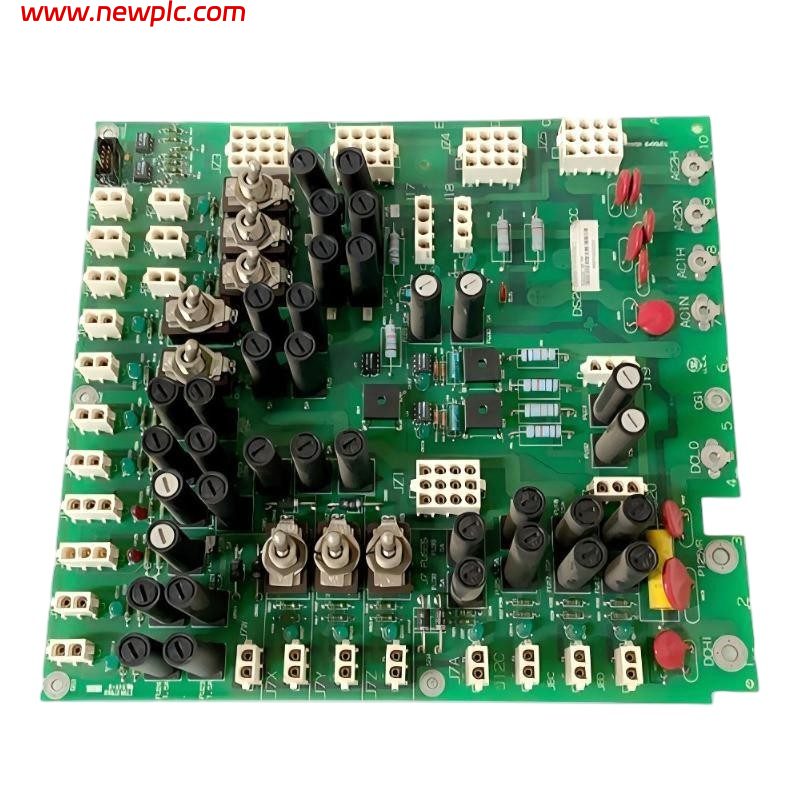

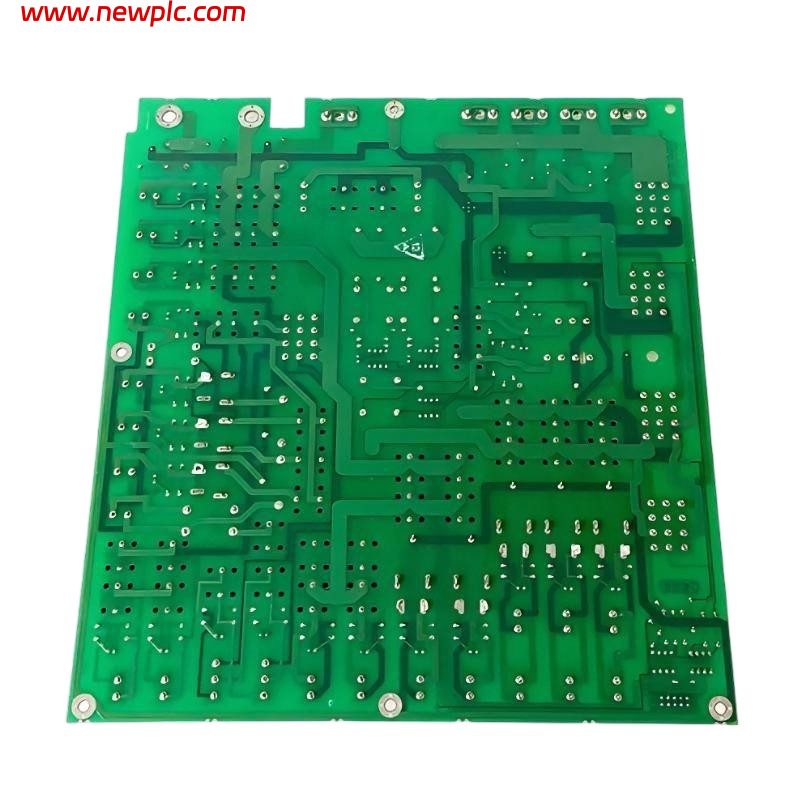

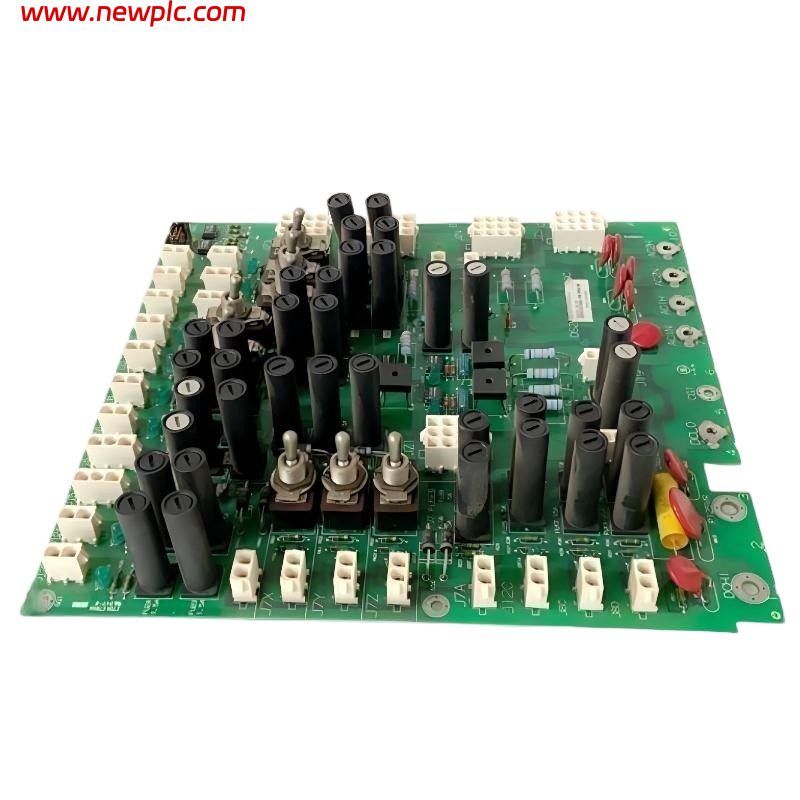

| Product Type | DC Power Distribution Board / Power Distribution Module |
| Function | Distributes and protects DC power for Mark V control system components |
| System Application | Gas turbine and steam turbine control systems |
| Input Voltage | Nominal 125 VDC |
| Power Distribution | Supplies regulated power to SDCC and other Mark V control boards |
| Fuses | 36 fused circuits |
| LED Indicators | 36 fuse status LEDs |
| Toggle Switches | 8 toggle switches |
| Signal Terminals | 4 signal wire terminals |
| Connector | 1 × 10-pin connector |
| Protection Features | Replaceable fuses, overcurrent protection, status monitoring LEDs |
| PCB Coating | Standard / Normal coating (BEC revision) |
| Mounting Type | Mark V Control Cabinet PCB |
| Operating Temperature | -20°C to +60°C |
| Dimensions (L × W × H) | Approximately 343 × 266 × 35 mm |
| Weight | Approximately 0.68–1.5 kg (revision and source dependent) |
FAQ
FAQ
Q1: What is the main function of DS200TCPDG1BEC?
It distributes and protects DC power for the Mark V turbine control system.
Q2: Which GE platform uses this board?
The board is designed for the GE Mark V Speedtronic control system.
Q3: How many fuses are installed on the board?
It contains 36 replaceable fuses.
Q4: Does the board provide fuse monitoring?
Yes, each fuse is associated with a dedicated status LED.
Q5: How many toggle switches are available?
The board includes 8 toggle switches for configuration and control.
Q6: What input voltage does it typically use?
The board is designed around a 125 VDC nominal power source.
Q7: What are the dimensions of DS200TCPDG1BEC?
Approximately 343 × 266 × 35 mm.
Q8: What is the weight of DS200TCPDG1BEC?
Typically 0.68–1.5 kg, depending on hardware revision and configuration.
