Technical Specifications
| Item | Specification |
|---|---|
| Model | DS200SDCCG4AGD |

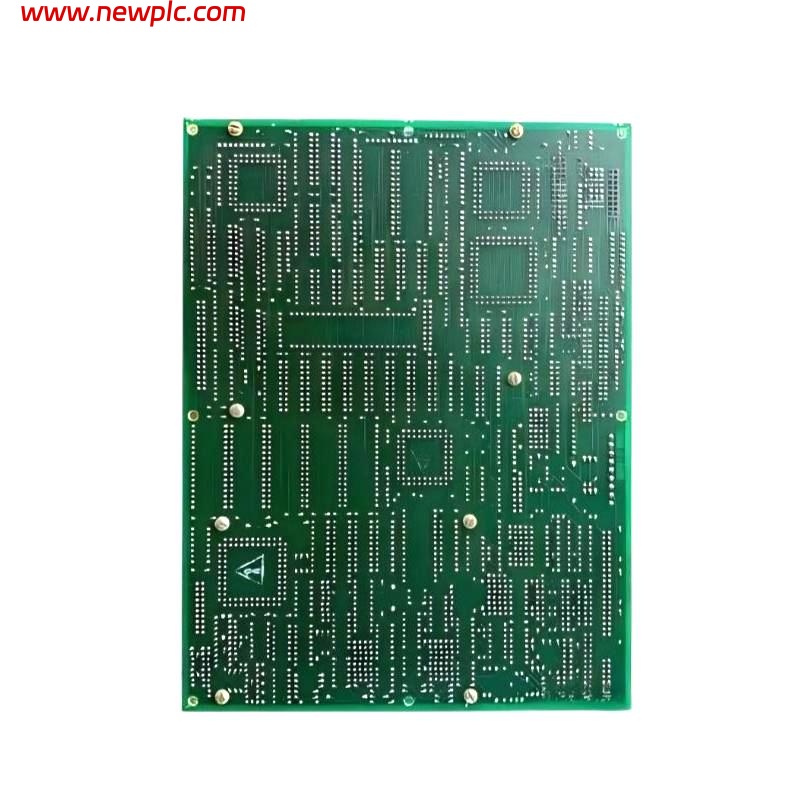

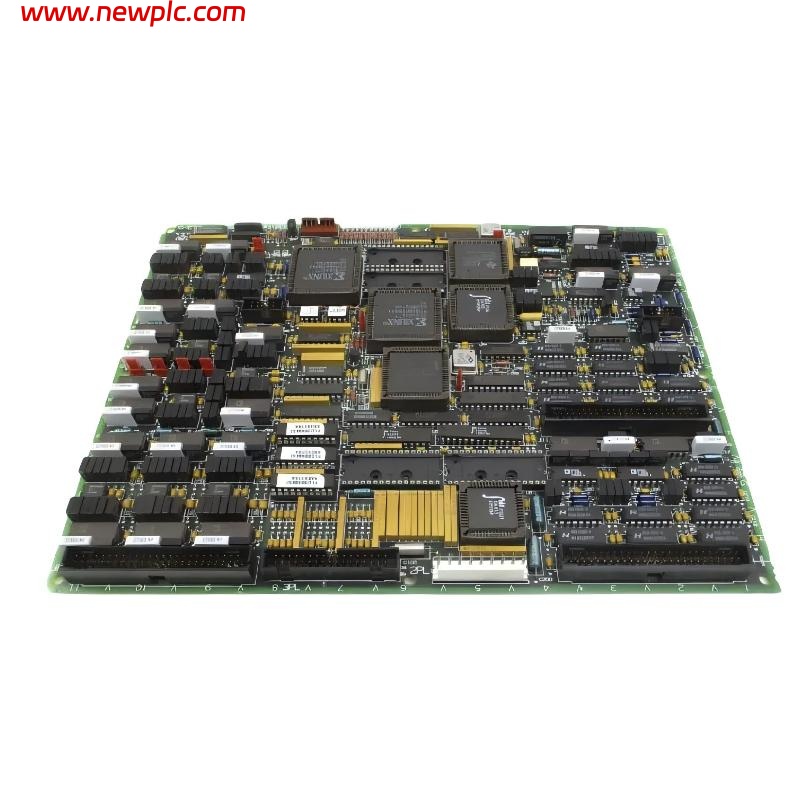

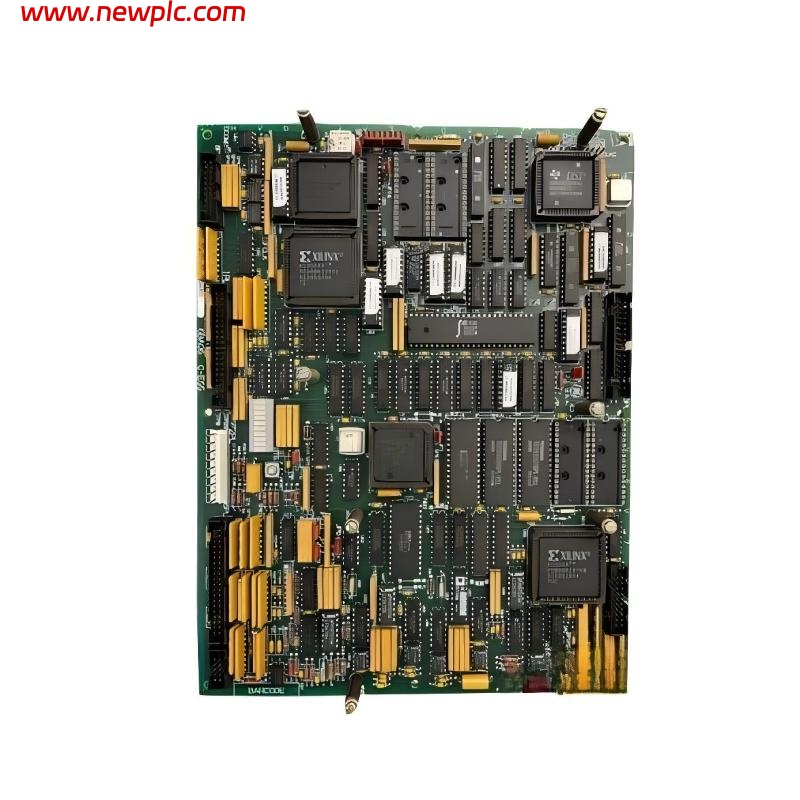

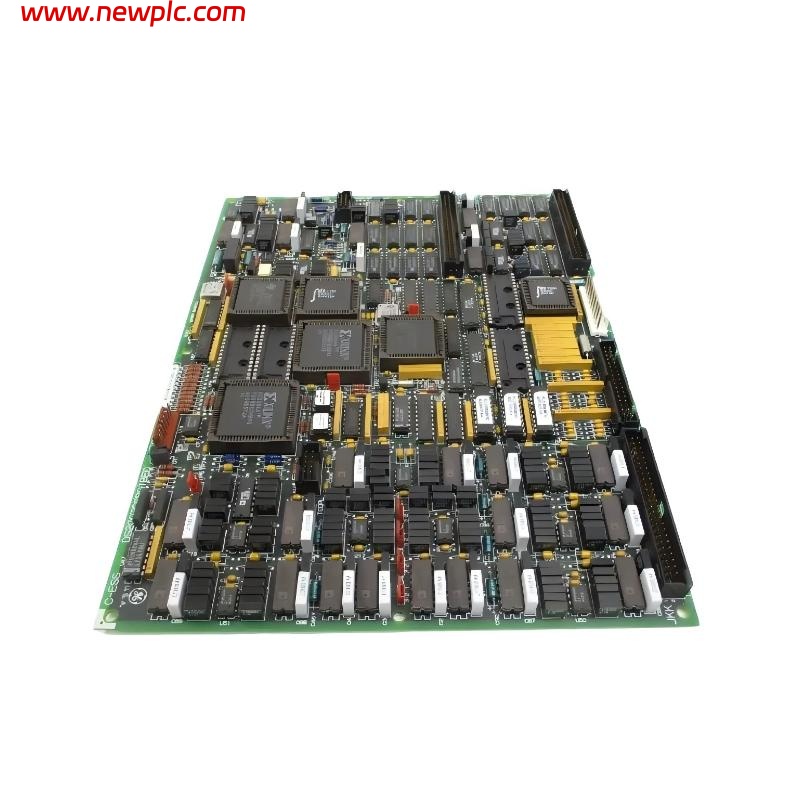

| Product Type | Mark V Drive Control Board |
| Compatible System | GE Mark V |
| Function | Core drive control logic, signal processing, system coordination |
| Input Signals | Analog inputs, digital inputs, speed feedback, external references |
| Output Signals | Drive control commands, regulation outputs, status feedback |
| Processing Unit | Integrated logic and control processor |
| Communication Interface | Backplane data interface |
| Power Supply | Powered through system backplane |
| Protection Features | Signal isolation, noise immunity, self-monitoring |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Installation | Standard rack slot mounting |
| Applications | Motor control, drive regulation, system coordination |
| Dimensions | 330 × 220 × 25 mm |
| Weight | 0.45 kg |
FAQ
FAQ
Q: What is the main function of the DS200SDCCG4AGD board?
A1: It performs drive signal processing, control logic execution, and system coordination.
Q: Does this board require an independent power supply?
A2: No, it is powered directly from the backplane.
Q: What precautions are needed during installation?
A3: Power must be turned off, and connectors must be properly seated.
Q: Can it replace other SDCC board versions?
A4: Some versions may be interchangeable, but compatibility must be confirmed.
Q: Is this board hot-swappable?
A5: No, hot-swapping can cause damage.
Q: What happens if the board fails?
A6: Drive anomalies, alarms, or control interruption may occur.
Q: Does it include programmable components?
A7: It contains logic processors but does not support user programming.
Q: What routine maintenance is required?
A8: Check connectors regularly, keep the cabinet clean, and avoid static discharge during handling.
